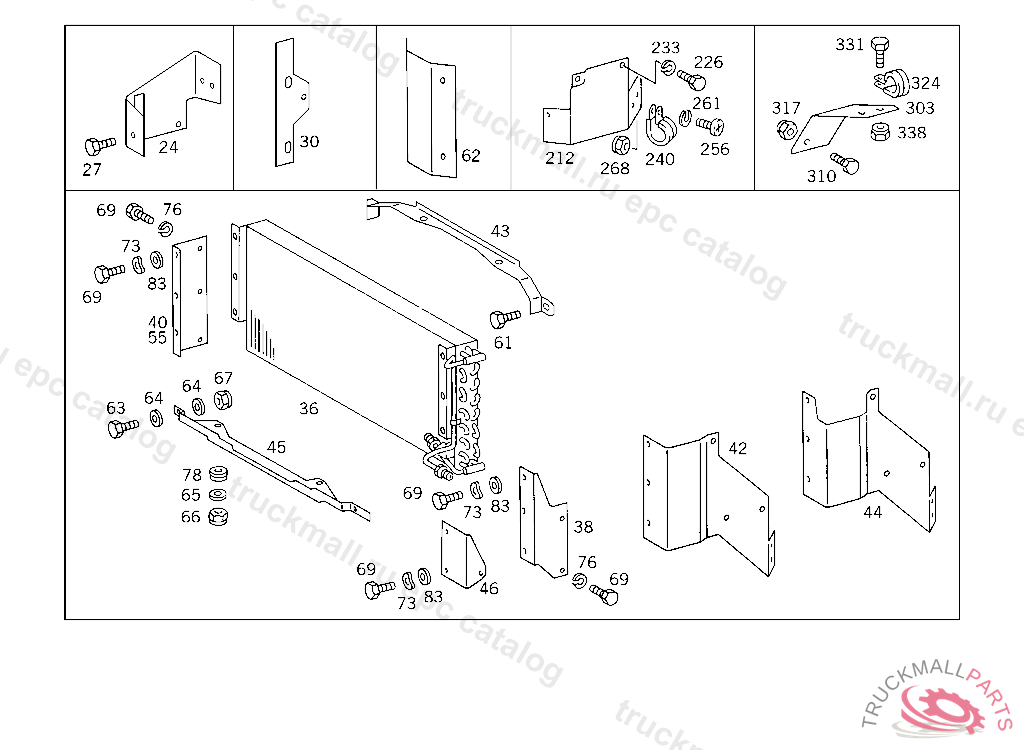

Поз.
Артикул
Описание
24
BRACKET RADIATOR MOUNTING,BOTTOM
27
SCREW , Replaced By: N304017006020
27
SCREW LICENSE PLATE TO BRACKET
30
BRACKET
30
BRACKET
36
CONDENSER AIR CONDITIONER,5 424631
36
CONDENSER AIR CONDITIONER,5 424630
36
CONDENSER AIR CONDITIONER
36
CONDENSER AIR CONDITIONER
36
CONDENSER AIR CONDITIONER
36
CONDENSER AIR CONDITIONER
38
BRACKET CONDENSER TO RADIATOR,5 010994
38
BRACKET CONDENSER TO RADIATOR,5 010993
40
BRACKET CONDENSER TO RADIATOR,5 010994
40
BRACKET CONDENSER TO RADIATOR,5 010993
42
BRACKET CONDENSER TO RADIATOR
42
BRACKET CONDENSER TO RADIATOR
43
BRACKET CONDENSER TO RADIATOR
44
ANGLE CONDENSER TO RADIATOR,5 424631
45
BRACKET CONDENSER TO RADIATOR
46
BRACKET CONDENSER TO RADIATOR
55
ANGLE CONDENSER TO RADIATOR,5 424631
55
BRACKET CONDENSER TO RADIATOR
55
BRACKET CONDENSER TO RADIATOR
61
SCREW PIPE CLAMP
61
SCREW , Replaced By: N304017008021
62
ANGLE CONDENSER TO RADIATOR
63
SCREW PIPE CLAMP
63
SCREW PIPE CLAMP
63
SCREW , Replaced By: N304017008021
64
WASHER SUPPORTING RAIL TO SUPPORT,5 429712
65
WASHER COMPRESSED AIR LINE TO BRACKET
65
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
66
NUT PUMP TO BRACKET
66
NUT , Replaced By: N913004006001
67
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
67
NUT , Replaced By: N913004008001
69
SCREW COVER PLATE TO COVER PLATE M 6 X 12
69
SCREW COVER PLATE TO COVER PLATE M 6 X 12
69
SCREW , Replaced By: N304017006018
69
SCREW PUMP TO BRACKET
69
SCREW PUMP TO BRACKET
69
SCREW , Replaced By: N304017006016
73
SPRING WASHER LICENSE PLATE TO BRACKET
76
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
76
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
78
GROMMET CONDENSER TO BRACKET
83
WASHER COMPRESSED AIR LINE TO BRACKET
83
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
212
BRACKET HOSE TO RADIATOR
226
SCREW , Replaced By: N304017006016
226
SCREW PUMP TO BRACKET
233
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
240
CLAMP HOSE TO FLANGE AND TO VALVE
240
CLAMP HOSE TO FLANGE AND TO VALVE
240
CLAMP DELIVERY AND SUCTION LINES TO FRAME, Replaced By: N916016022203
240
CLAMP DELIVERY AND SUCTION LINES TO FRAME
240
CLAMP FRAME MOUNTED CABLE HARNESS AND BATTERY CABLE TO BRACKET
240
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
240
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
240
CLAMP PIPE ON FAN SHROUD
240
CLAMP PIPE ON FAN SHROUD
256
SCREW , Replaced By: N000000001146
256
SCREW CLAMP MOUNTING M 6X16
256
SCREW , Replaced By: N304017006016
256
SCREW PUMP TO BRACKET
256
SCREW CAB FLOOR COVERING M 6X25
256
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
256
SCREW , Replaced By: N304017008021
256
SCREW PIPE CLAMP
261
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
261
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
268
NUT , Replaced By: N913004006001
268
NUT PUMP TO BRACKET
268
NUT , Replaced By: N913004008001
268
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
303
BRACKET HOSE TO CROSS MEMBER,5 206398
310
SCREW PIPE CLAMP
310
SCREW , Replaced By: N304017008021
317
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
317
NUT , Replaced By: N913004008001
324
CLAMP HOSE TO FLANGE AND TO VALVE
331
SCREW CAB FLOOR COVERING M 6X25
331
SCREW PUMP TO BRACKET
331
SCREW , Replaced By: N304017006016
338
NUT PUMP TO BRACKET
338
NUT PUMP TO BRACKET
338
NUT , Replaced By: N913004006001
999
BRACKET HOSE TO RADIATOR
999
BRACKET REFRIGERANT LINE TO COMPRESSOR
999
BRACKET AT BRACKET
999
BRACKET REFRIGERANT LINE
999
HOSE FROM COMPRESSOR TO CONDENSER
999
HOSE FROM EXPANSION VALVE TO COMPRESSOR
999
AIR DUCT
