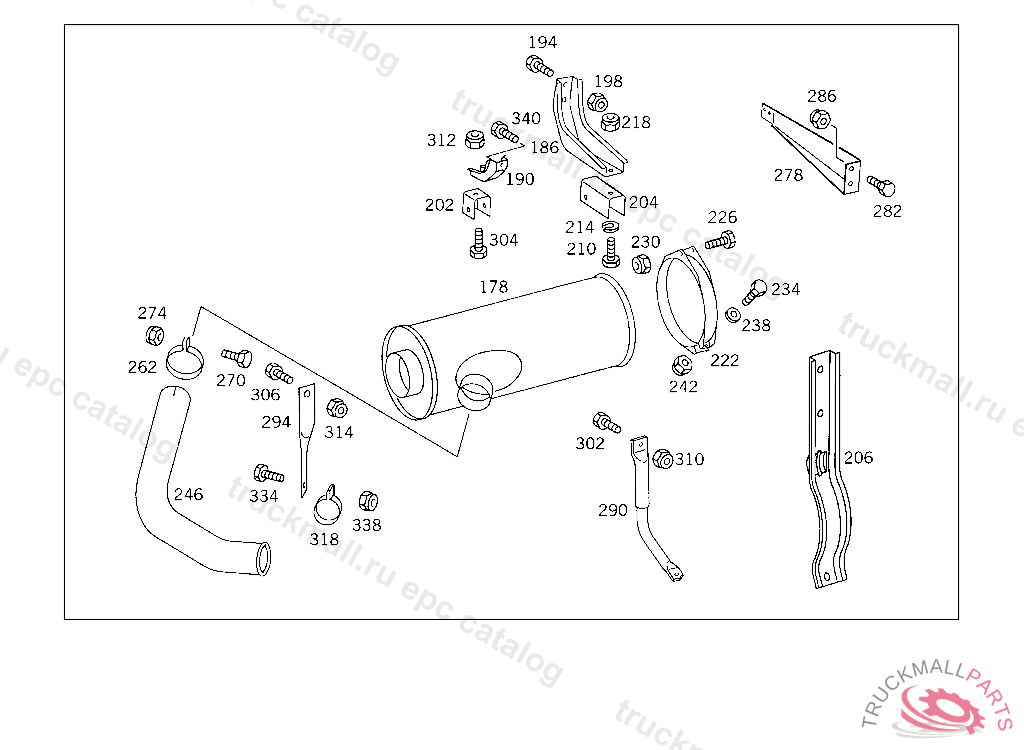

Поз.
Артикул
Описание
178
EXHAUST MUFFLER
178
EXHAUST MUFFLER REAR
178
EXHAUST MUFFLER REAR
186
CONSOLE REAR EXHAUST MUFFLER 132 MM
186
CONSOLE REAR EXHAUST MUFFLER 178 MM
186
CONSOLE CATALYST,REAR
186
CONSOLE REAR EXHAUST MUFFLER 126 MM
186
CONSOLE REAR EXHAUST MUFFLER 200 MM
190
CONSOLE REAR EXHAUST MUFFLER 200 MM
194
SCREW , Replaced By: N308676012026
194
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
198
NUT SUPPORT TO SIDE MEMBER
202
BRACKET EXHAUST MUFFLER
202
BRACKET AT SUPPORT
204
BRACKET REAR EXHAUST MUFFLER
206
BRACKET STRAP TO SIDE MEMBER
210
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
214
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
218
NUT , Replaced By: N910113010000
218
NUT STRAP TO BRACKET
222
STRAP EXHAUST MUFFLER TO BRACKET
222
STRAP , Replaced By: A6204900441
222
STRAP EXHAUST MUFFLER TO BRACKET
226
SCREW STRAP TO BRACKET
226
SCREW PIPE ELBOW TO BRACKET M 10X50
226
SCREW , Replaced By: N304017010053
226
SCREW , Replaced By: N304017010030
230
NUT STRAP TO BRACKET
230
NUT , Replaced By: N910113010000
234
SCREW STRAP TO BRACKET
238
WASHER EXHAUST MUFFLER TO STRAP
238
WASHER , Replaced By: N000125008443
242
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
242
NUT , Replaced By: N913004008001
246
REAR EXHAUST PIPE
246
REAR EXHAUST PIPE
246
REAR EXHAUST PIPE
246
REAR EXHAUST PIPE
246
REAR EXHAUST PIPE
246
REAR EXHAUST PIPE RIGHT
246
REAR EXHAUST PIPE LEFT
246
REAR EXHAUST PIPE REAR
246
REAR EXHAUST PIPE
246
REAR EXHAUST PIPE LONG,EXHAUST MUFFLER,RIGHT,4 827815
246
REAR EXHAUST PIPE LEFT
246
REAR EXHAUST PIPE
262
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
262
CLAMP , Replaced By: N071555100501
262
CLAMP EXHAUST PIPE TO BRACKET
270
SCREW BRACKET TO SIDE MEMBER
270
SCREW , Replaced By: N304017010002
274
NUT STRAP TO BRACKET
274
NUT , Replaced By: N910113010000
278
SUPPORT REAR EXHAUST PIPE
282
SCREW BRACKET TO CROSS CONNECTION STRUT
282
SCREW , Replaced By: N304017008034
286
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
286
NUT , Replaced By: N913004008001
290
BRACKET REAR EXHAUST PIPE
290
BRACKET REAR EXHAUST PIPE
290
BRACKET REAR EXHAUST PIPE
294
BRACKET REAR EXHAUST PIPE
294
BRACKET EXHAUST PIPE TO SIDE MEMBER
294
BRACKET TAIL PIPE
294
BRACKET EXHAUST PIPE TO SIDE MEMBER
302
SCREW CONSOLE TO SIDE MEMBER
304
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
304
SCREW , Replaced By: N308676014020
306
SCREW REAR EXHAUST PIPE TO MUFFLER
310
NUT SUPPORT TO SIDE MEMBER
312
NUT BRACKET TO SIDE MEMBER
312
NUT , Replaced By: N910113014001
314
NUT STRAP TO BRACKET
314
NUT , Replaced By: N910113010000
318
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
318
CLAMP , Replaced By: N071555100501
318
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
318
CLAMP , Replaced By: N071555090502
318
CLAMP EXHAUST PIPE TO BRACKET
334
SCREW BRACKET TO SIDE MEMBER
334
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
334
SCREW , Replaced By: N304017008027
334
SCREW BRACKET TO SIDE MEMBER
334
SCREW , Replaced By: N304017010002
338
NUT BRACKET TO SIDE MEMBER
338
NUT , Replaced By: N910113014001
338
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
338
NUT , Replaced By: N913004008001
338
NUT STRAP TO BRACKET
338
NUT , Replaced By: N910113010000
340
SCREW CABLE HARNESS MOUNTING
340
SCREW , Replaced By: N304017008023
999
DAMPING PAD PARTICLE FILTER
999
PROTECTIVE PLATE FUEL TANK
999
CONSOLE EXHAUST MUFFLER TO SIDE MEMBER
999
CONSOLE EXHAUST MUFFLER,FRONT
999
REAR EXHAUST PIPE
999
BRACKET REAR EXHAUST PIPE,5 193594
999
REAR EXHAUST PIPE ,5 193594
999
BRACKET EXHAUST MUFFLER SUSPENSION
999
PROTECTIVE PLATE REAR EXHAUST PIPE
999
BRACKET TAIL PIPE ON THE RIGHT
999
BRACKET TAIL PIPE ON THE RIGHT
999
EXHAUST MUFFLER , Replaced By: A6234900101
999
EXHAUST MUFFLER REAR
999
EXHAUST PIPE FRONT,REAR LEFT PART
999
CLAMP EXHAUST PIPE TO BRACKET
999
CLAMP TAIL PIPE TO BRACKET
999
REAR EXHAUST PIPE REAR
999
REAR EXHAUST PIPE REAR
999
BRACKET BRACKET TO BRACKET,5 301225
999
BRACKET REAR EXHAUST PIPE TO SIDE MEMBER
999
REAR EXHAUST PIPE REAR
999
REAR EXHAUST PIPE
999
REAR EXHAUST PIPE REAR
999
REAR EXHAUST PIPE
999
REAR EXHAUST PIPE
