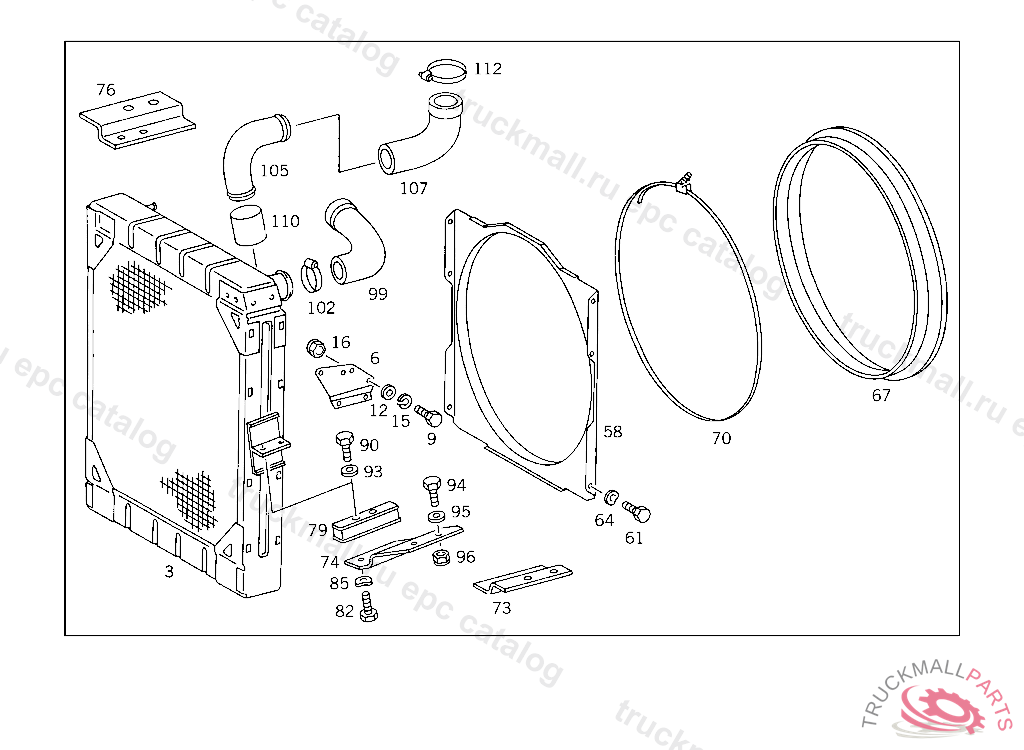

Поз.
Артикул
Описание
9
SCREW CLAMP TO BRACKET AND TO PIPE
12
WASHER EXHAUST MUFFLER TO STRAP
12
WASHER , Replaced By: N000125008443
12
WASHER SUPPORTING RAIL TO SUPPORT,5 429712
15
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
16
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
16
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
16
NUT , Replaced By: N913004008001
67
BOOT FAN SHROUD TO FAN RING
73
SUPPORT RADIATOR,LEFT
76
SUPPORT RADIATOR,RIGHT
79
RUBBER MOUNTING RADIATOR
79
RUBBER MOUNTING RADIATOR
82
HEXAGON HEAD BOLT RUBBER MOUNTING TO SIDE MEMBER AND TO SUPPORT M10X20
85
SPRING WASHER STEERING COLUMN BRACKET TO CAB
90
SCREW END PIECE TO EXHAUST PIPE M 10X25
93
WASHER RADIATOR TO RUBBER MOUNTING
93
WASHER , Replaced By: N000125010532
94
SCREW BRACKET TO FRAME M 12X35
96
NUT SUPPORT TO SIDE MEMBER
99
HOSE TRANSMISSION OIL COOLER, TO BE ADAPTED DURING ASSEMBLY
99
HOSE FROM THERMOSTAT TO RADIATOR FILLER NECK
99
HOSE ,5 121636, Replaced By: A6165010882, +001A6165011082
102
CLAMP HOSE FASTENING 50-70X13 MM
102
CLAMP , Replaced By: N000000000672
102
CLAMP HOSE TO RADIATOR,PIPE ELBOW,AND WATER PUMP 60-80X13 MM
102
CLAMP HOSE TO RADIATOR,PIPE ELBOW,AND WATER PUMP 60-80X13 MM
112
CLAMP HOSE TO RETARDER 60-80X13 MM
112
CLAMP , Replaced By: N000000000673
112
CLAMP HOSE TO RADIATOR,PIPE ELBOW,AND WATER PUMP 60-80X13 MM
112
CLAMP HOSE TO RADIATOR,PIPE ELBOW,AND WATER PUMP 60-80X13 MM
999
DRAIN PIPE EXPANSION TANK
999
GASKET O.D., 52 MM
999
GASKET O.D., 37 MM
999
RADIATOR CAP CENTRAL
999
RADIATOR CAP FILLER NECK
999
RADIATOR CAP CENTRAL
999
RADIATOR CAP FILLER NECK
999
RADIATOR WATER BEHR
999
CLAMP , Replaced By: N916017011000
999
RADIATOR WATER BEHR
999
SCREW PLUG , Replaced By: N007604014101
999
HOSE , Replaced By: A0219977682
999
SCREW COMPRESSED AIR LINE TO LEFT SIDE MEMBER
999
HOSE OVERFLOW, EXPANSION TANK
999
HOSE
999
BRACKET OIL LINE TO TRANSMISSION,REAR LEFT
999
WASHER AIR BAFFLE AND BRACKET TO RADIATOR
999
RUBBER MOUNTING RADIATOR MOUNTING,4 428845
999
BRACKET OIL DIPSTICK TO RADIATOR,4 410133
999
BRACKET OIL DIPSTICK TO RADIATOR,4 410133
999
BRACKET OIL DIPSTICK GUIDE TUBE
999
CONNECTOR AT WATER PUMP,4 923838
999
CONNECTOR AT WATER PUMP
999
HOSE FROM WATER PUMP TO EXPANSION TANK,4 923838
999
HOSE FROM EXPANSION TANK TO THERMOSTAT
999
BRACKET EXPANSION TANK,RIGHT
999
FLANGE CONNECTOR
999
FLANGE DE-AERATION,5 301948
999
LINE (HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR,5 301949
999
SHIM EXPANSION TANK,RIGHT
999
STRAP EXPANSION TANK,RIGHT
999
HOSE HEATING PIPE TO RADIATOR
999
BRACKET HEATING PIPE,5 301949
999
BRACKET EXPANSION TANK
999
LINE HEATING AND BREATHING
999
SHIM EXPANSION TANK TO BRACKET
999
STRAP EXPANSION TANK TO BRACKET
999
SUPPORT RADIATOR,LEFT,5 121637
999
SUPPORT RADIATOR,RIGHT,5 121637
999
FLANGE , Replaced By: A6205060261
999
FLANGE
999
HOSE FROM HEATING PIPE AT ENGINE TO HEATING PIPE AT RADIATOR
999
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
999
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
999
WASHER COMPRESSED AIR LINE TO BRACKET
999
SPRING WASHER LICENSE PLATE TO BRACKET
999
SPRING WASHER , Replaced By: N000137008212
999
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
999
SCREW , Replaced By: N304017006020
999
SCREW COVER PLATE TO BRACKET
999
SCREW , Replaced By: N304017006016
999
SCREW , Replaced By: N000933008337
999
SCREW , Replaced By: N304017008018
999
SCREW , Replaced By: N304017008016
999
SCREW , Replaced By: A0099900101
999
CUTTING RING. GLAND LINE CONNECTION
999
SEAL RING FUEL LINE TO FEED PUMP
999
SCREW PLUG WATER DRAIN
999
SCREW PUMP TO BRACKET
999
SCREW LICENSE PLATE TO BRACKET
999
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
999
SCREW SUPPORT TO FENDER
999
NUT STRAP TO BRACKET
999
CLAMP , Replaced By: N916017011001
999
GASKET HEATING PIPE TO ENGINE
