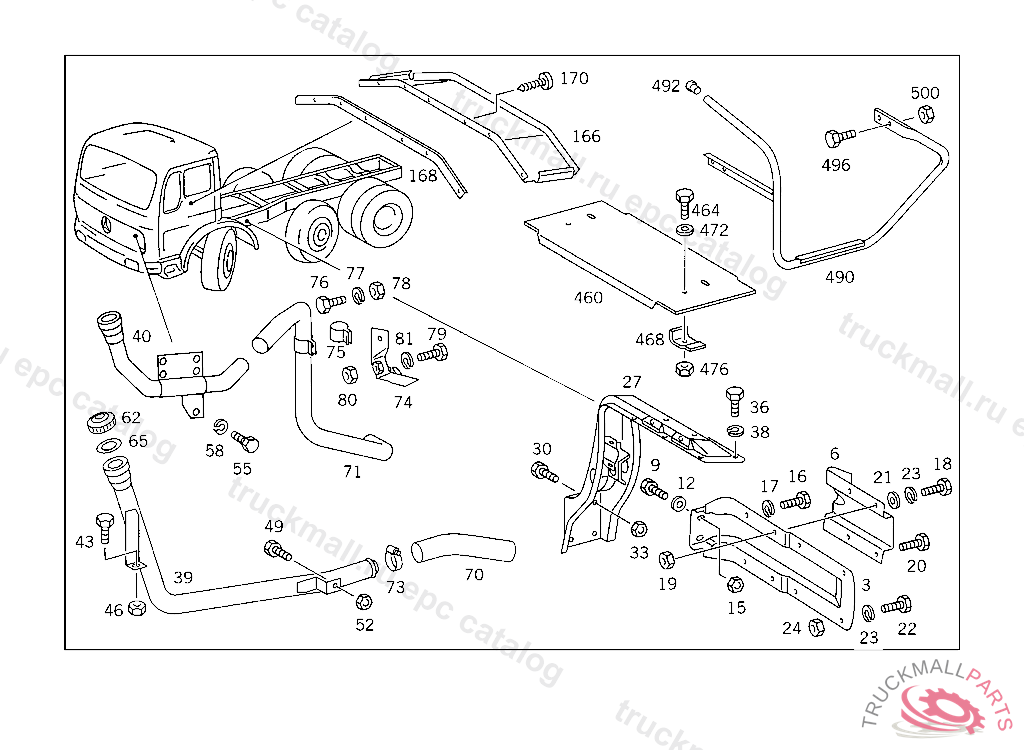

Поз.
Артикул
Описание
18
SCREW BRACKET TO CROSS CONNECTION STRUT
18
SCREW , Replaced By: N304017008034
39
PIPE ELBOW (OIL FILLER PIPE)
43
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
46
NUT STRAP TO BRACKET
46
NUT , Replaced By: N910113010000
49
SCREW AIR CLEANER SUPPORT TO SIDE MEMBER, REAR
52
NUT SUPPORT TO SIDE MEMBER
62
CAP OIL REFILLING
62
CAP OIL REFILLING
62
CAP OIL REFILLING
65
GASKET , Replaced By: A1020180080
70
HOSE , Replaced By: A6205280182
73
CLAMP SUCTION LINE TO OIL PUMP 40-60X13 MM
73
CLAMP , Replaced By: N000000000671
460
RUNNING BOARD
464
SCREW ROCKER PANEL TO FRAME
468
MOUNTING ANGLE ROCKER PANEL TO FRAME
472
WASHER STRUT TO CROSS MEMBER
472
WASHER , Replaced By: N007349010007
472
WASHER RADIATOR TO RUBBER MOUNTING
472
WASHER , Replaced By: N000125010532
476
NUT STRAP TO BRACKET
476
NUT , Replaced By: N910113010000
490
SUPPORT ROCKER PANEL
492
PLUG ROCKER PANEL
496
SCREW END PIECE TO EXHAUST PIPE M 10X25
500
NUT STRAP TO BRACKET
999
FILTER ELEMENT
999
SEAL RING INTAKE PIPE TO CAB CONSOLE,5 088425
999
NUT
999
GASKET , Replaced By: A4421411480
999
GASKET INTAKE PIPE TO ENGINE
999
STRAINER , Replaced By: A6205280103
999
BOOT , Replaced By: A6205200296
999
BOOT AIR INTAKE
999
PIPE ELBOW (INTAKE PIPE)
999
PIPE ELBOW (INTAKE PIPE),5 006369
999
PROTECTIVE PLATE (INTAKE PIPE)
999
STRAINER BOOT
999
SUPPORT AIR INTAKE PIPE
999
BRACKET , Replaced By: A6575280040
999
BRACKET BOOT
999
HOSE FROM AIR CLEANER TO CAB CONSOLE
999
BRACKET BOOT
999
CLAMP HOSE TO AIR CLEANER AND CAB CONSOLE 130-150X13 MM, Replaced By: N000000005892
999
CLAMP HOSE TO CAB CONSOLE AND TO ENGINE CONNECTION
999
WASHER , Replaced By: N000125015019
999
WASHER STRUT TO EXHAUST PIPE AND TO SIDE MEMBER
999
SPRING WASHER LICENSE PLATE TO BRACKET
999
SPRING WASHER , Replaced By: N000137008212
999
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
999
SPRING WASHER STEERING COLUMN BRACKET TO CAB
999
SCREW , Replaced By: N304017006018
999
SCREW , Replaced By: N304017008027
999
SCREW , Replaced By: N304017008016
999
SCREW , Replaced By: N304017010002
999
SCREW CONSOLE TO SIDE MEMBER
999
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
999
SCREW BRACKET TO CAB CONSOLE,K 035197
999
SCREW BRACKET TO SIDE MEMBER
999
SCREW COVER PLATE TO COVER PLATE M 6 X 12
999
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
999
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
999
SCREW BRACKET TO SIDE MEMBER
999
THREADED INSERT
999
THREADED INSERT
999
THREADED INSERT ,5 462573
999
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
999
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
999
NUT , Replaced By: N913004008001
999
SCREW BOOT TO BRACKET
999
CLAMP , Replaced By: N000000000678
