Mercedes A0005730142 - BEFESTIGUNGSPLATTE /

O530 - CITARO 12M, 2-TUERER 628.083

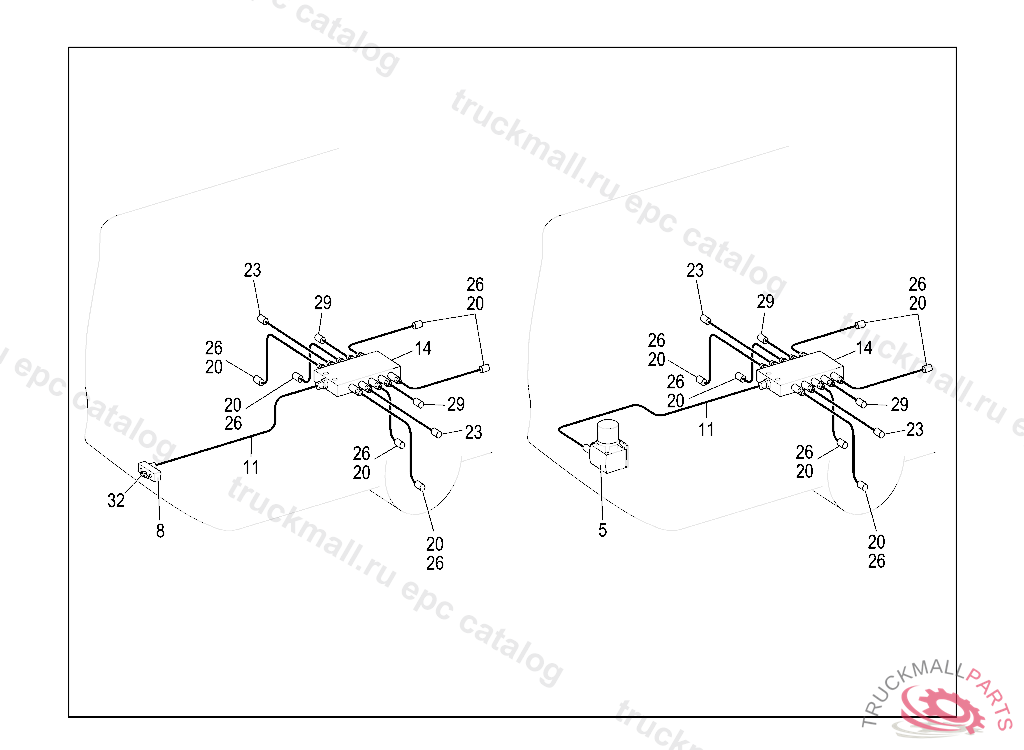

57 CENTRAL LUBRICATION - 001 CENTRAL LUBRICATION IL. 1

Поз.
Артикул
Описание
5
A0015710201
PUMPKFA1-S2+924
8
A0005730142
PLATE GREASE NIPPLE TO SUBSTRUCTURE
11
A0005732836
HOSE FROM DISTRIBUTOR ON RING MOUNT TO DISTRIBUTOR ON FRONT AXLE 9500 MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
14
A0035739520
DISTRIBUTOR FRONT AXLE
20
A0005732032
CONNECTOR LINE CONNECTION
23
A0069974789
PLUG CONNECTIONM 6X1
23
A0049972689
COUPLINGM 6X1, Replaced By: A0069974789
26
A0059970989
COUPLING ELBOW FITTING M 10X1
29
A0005735632
CONNECTORM 10X1
32
N071412010200
GREASE NIPPLE
999
A0005700019
LUBRICATING LINE
999
A0005700119
LUBRICATING LINE
999
A0005700219
LUBRICATING LINE
999
A0005700319
LUBRICATING LINE
999
A0029975890
CABLE TIE LINE MOUNTING 375X8.4MM
999
N000000000319
CLAMP IDLING ADJUSTMENT WIRE CABLE,K 147121
999
N000000001479
HEXALOBULAR BOLT. SCREW LINE MOUNTING M 6X30
999
N000000007510
CLAMP LINE MOUNTING 8/15
999
N910105006006
SCREW BRACKET AND CLAMP M6X20
999
N913023006001
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
