Поз.
Артикул
Описание

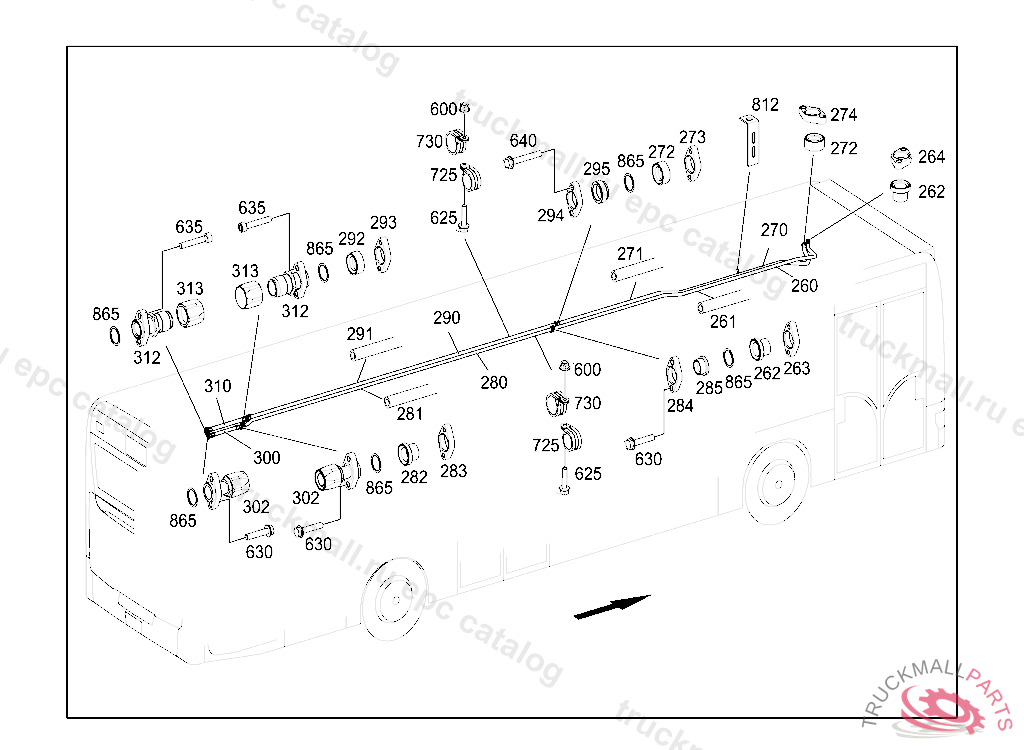

260
PIPE LINE
261
INSULATING HOSE28MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
262
FITTING
263
FLANGE THREADED D36MM
264
FLANGE NOT THREADED D36MM
270
PIPE LINE
271
INSULATING HOSE36,5X47MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
272
FITTING
273
FLANGE THREADED D36MM
274
FLANGE NOT THREADED D36MM
280
PIPE LINE
281
INSULATING HOSE28MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
282
FITTING
283
FLANGE THREADED D36MM
284
FLANGE NOT THREADED D36MM
285
FITTING
290
PIPE LINE
291
INSULATING HOSE36,5X47MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
292
FITTING
293
FLANGE THREADED D36MM
294
FLANGE NOT THREADED D36MM
295
FITTING
300
HOSE
302
HOSE CONNECTOR NW25
310
HOSE
312
CONNECTORNW32
313
SOCKET
600
NUT BRACKET TO FIRE WALL
600
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
625
SCREW. HEXAGON HEAD BOLT BUZZER TO WINDOW LEVEL GIRDER M6X25
630
HEXAGON HEAD BOLT. SCREW BRACKET TO TRANSMISSION M 10X50
635
SCREW ROLLER ON SUPPORT
640
HEXAGON HEAD BOLT BRACKET TO DISTRIBUTOR
725
CLAMP35/20
725
CLAMP COOLING WATER HOSES
725
CLAMP35/20, Replaced By: N000000007514
730
CLAMP CLAMP TO CROSS MEMBER 42/20
730
CLAMP42/20, Replaced By: N000000007548
730
CLAMP42/20
812
BRACKET
865
GASKET34X42 MM
999
ADHESIVE TAPE3X50MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
999
CABLE TIE LINE MOUNTING 375X8.4MM
999
LOOM TIE LINE MOUNTING
