Mercedes A0007606078 - ZB VENTIL

O530 - CITARO 12M, 2-TUERER 628.083

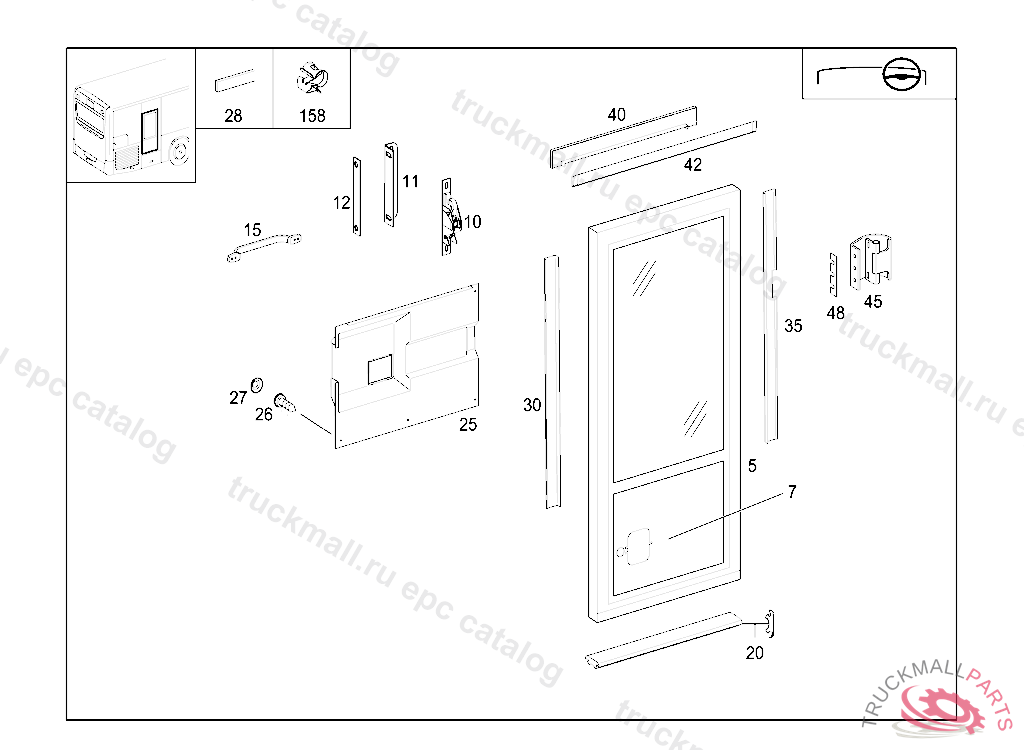

73 DOORS - 085 EMERGENCY DOOR IL. 1

Поз.
Артикул
Описание
5
A6287300003
DOOR SHELL , NO.7365 INO.5856 INO.7327 IIII
7
A6287320009
PANELLING
10
A0007501450
LOCK (LOCK),LESS KEY
11
A6287310014
BRACKET LOCK
12
A6287330005
SHIM LOCK
15
A3358155136
HANDLE LEFT AND RIGHT, NO.7365I.......I.......I.......I.......I....... I
20
A0009876614
RUBBER STRIP , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
25
A6287330023
COVERING
26
A0019905036
SHEET METAL SCREW42X16
27
A0009878345
LOCKING CAP
28
A0009872223
TOTAL FOAMED MATERIAL USE SELF-ADHESIVE ON ONE SIDE 6X15MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
30
A6287330123
COVERING LEFT
35
A6287330223
COVERING RIGHT
40
A6287330323
COVERING TOP
42
A6286901101
DRIP MOULDING
45
A0007300137
HINGE BOTTOM
45
A0007300037
HINGE TOP
48
A6287330105
SPACER ELEMENT
158
A0089888478
CLIP
999
A0007606078
VALVE 3/2-WAY VALVE
999
A6287300035
DOOR LOCK COMPLETE
