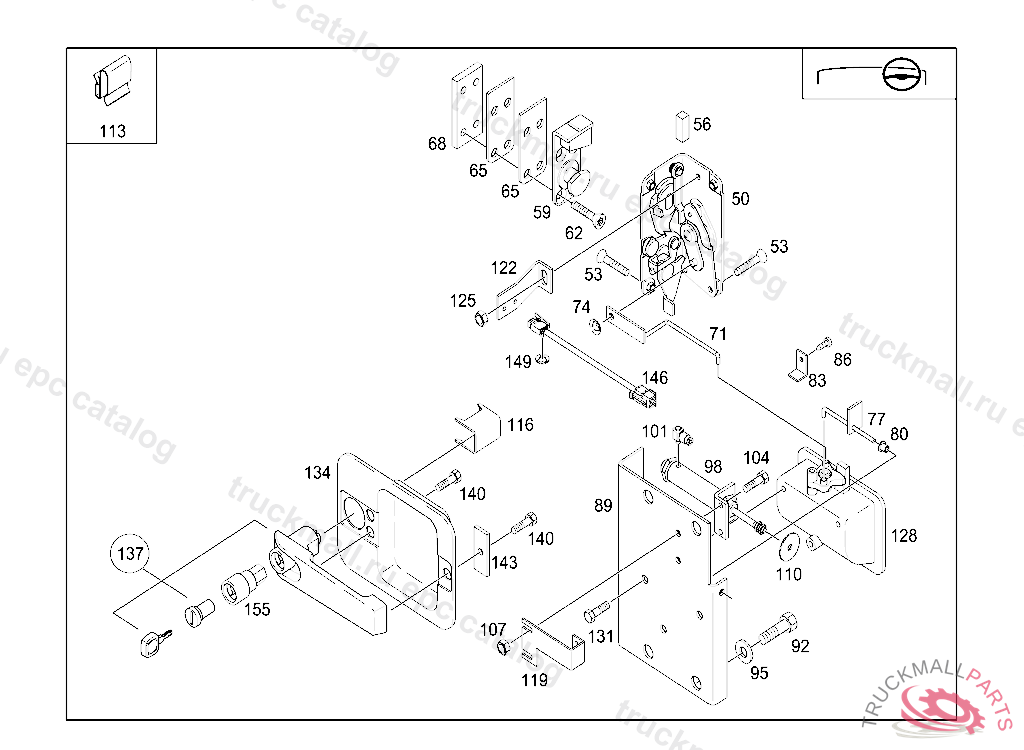

Mercedes A0008003672 - LU ZYLINDER M.ZUBEHO

O530 - CITARO 12M, 2-TUERER 628.083

73 DOORS - 085 EMERGENCY DOOR IL. 2

Поз.
Артикул
Описание
50
A0007232001
LOCK
53
A0019909920
SCREWM6X12 TX30
56
A3576980022
FILLER
59
A0007231503
STRIKER RIGHT
62
A0029900620
SCREWM8X20TX45
65
A6277310311
PLATE
68
A6277320411
PLATE
71
A6277300092
PULL ROD
74
N006799007001
LOCKING WASHER. LOCK PLATE CLUTCH PEDAL RESET
77
A6277300088
OPERATING ROD
80
A0009928305
BUSHING
83
A6287310114
BRACKET
86
N000000000461
TAPPING SCREW MOUNTING PARTS 4.8X16
89
A6277320014
BRACKET DOOR HANDLE TO DOOR
92
N910143008000
SCREW SPEED SENSOR TO REAR AXLE
95
N009021008106
WASHER
98
A0008003672
DOOR CYLINDER PNEUMATIC
101
A0049903171
ELBOW FITTING
104
N910105005002
SCREW. HEXAGON HEAD BOLT RELAY TO BRACKET M5X16
107
N910112005000
HEXAGON NUT. NUT ELECTRIC CABLE TO ALTERNATOR
110
A0009903542
WASHER
113
A0009881678
CLIP HOSE TO CAB,4 238841
116
A6277250043
SPACER
119
A6287330214
BRACKET
122
A6287330314
BRACKET
125
N304032006004
NUT SPRING-LOADED PUSH ROD
128
A6277600360
HANDLE BLACK
131
N910143006000
SCREW CONDENSER TO CHARGE AIR INTERCOOLER M6 X 12
134
A0007330398
SEAL
137
A6277600159
DOOR HANDLE
140
N910143006012
SCREW BRACKET MOUNTING M6X10
143
A6277310511
PLATE
146
A0048206210
SWITCH LOCKING MECHANISM
149
N912010003000
LOCK PLATE , A 372464 ALSO INSTALLED ON A 372469,A 372476,A 372477,A 372483,A 372490,A 372493,A 372505,A 372517,A 372519,A 372525,A 372539,A 372548,A 372572,A 372614, A 373051.EXCEPT FOR A 371956 F 348473
155
A6287600009
EJECTOR
999
A0007606078
VALVE 3/2-WAY VALVE
999
A6287300035
DOOR LOCK COMPLETE
