O530 - CITARO 12M, 2-TUERER
628.083
54 ELECTRICAL EQUIPMENT AND INSTRUMENTS

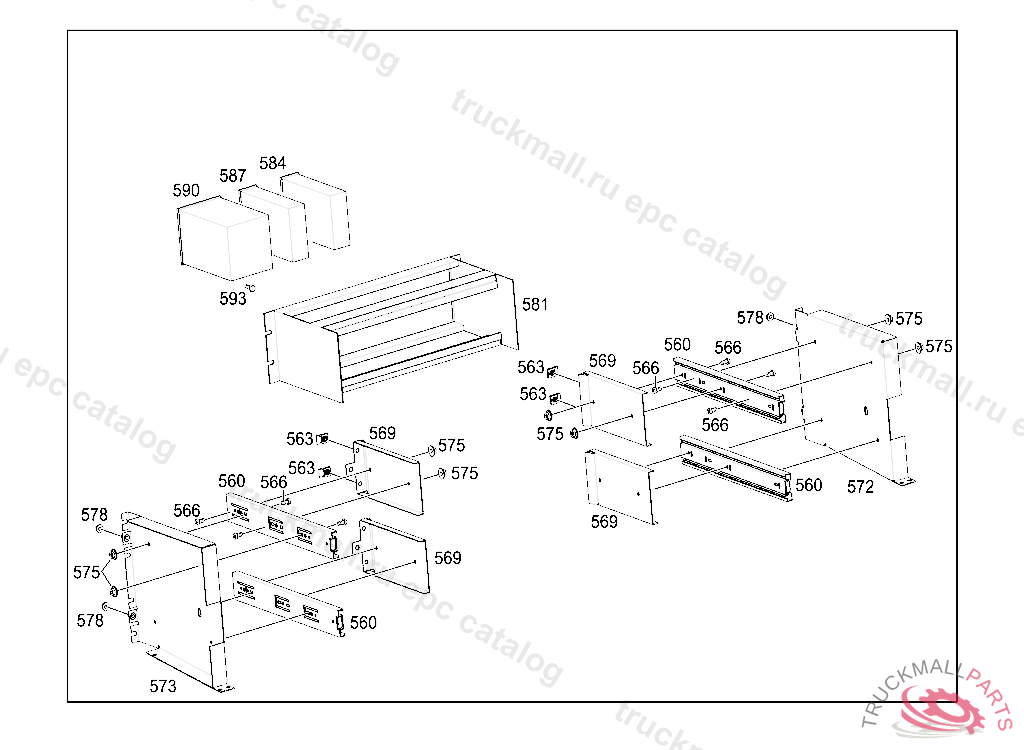

122 ELECTRICAL COMPARTMENT, SECONDARY SWITCHBOARD, TRANSVERSE ROOF CHANNEL IL. 6

Mercedes A0008202881 - ZB GERAETETRAGER (1

O530 - CITARO 12M, 2-TUERER 628.083

54 ELECTRICAL EQUIPMENT AND INSTRUMENTS - 122 ELECTRICAL COMPARTMENT, SECONDARY SWITCHBOARD, TRANSVERSE ROOF CHANNEL IL. 6

Поз.
Артикул
Описание
560
A0009854931
RUBBING BLOCK
563
A0009908891
NUT RETAINER USED WITH IMITATION LEATHER TRIM, 123 297291 ALSO INSTALLED ON 306113-347407 133 002318 ALSO INSTALLED ON 004116-012658
566
A0039907612
SCREWM4X8
569
A3238273314
BRACKET
572
A6288203311
RETAINING PLATE
573
A6288203411
RETAINING PLATE
575
N000000006148
NUT-AND-WASHER ASSEMBLY. NUTM4
578
N910112006001
NUT , Replaced By: N913023006001
581
A0008202881
IMPLEMENT CARRIER
584
A0018213047
PULSE RELAY
587
A0038208489
RADIO MONITOREV10.BVG BERLIN
590
A0038208389
RADIO MONITORDIAS MP3(21TE)
593
N000084002157
SCREW BUTTON
999
A6288215305
ELECTRIC CABLE CABLE HARNESS EMERGENCY COCK (T2) 4_S21 --- 4_S21.1
