Mercedes A6289901982 - GLEITSCHEIBE

O530 - CITARO 12M, 3-TUERER 628.085

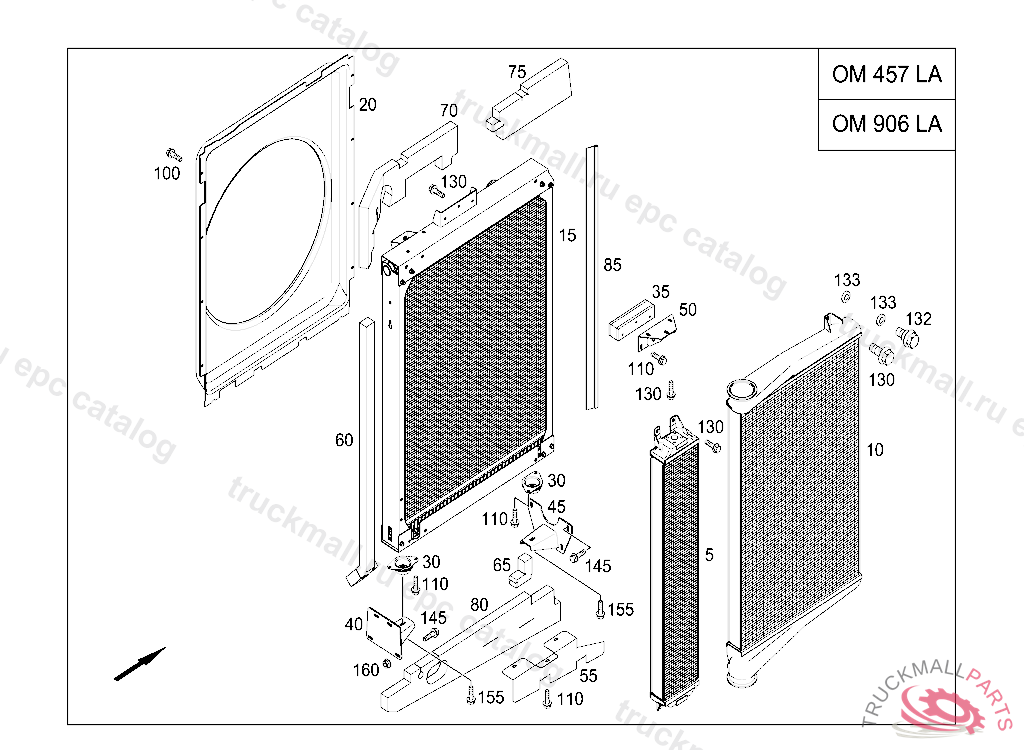

50 RADIATOR - 040 COOLER MODULE

Поз.
Артикул
Описание
5
A6285003800
OIL COOLER FAN DRIVE
10
A6285004500
RADIATOR (CHARGING AIR INTERCOOLER)
10
A6285003300
RADIATOR (CHARGING AIR INTERCOOLER), Replaced By: A6285004500
15
A6285000502
RADIATOR RADIATOR
20
A6285000655
FAN SHROUD FAN DRIVE
30
A0005040614
BEARING
35
A0005040314
BEARING
40
A6285002831
BRACKET RADIATOR MOUNTING
45
A6285002931
BRACKET RADIATOR MOUNTING
50
A6285002131
BRACKET RADIATOR MOUNTING,TOP
55
A6285286240
BRACKET
60
A6285055186
SEAL
65
A6285055286
SEAL
70
A6285055386
SEAL
75
A6285055486
SEAL
80
A6285055586
SEAL
85
A0049876951
RUBBER SEAL ,077671 ORDER BY THE METER
100
N910105006002
HEXAGON HEAD BOLT
110
N910105008013
SCREW PIPE ELBOW TO BRACKET M8X12
130
N910105008041
SCREW , Replaced By: N910143008000
132
A0179907301
SCREW WITH FLANGE M8X18MM, PRODUCTION BREAKPOINT AS OF 01.06.2008
133
A6289901982
SLIDING DISK , PRODUCTION BREAKPOINT AS OF 01.06.2008
145
N910105008026
SCREW BRACKET TO CAB REAR PANEL M 8X20
155
N910105010040
SCREW BRACKET TO DISC WHEEL M 10X16,D 315832
160
N913023008003
NUT HORN TO BRACKET M8
