Главная
›
Mercedes
›
BUS
›
O530 - CITARO 12M, 3-TUERER
›
628.085
›
83 HEATING AND VENTILATION
›

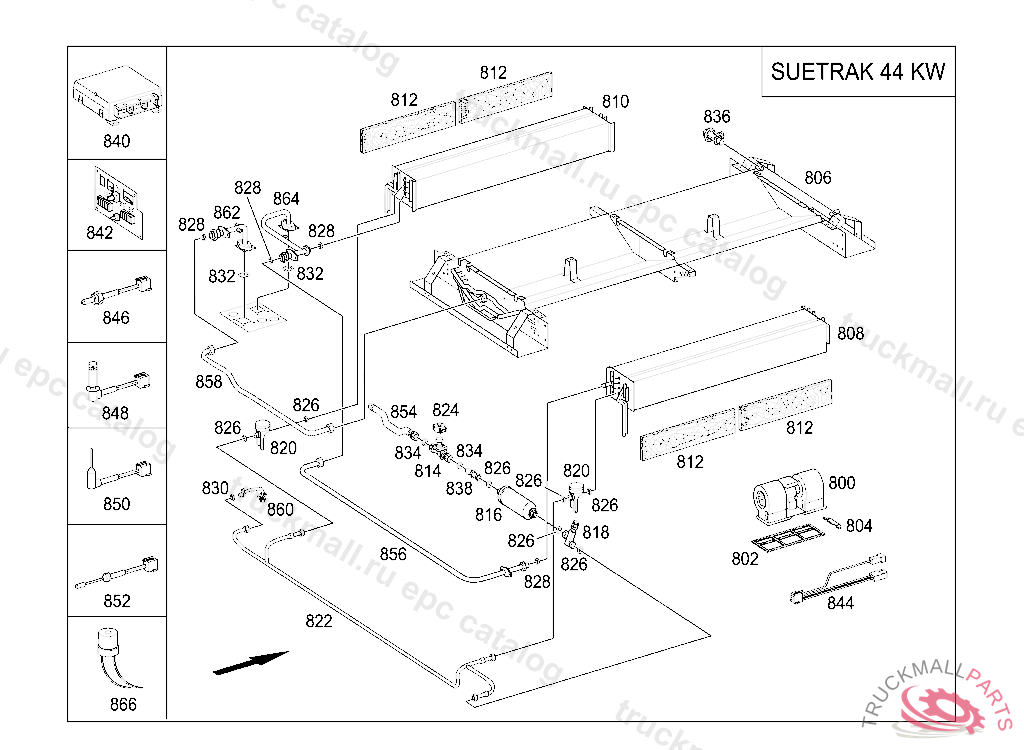

500 HEATER/AIR CONDITIONING ON ROOF IL. 12
Mercedes A0028350047 - TROCKNERPATRONE
O530 - CITARO 12M, 3-TUERER 628.085
83 HEATING AND VENTILATION - 500 HEATER/AIR CONDITIONING ON ROOF IL. 12
Поз.
Артикул
Описание
800
A0038302508
BLOWER
802
A0008310442
FRAME
804
A0018352214
BRACKET
806
A0018300270
CAPACITOR
808
A0028302958
EVAPORATOR RIGHT
810
A0028303058
EVAPORATOR LEFT
812
A0028351247
FILTER MAT
814
A0048302284
VALVE
816
A0028350047
FILTER
818
A6288300584
SHUT-OFF VALVE CORNER SHUTOFF VALVE
820
A0048302984
VALVE
822
A0088300515
PIPE LINE
824
A0008240977
MAGNET
826
A0179977645
SEAL RING7/8"
828
A0209971145
SEAL RING1"
830
A0159971345
SEAL RING5/8"
832
A0008310013
GASKET
834
A0189970445
SEAL RING13/16"
836
A0048302384
VALVE
838
A0008312028
INTERMEDIATE PIECE
840
A0008358536
CONTROL UNIT
842
A0048273345
CONTROL UNIT
844
A0035400405
CABLE HARNESS
846
A0008210381
TEMPERATURE SENSOR WATER
848
A0008210481
TEMPERATURE SENSOR INBOARD
850
A0038214051
TEMPERATURE SENSOR DEFROSTING
852
A6288210651
TEMPERATURE SENSOR AMBIENT AIR TEMP. SENSOR
854
A3048302015
PIPELINE
856
A3048302115
SUCTION LINE
858
A3048302215
PRESSURE LINE
860
A6288300121
ADAPTER
862
A6288300221
ADAPTER DELIVERY LINE
864
A6288300321
ADAPTER SUCTION LINE
866
A0085459124
SWITCH,AUTOMATIC
999
A0005422292
CONNECTOR
999
A0005462318
COIL SOLENOID VALVE
999
A0008331520
LINK
999
A0008331620
LINK
999
A0008351588
ADHESIVE LABEL DO NOT ENTER
999
A0008360878
HOSE
999
A0009911871
RETAINING CLIP
999
A0009980222
PROTECTIVE CAP
999
A0029910770
CLIP
