O530 - CITARO 12M, 3-TUERER
›
628.085
›
88 ATTACHMENT PARTS
›

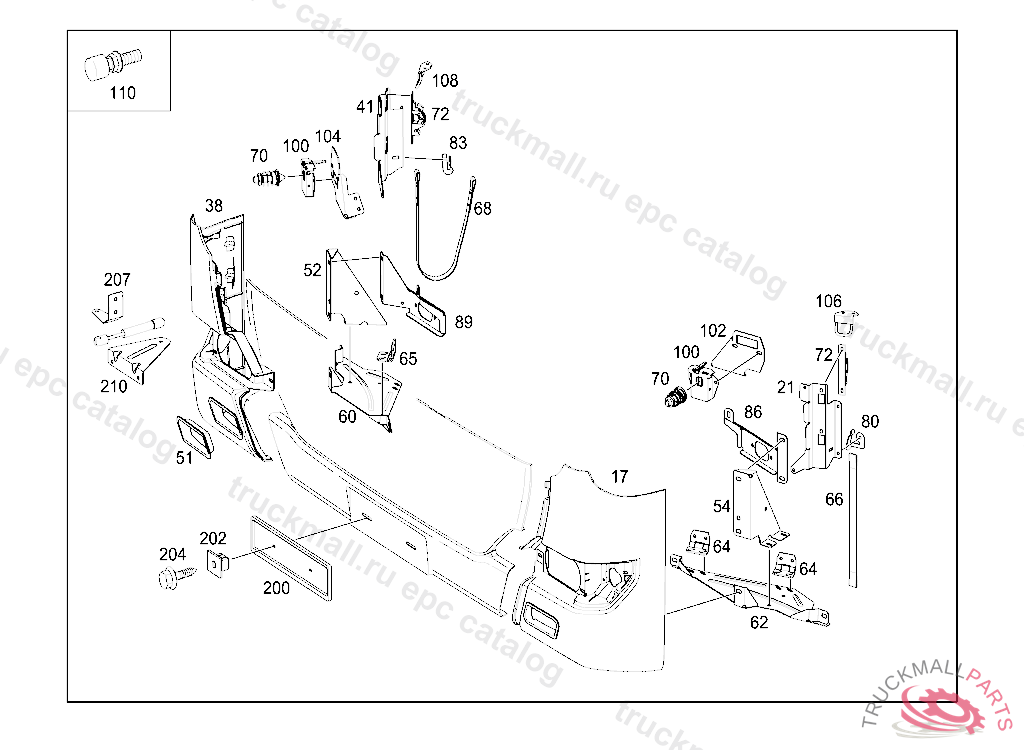

060 FRONT BUMPER IL. 3
Mercedes A6288859614 - HALTER LI
O530 - CITARO 12M, 3-TUERER 628.085
88 ATTACHMENT PARTS - 060 FRONT BUMPER IL. 3
Поз.
Артикул
Описание
17
Q628880837201
BUMPERETTE FRONT LEFT
17
A6288808372
CORNER SECTION
21
A6288851112
ANGLE STOP LEFT
38
A6288808472
CORNER SECTION
41
A6288851212
ANGLE STOP RIGHT
51
A6288850756
FIXTURE RIGHT
52
A6288801614
BRACKET
54
A6288801514
BRACKET
60
A6288854014
BRACKET
62
A6288853914
BRACKET
64
A6287510151
HINGE
65
A6287510251
HINGE
66
A6287500564
BAND
68
A6287500564
BAND
68
A6287500164
BAND
70
A9417500184
FASTENER BUMPER
72
A0007501250
LOCK
80
A6288858514
BRACKET
83
A6288858614
BRACKET
86
A6288859614
BRACKET DAYTIME RUNNING LAMP AND FOG LAMP, LEFT
89
A6288859714
BRACKET DAYTIME RUNNING LAMP AND FOG LAMP, RIGHT
100
A9437500084
FASTENER
102
A6288802314
BRACKET
104
A6288802414
BRACKET
106
A6288802614
BRACKET
108
A6288802714
BRACKET
110
A2019880511
BUFFER LEFT, FROM CHASSIS: 010 077937
200
A0005250051
BRACKET LINCENSE PLATE BRACKET
202
A0019949545
LOCK LICENSE PLATE TO BUMPER
204
N914031005202
COMBINATION BOLT VACUUM LINE TO SHOCK ABSORBER CONSOLE
207
A6288850956
FIXTURE
210
A6288851256
FIXTURE
999
A0029942145
LOCK. NUT , Replaced By: A0039941745
999
A6288850656
FIXTURE LEFT
999
N000466006004
NUT TO BRACKET RADIO M6
999
N910112008000
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
999
N910142005000
HEXALOBULAR BOLT ELECTRIC CABLE MOUNTING M5X10,V 213244
999
N910143006000
SCREW CONDENSER TO CHARGE AIR INTERCOOLER M6 X 12
999
N910143008020
SCREW SPEED SENSOR TO REAR AXLE
999
N913023006001
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
