Mercedes A0015710201 - PUMPE

CITARO 18M 3-TUERER 628.237

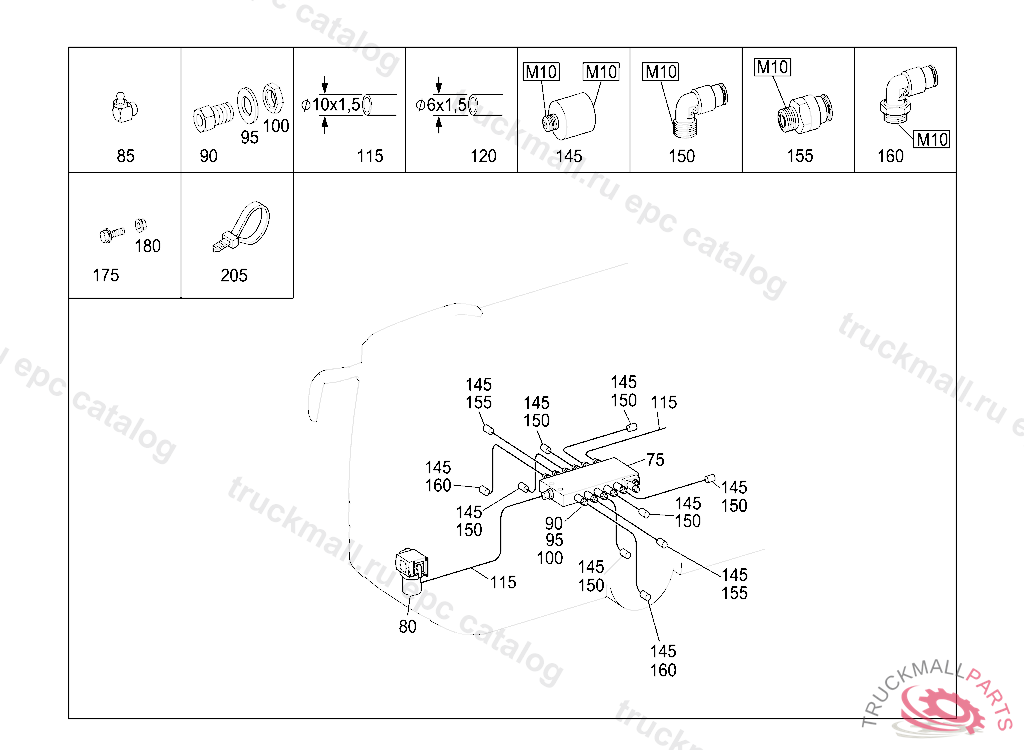

57 CENTRAL LUBRICATION - 001 CENTRAL LUBRICATION IL. 2

Поз.
Артикул
Описание
75
A0045731520
80
A0015710201
PUMPKFA1-S2+924
85
N071412010300
GREASE NIPPLE
90
A0005730832
CONNECTOR REFILLING CONNECTION
95
N000125015021
WASHER BRACKET MOUNTING
100
N080705014005
NUT AT TEST CONNECTION BRACKET
115
A0005732836
HOSE FROM DISTRIBUTOR ON RING MOUNT TO DISTRIBUTOR ON FRONT AXLE 9500 MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
120
A0009970479
PLASTIC PIPE6X1.5, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
145
A0005732032
CONNECTOR LINE CONNECTION
150
A0059970989
COUPLING ELBOW FITTING M 10X1
155
A0005735632
CONNECTORM 10X1
160
A0019973673
SWIVEL FITTINGM10X1
175
N910105006012
SCREW. HEXAGON HEAD BOLT BATTERY AND ENGINE CABLE HARNESSES TO BRACKET M6X40
180
N913023008003
NUT HORN TO BRACKET M8
180
N913023006002
NUT BRACKET TO FIRE WALL
205
A0029975890
CABLE TIE LINE MOUNTING 375X8.4MM
