Mercedes N007603 012102 - ШАЙБА МЕТАЛЛИЧЕСКАЯ

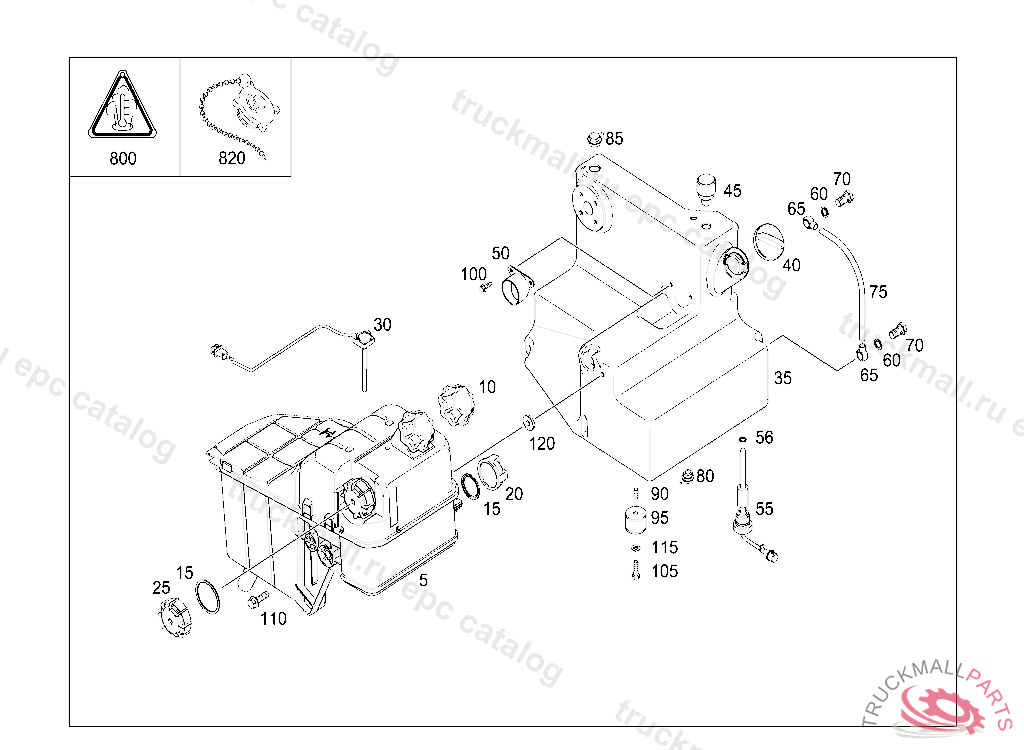

CITARO 18M 3-TUERER 628.237

50 RADIATOR - 260 EXPANSION TANK

Поз.
Артикул
Описание
5
A0005003949
EXPANSION RESERVOIR COOLING WATER
10
A0005016415
RADIATOR CAP FILLER NECK
15
A0005011080
GASKET
20
A0005016715
RADIATOR CAP WITH VALVE
25
A0005018315
RADIATOR CAP
30
A9425420217
SENDER UNIT COOLING WATER LEVEL INDICATOR
35
A6284801601
OIL TANK
40
A0000180702
CAP OIL REFILLING
45
A0005531803
FILTER OIL TANK
50
A6284800440
BRACKET OIL TANK
55
A6285400017
SENDER UNIT OIL TANK
60
N007603012102
SEAL RING CHECK VALVE,CONNECTION "1",4 704213
65
N915052008003
BANJO UNION OIL TANK
70
N915036008200
HOLLOW SCREW COMPRESSED AIR LINE TO OPERATING CYLINDER
75
A0109976482
PLASTIC PIPE. HOSE FLUID LEVEL INDICATOR 170 MM, ORDER BY THE METER
80
N007604018109
SCREW PLUG
85
N007604022107
SCREW PLUG QUICK-RELEASE VALVE,CONNECTION: "2"
90
A6284810186
THREADED UNIONM 8
95
A0005280485
RUBBER MOUNTING THREAD: M 8
100
N910105006007
SCREW. HEXAGON HEAD BOLT GGVS-COMPONENT IN BATTERY CARRIER M6X10
105
N910105008013
SCREW PIPE ELBOW TO BRACKET M8X12
110
N910105008016
SCREW SHIFT LEVER TO BRACKET M8X30
115
N000125008445
WASHER PUMP TO CONSOLE
120
A0069900740
WASHER
