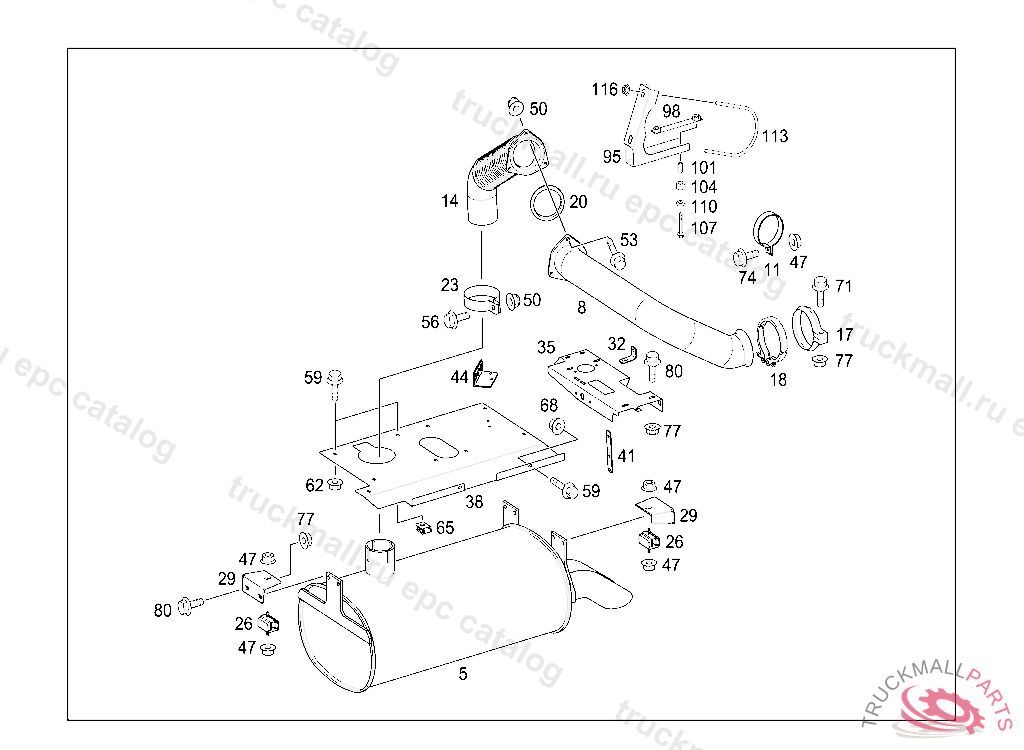

Поз.
Артикул
Описание
5
MUFFLER
14
EXHAUST PIPE
20
FLANGE GASKET EXHAUST LINE FLEXIBLE METAL TUBE
23
CLAMP , Replaced By: N071555124501
23
CLAMP EXHAUST SYSTEM D124,5MM, Replaced By: A6554920140
26
RUBBER MOUNTING
29
BRACKET
38
38
47
NUT , Replaced By: N913023010002
50
NUT BRACKET TO SIDE MEMBER M12X1.5
53
HEXAGON HEAD BOLT BEARING BRACKET TO SIDE MEMBER M 12X50
56
SCREW BRACKET TO SIDE MEMBER M10X35
56
HEXAGON HEAD BOLT BRACKET TO SIDE MEMBER M12X1.5X35
59
SCREW BRACKET AND CLAMP M6X20
65
LOCK NUT. SPRING NUT STEP TO ENTRANCE
68
NUT , Replaced By: N913023006001
74
HEXAGON HEAD BOLT CONSOLE TO REAR CROSS MEMBER AND TO FRAME SIDE MEMBERS M 10X40
80
SCREW BRACKET TO CAB REAR PANEL M 8X20
95
BRACKET EXHAUST PIPE
98
FASTENING PLATE
101
PILOT BUSHING
104
VIBRATION DAMPER
107
HEXAGON HEAD BOLT. SCREW BRACKET MOUNTING M8 X 30
110
WASHER BRACKET TO CAB REAR PANEL
113
MOUNTING BRACKET ATTACHMENT BRACKET AND EXHAUST PIPE
116
NUT HORN TO BRACKET M8
