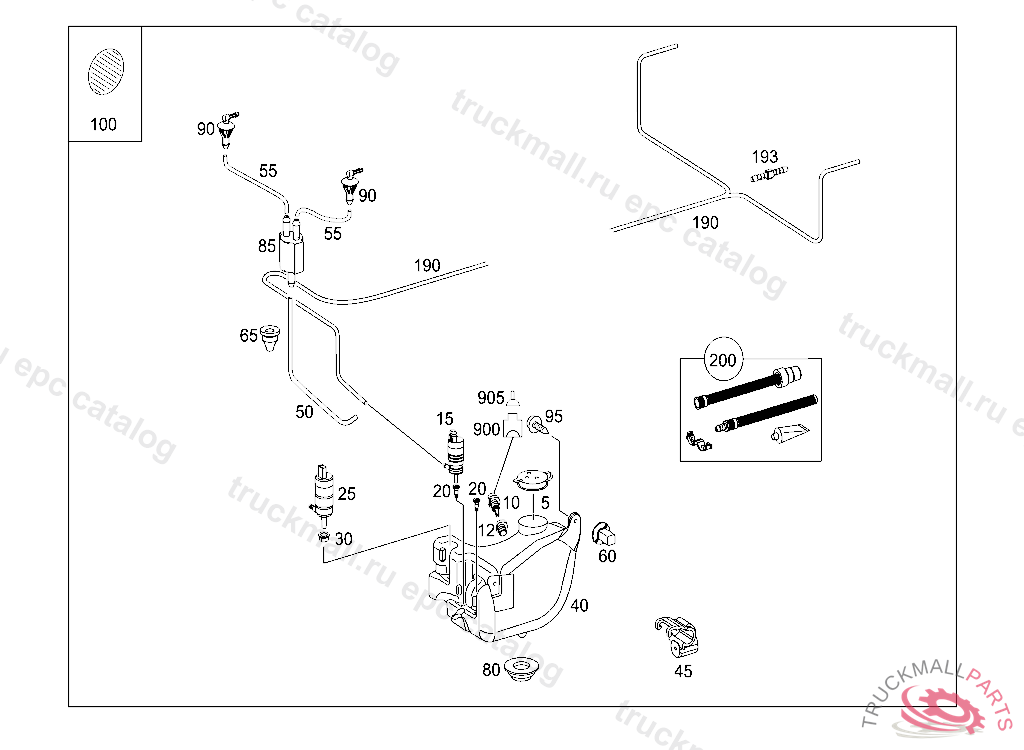

Поз.
Артикул
Описание
5
FILLER CAP , Replaced By: A1248690172
10
SWITCH WINDSHIELD WASHER WATER LEVEL
12
GROMMET WATER LEVEL SWITCH TO RESERVOIR
15
PUMP PANE WASHER SYSTEM
20
FORMED GROMMET BETWEEN RESERVOIR AND PUMP
25
PUMP HEADLAMP CLEANING SYSTEM
30
GROMMET FROM PUMP INTO RESERVOIR
40
40
WATER CONTAINER
45
HOSE BRACKET FRONT CROSS MEMBER
50
HOSE ASSEMBLY FROM CHECK VALVE TO CONNECTOR
55
HOSE ASSEMBLY FROM CHECK VALVE TO CONNECTOR
60
TREENAIL
65
SEALING GROMMET
80
GROMMET RESERVOIR TO WHEELHOUSE
85
CHECK VALVE (CHECK VALVE),WINDSHIELD WASHER, 000 159697 003 078977 007 064070 083 004734 086 003596 093 004546 102,103 149491 105 164442 183 008116 190 011709
90
CONNECTOR
95
TAPPING SCREWSCHRAUBPUNKT SRS PLAKETE, A 328811 EXCEPT CODE 806 ALSO INSTALLED IN VEHICLE TO A 328810 WITH CODE 807
100
ADHESIVE TAPE PIPING
190
HOSE FROM RIGHT NOZZLE TO CHECK VALVE 900 MM
193
FITTING REAR WIPER SYSTEM
200
HOSE REPAIR KIT
900
PIN BUSHING HOUSING OUTBOARD TEMPERATURE FEELER 2-PIN CODE A,B4,126373
905
GASKET GREEN 0.5-0.75 MM2, PIN 01 - 56
905
CONTACT BUSHING WITH SINGLE-WIRE SEAL 0.5MM2,126373
