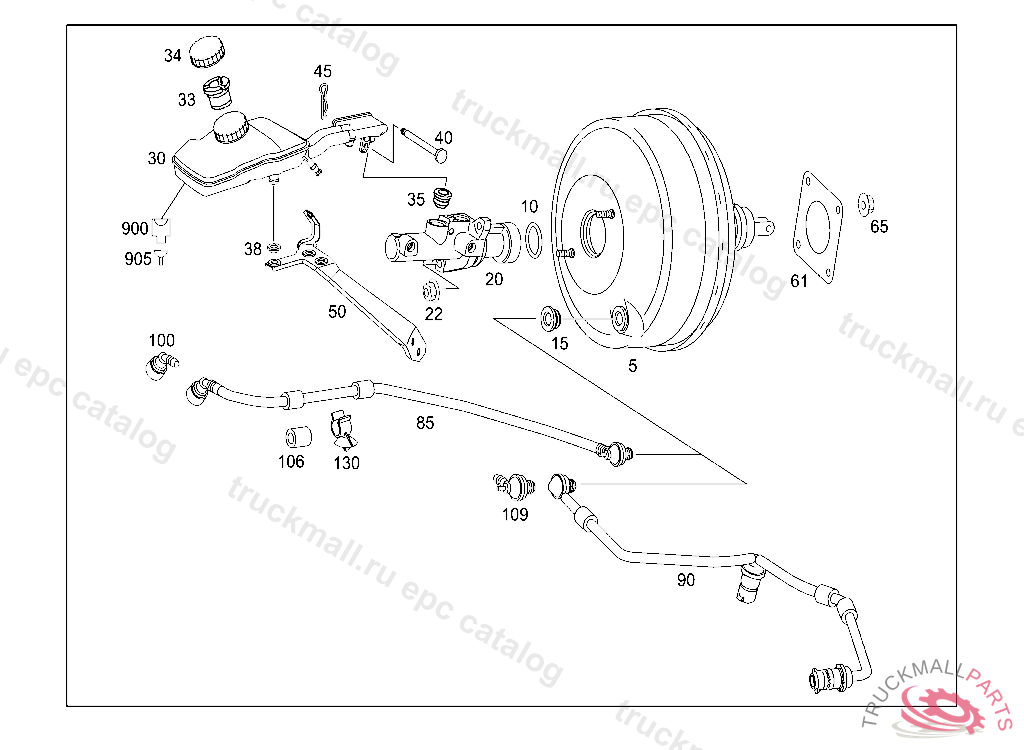

Поз.
Артикул
Описание
5
BRAKE BOOSTER
10
SEAL RING MASTER CYLINDER TO BRAKE BOOSTER
15
SEALING GROMMET VACUUM LINE TO BRAKE BOOSTER, N 43098520090930 E 05718420110729 20140228
20
MASTER BRAKE CYLINDER
22
NUT MASTER BRAKE CYLINDER AT BRAKE BOOSTER
30
DASHPOT BRAKE FLUID RESERVOIR
33
STRAINER BRAKE FLUID RESERVOIR
34
EXPANSION PLUG , S 41986920090930 E 03480320100507
35
FEED-THROUGH GROMMETTRW
38
SEAL RING TANDEM BRAKE MASTER CYLINDER TO BRAKE BOOSTER
40
PIN RESERVOIR TO MASTER CYLINDER
45
COTTER PIN RESERVOIR TO MASTER CYLINDER
50
BRACKET RESERVOIR
61
GASKET BRAKE BOOSTER TO PEDAL BEARING BRACKET
65
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
85
90
VACUUM LINE
100
CLUTCH. COUPLING VACUUM LINE ON ENGINE END
106
HOSE (RETURN LINE),FROM STEERING TO OIL TANK
109
VALVE
900
PIN BUSHING HOUSING OUTBOARD TEMPERATURE FEELER 2-PIN CODE A,B4,126373
905
GASKET GREEN 0.5-0.75 MM2, PIN 01 - 56
905
CONTACT BUSHING WITH SINGLE-WIRE SEAL 0.5MM2,126373
905
GASKET. BLIND PLUG BLUE
