Mercedes A1232910082 - Накладка педали тормоза

LUXUSKOMBI 636.813

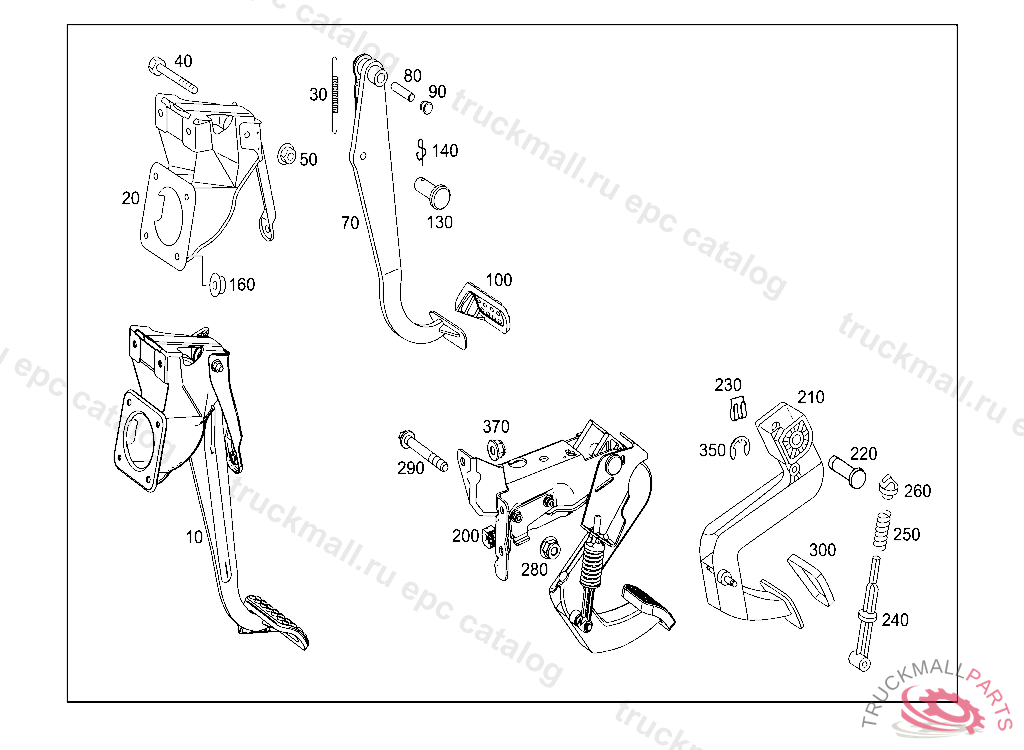

29 PEDAL ASSEMBLY - 090 CLUTCH AND BRAKE PEDAL ASSEMBLY

Поз.
Артикул
Описание
10
A6392902901
PEDAL SYSTEM BRAKE PEDAL
20
A6392900219
PEDAL BEARING BRACKET
30
A6399930011
SPRING
40
A0079903004
BOLT
40
N910105008009
HEXAGON HEAD BOLT. SCREW CLUTCH PRESSURE PLATE TO FLYWHEEL M 8X1,25X60
50
N913023008002
NUT ENGINE MOUNTING M8
70
A6392900218
BRAKE PEDAL
70
A6392900318
BRAKE PEDAL
80
A6392940053
SPACER TUBE TO BRAKE PEDAL
90
A6392910050
BUSHING TO BRAKE PEDAL
100
A1232910082
PAD BRAKE PEDAL
100
A1702900182
PAD BRAKE PEDAL
130
A6392920074
PIN ROD TO BRAKE PEDAL,L 01.03.07B 01.03.07
140
N912011008000
LOCK ROD TO BRAKE PEDAL,L 01.03.07B 01.03.07
160
N000000003175
NUT BRACKET TO BATTERY IMPLEMENT CARRIER M8
280
N913023006001
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
