Поз.
Артикул
Описание
5
5
5
5

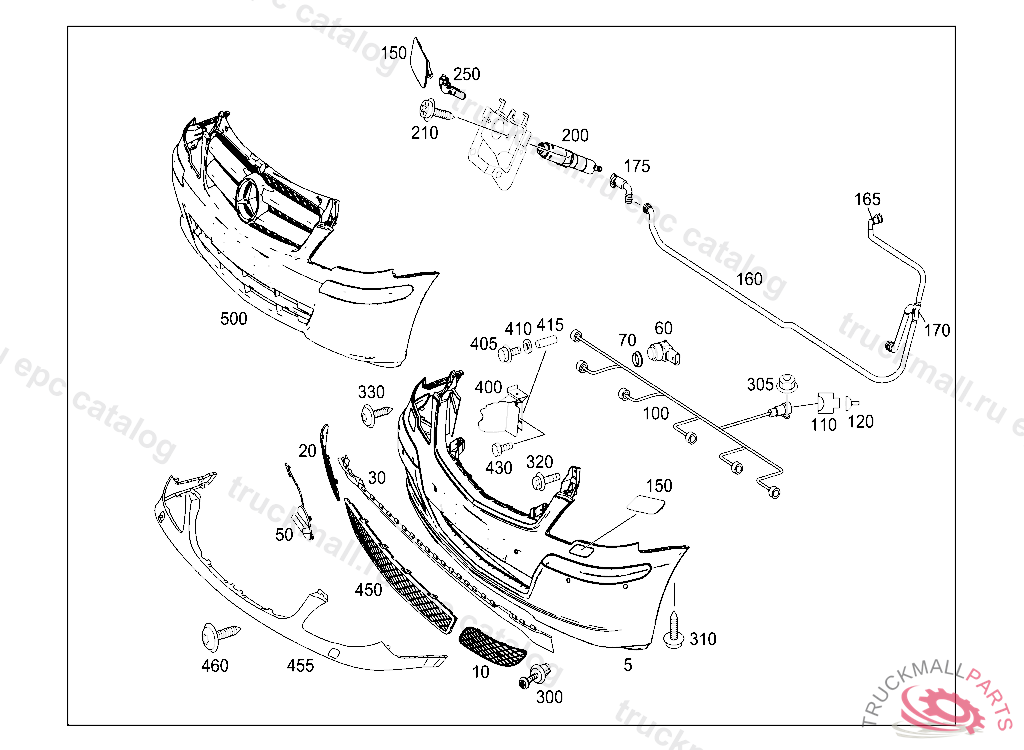

BUMPER FRT , 9999QFT636L9000 COLORLESS
5
FRONT BUMPER , 15857020050606360347120100906 TO BE PAINTED PRIOR TO INSTALLATION 9999QFT639L9000 COLORLESS
10
ORNAMENTAL MOLDING LEFT
20
ORNAMENTAL MOLDING RIGHT
30
PANELING FRONT SPOILER,360347120100831 9051QFT639A6007 BLACK
50
COVER TOWING EYE TOWING EYE, 9999QFT636L9000 COLORLESS
50
COVER FLAP TOWING EYE
60
DISTANCE SENSOR , TO BE PAINTED PRIOR TO INSTALLATION
60
DISTANCE SENSOR , WITH STANDARD BUMPER, PAINT PARKTRONIC SENSOR IN 7129
60
SENSOR CENTRAL, TO BE PAINTED PRIOR TO INSTALLATION
70
SPACER RING PARKTRONIC SYSTEM, A 55589720030630804 E 02000020070101804 A 97499920070630 E 06000020080901809
70
SPACER RING SENSOR, PARKTRONIC SYSTEM,367361420110630
100
ELECTRICAL WIRING HARNESS PARKTRONIC SYSTEM, FRONT
100
WIRING HARNESS PARKTRONIC SYSTEM, FRONT,360347120100906
110
PLUG SOCKET
120
PLUG PIN1.0 MM
150
150
160
HOSE HEADLAMP CLEANING SYSTEM,360347120100831
165
HOSE CONNECTION FITTING HEADLAMP-WASHER PUMP
170
CONNECTION CONNECTOR
175
CONNECTOR
200
TELESCOPIC NOZZLE HEADLAMP WIPER/WASHER,360347220100831
210
BOLT PANELLING TO DOOR, A 18446520080530 L 01087820080531 V 00067820080531 F 13037120080131 R 03697120080521
250
NOZZLE LEFT,360347220100831
250
NOZZLE RIGHT,367361320110630
300
RIVET SEALING LIP TO RADIATOR
300
305
HEXAGON NUT ELECTRIC CABLE TO ALTERNATOR TERMINAL B-
310
TAPPING SCREWSCHRAUBPUNKT SRS PLAKETE, A 328811 EXCEPT CODE 806 ALSO INSTALLED IN VEHICLE TO A 328810 WITH CODE 807
310
TAPPING SCREW STEERING COLUMN MOUNTED SWITCH PLUGCONNECTION 4.8X13
320
SCREW BRACKET TO CROSS CONNECTION STRUT
330
BOLT SIREN TO BRACKET 7X20
400
BRACKET RIGHT
400
BRACKET LEFT,367361420110630
400
BRACKET RIGHT,367361320110630
400
BRACKET LEFT
405
410
WASHER LINE MOUNTING
415
430
SCREW LICENSE PLATE TO BRACKET
450
450
PROTECTIVE GRILLE BUMPER FRONT CENTER, 9B51QFT636A6013 ANTHRACITE
455
FENDER SKIRT FRONT BUMPER
460
BOLT FASTENING, LEFT OUTER BUMPER 5X16
