Поз.
Артикул
Описание

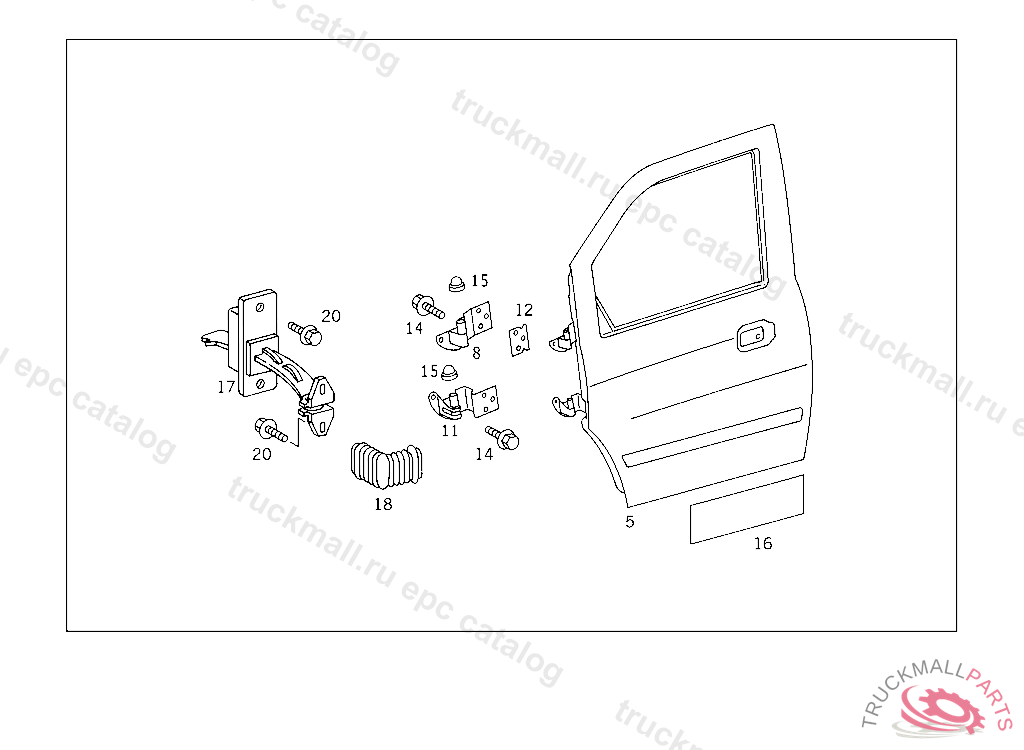

5
DOOR SHELL RIGHT,081761
5
DOOR SHELL LEFT,081762
5
DOOR SHELL LEFT,081761
5
DOOR SHELL
5
DOOR SHELL RIGHT,081762
5
DOOR SHELL , Replaced By: A6387200205
5
DOOR SHELL , Replaced By: A6387201205, +001A6387202037, +001A6387202237
5
DOOR SHELL , Replaced By: A6387201305, +001A6387202137, +001A6387202337
5
DOOR SHELL , Replaced By: A6387201005
5
DOOR SHELL , Replaced By: A6387201105
8
HINGE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 191170, Replaced By: A6387202237
8
HINGE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 191170, Replaced By: A6387202337
8
HINGE TOP LEFT
8
HINGE TOP RIGHT
11
HINGE BOTTOM LEFT
11
HINGE BOTTOM RIGHT
11
HINGE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 191170, Replaced By: A6387202037
11
HINGE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 191170, Replaced By: A6387202137
12
PAD TOP LEFT AND RIGHT,131089
14
SCREW STOP TO BATTERY CASE
14
HEXAGON HEAD BOLT BRACKET TO BRACKET M8X25
15
FASTENER BUTTON GROUND CONNECTION M8-SW
16
INSULATION600X200X1,5 MM, TO BE ADAPTED DURING ASSEMBLY
17
DOOR CHECK LEFT
17
DOOR CHECK RIGHT
18
GROMMET CABLE PASSAGE
20
SCREW SLIDE TO DOOR M 6X20
