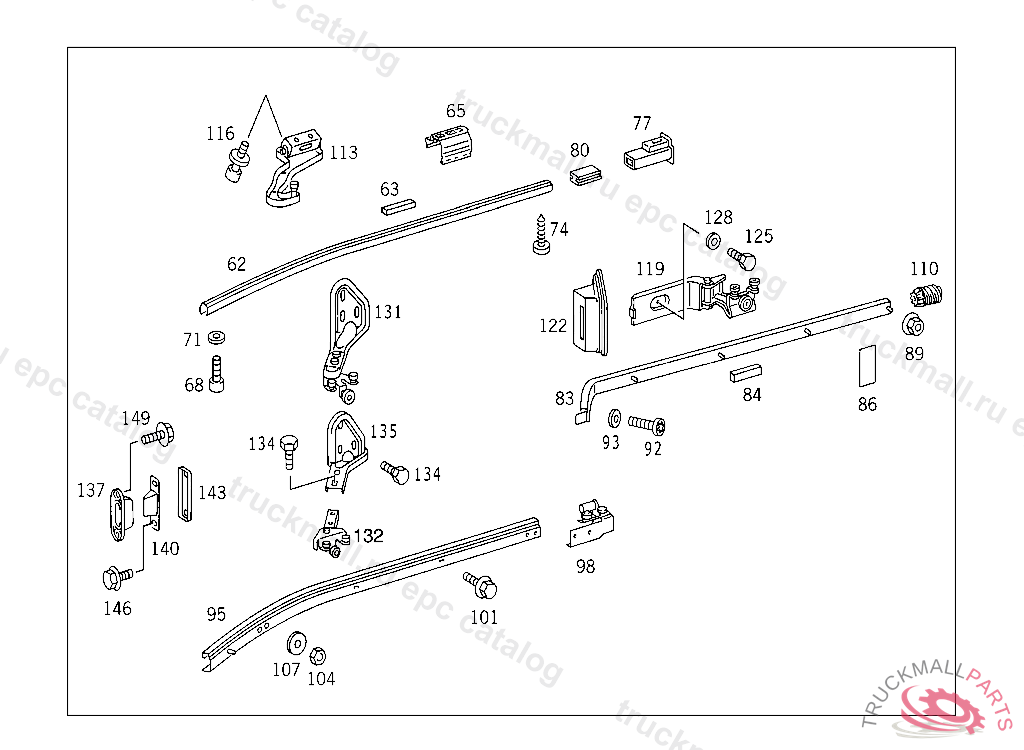

Поз.
Артикул
Описание
62
RAIL LEFT SLIDING DOOR GUIDE FOR DELIVERY VAN
62
RAIL SLIDING DOOR GUIDE, RIGHT FOR DELIVERY VAN
63
BASE
65
CLIP MOUNTING, COVER
68
SCREW RAIL MOUNTING LEFT AND RIGHT M 6X12
71
WASHER
74
SHEET METAL SCREW OIL LINE MOUNTING
77
STOP TOP LEFT AND RIGHT
80
STOP TOP LEFT AND RIGHT
83
RAIL CENTRAL RIGHT
83
RAIL CENTRAL LEFT
84
BASE
86
PAD
89
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
92
COMBINATION BOLT , Replaced By: A0029903412, +001N000125006421
92
SCREW RAIL ATTACHMENT,MIDDLE M 6X12
93
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
95
RAIL BOTTOM LEFT
95
RAIL BOTTOM RIGHT
98
DOOR CHECK LEFT
98
DOOR CHECK RIGHT
101
SCREW PUMP TO BRACKET
104
NUT SPRING-LOADED PUSH ROD
107
WASHER COMPRESSED AIR LINE TO BRACKET
110
RUBBER BUFFER
113
DOOR SLIDE MECHANISM TOP RIGHT
113
DOOR SLIDE MECHANISM TOP LEFT
116
COMBINATION BOLT DOOR SLIDE MECHANISM TO DOOR M 8X20
119
DOOR SLIDE MECHANISM TO CENTER LEFT DOOR
119
DOOR SLIDE MECHANISM TO CENTER RIGHT DOOR
122
SEAL LEFT AND RIGHT
125
HEXAGON HEAD BOLT DOOR SLIDE MECHANISM TO DOOR M10X1X20
128
WASHER RADIATOR TO RUBBER MOUNTING
131
DOOR SLIDE MECHANISM , Replaced By: A6387601947, +001A6387630137, +002N304017008026
131
DOOR SLIDE MECHANISM , Replaced By: A6387601847, +001A6387630037, +002N304017008026
132
DOOR SLIDE MECHANISM BOTTOM RIGHT
132
DOOR SLIDE MECHANISM BOTTOM LEFT
134
SCREW CLAMP TO EXHAUST PIPE AND TO FLEXIBLE METAL TUBE M 8X25
135
SUPPORTING ARM BOTTOM LEFT
135
SUPPORTING ARM BOTTOM RIGHT
137
SLIDE TOP AND BOTTOM,LEFT AND RIGHT
137
SLIDE
137
SLIDE , Replaced By: A9017660161
140
DETENT TOP AND BOTTOM,LEFT AND RIGHT
143
PAD TOP AND BOTTOM,LEFT AND RIGHT
146
SCREW PUMP TO BRACKET
149
SCREW SLIDE TO DOOR M 6X20
