Mercedes A0015450709 - ЗАЖИМ

VITO 110 D 638.174

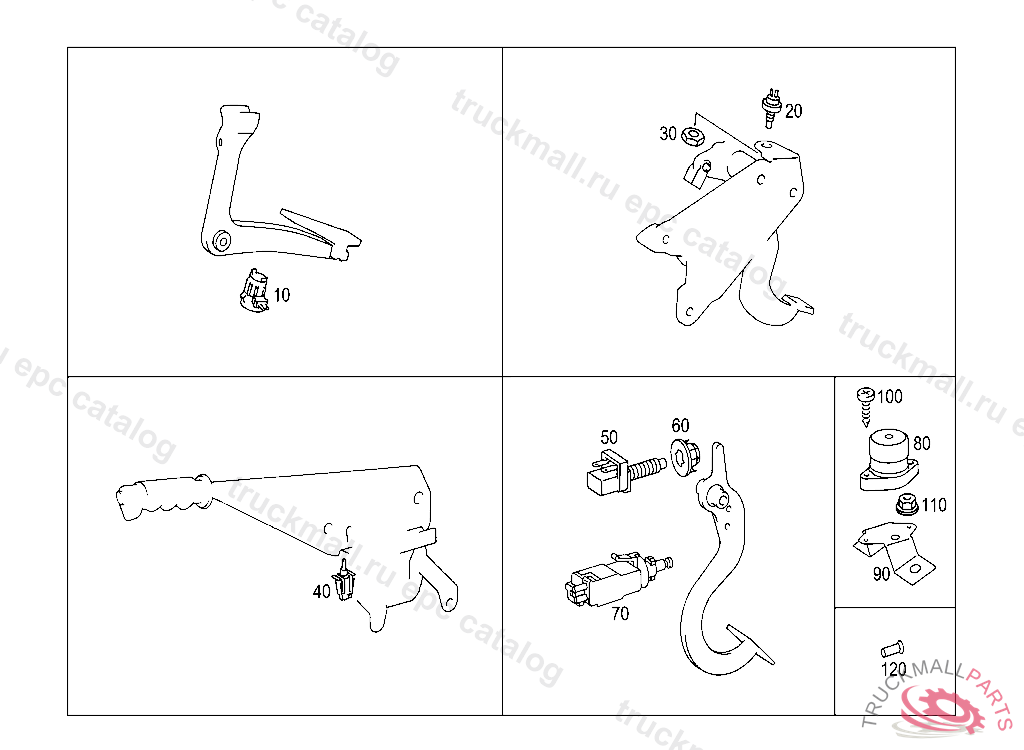

54 ELECTRICAL EQUIPMENT AND INSTRUMENTS - 535 SWITCH HAND BRAKE INDICATOR LAMP AND PEDAL ASSEMBLY

Поз.
Артикул
Описание
10
A0015456314
SWITCH , NOT USED
10
A0015457814
SWITCH , NOT USED
20
A0005456909
SWITCH STOP LIGHT
30
A0009909251
NUT SWITCH
50
A0015450709
SWITCH STOP LIGHT
60
A0005450485
TERMINAL STOP LIGHT SWITCH
80
A0005453714
SWITCH
80
A0015458914
SWITCH , A 394035 X 004165, J 036478 EXCEPT CODE 808 ALSO INSTALLED IN VEHICLE FROM A 394036 / X 004166 WITH CODE 807
90
A6385453740
BRACKET TAXI EMERGENCY WARNING SYSTEM
100
N007981003326
SHEET METAL SCREW CABLE CONNECTOR TO BRACKET
110
N913023006001
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
120
N046228000100
END-TYPE TERMINAL TAXI EMERGENCY WARNING SYSTEM
