Mercedes A6380940611 - Воздухозаборник

VITO 108 CDI, 110 CDI 112 CDI, 113, 114 638.194 TO IDENT-NR. 246705

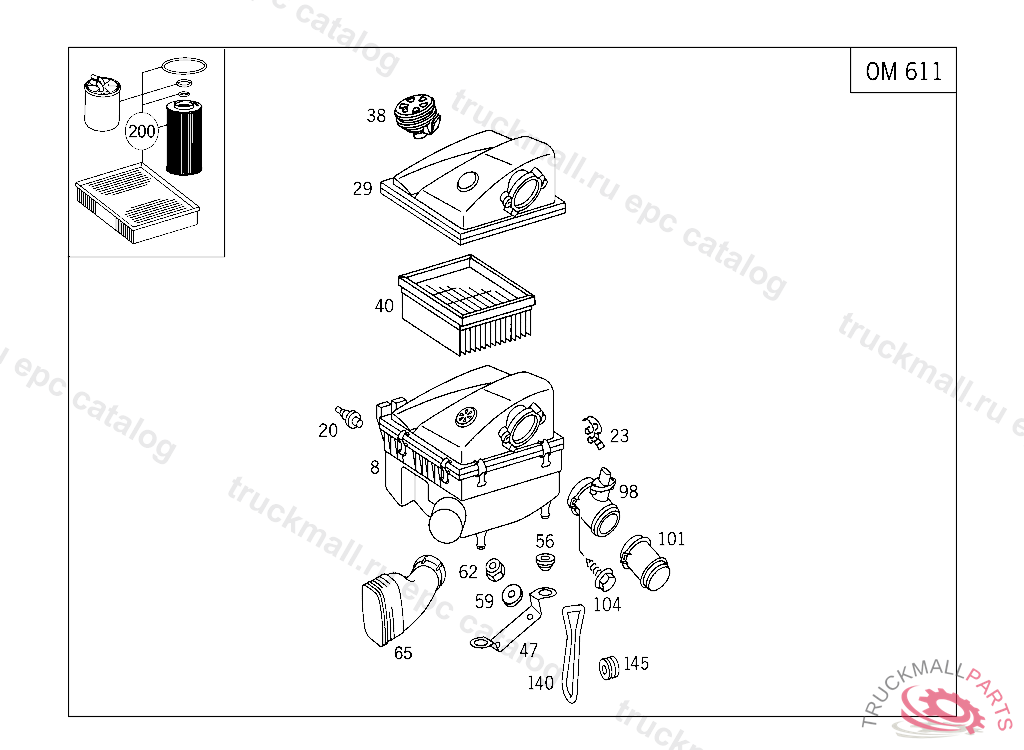

52 SHEET METAL / AIR INTAKE - 160 AIR INTAKE AND AIR CLEANER IL. 2

Поз.
Артикул
Описание
8
A6380902101
8
A6380902201
20
A6389880011
BUFFER
23
A0000943355
FASTENER
29
A0010948806
29
A0010948906
38
A0000944768
VACUUM BOX (MAINTENANCE INDICATOR)
40
A0030947504
FILTER ELEMENT , Replaced By: A0040942604
47
A6385281040
56
A6040940285
RUBBER BUMPER DAMPER FILTER TO BRACKET 10 MM
59
N009021006208
WASHER COMPRESSED AIR LINE TO BRACKET
62
N910113006001
NUT COMPRESSED AIR LINE TO LEFT SIDE MEMBER
65
A6380940511
SCOOP AIR INTAKE
65
A6380940611
98
A0000940948
MASS AIRFLOW SENSOR , F 136789(COUPE) T 000730(COUPE), T 054271(CABRIO) EXEPT ON VEHICULES WITH CODE 801 ALSO INSTALLED IN VEHICLE FROM T 000731(COUPE), T 054272(CABRI O), F 136790(COUPE) WITH CODE 800
101
A6380941782
104
N000000000927
TAPPING SCREW LIGHTING UNIT TO LATERAL STIFFENING 4.8X25
104
N914031004311
COMBINATION BOLT , Replaced By: N000000000927
200
A0001804009
TS FILTER INSERT PARTS KIT
200
A0001804109
