Mercedes N000912006095 - Болт

VITO 108 CDI, 110 CDI 112 CDI, 113, 114 638.194 TO IDENT-NR. 246705

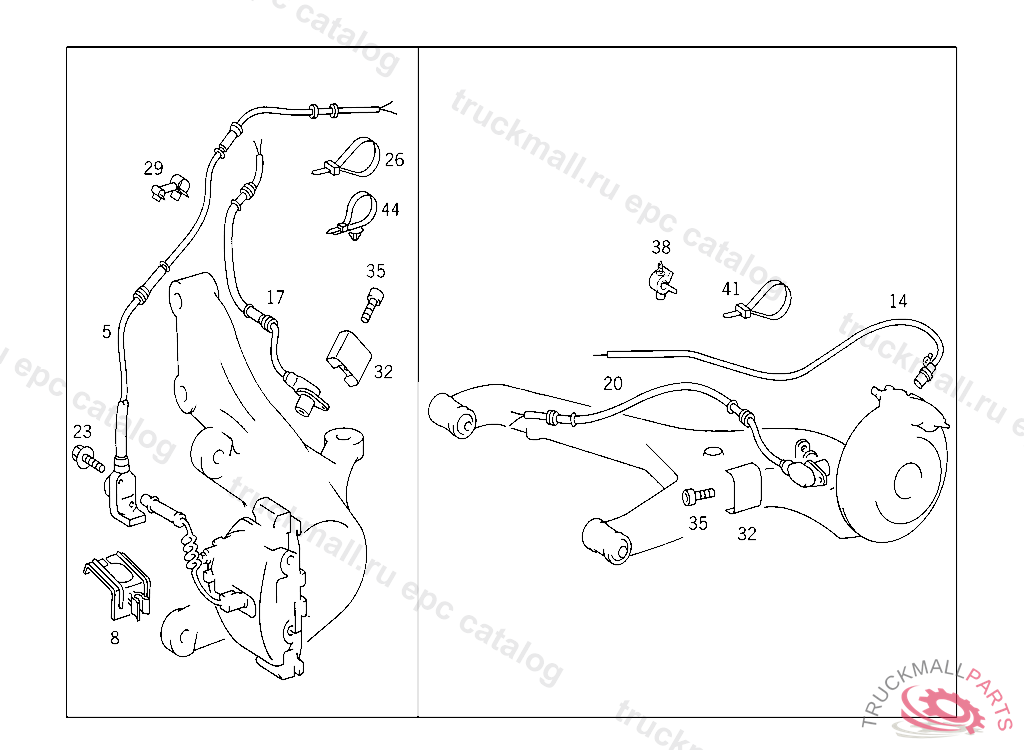

54 ELECTRICAL EQUIPMENT AND INSTRUMENTS - 665 BRAKE PAD WEAR INDICATOR AND SPEED SENSOR,FRONT AND REAR AXLE

Поз.
Артикул
Описание
5
A6385400736
ELECTRIC CABLE FRONT AXLE BRAKE LINING WEAR INDICATOR, TO BE ADAPTED DURING ASSEMBLY
8
A1265460743
BRACKET ADDITIONAL CABLE HARNESS TO WHEELHOUSE PANEL
14
A0005429318
SENDER UNIT REAR AXLE BRAKE LINING WEAR INDICATOR
17
A6385420217
SENDER UNIT RPM SENSOR, LEFT AND RIGHT
20
A6385420417
SENDER UNIT SPEED SENSOR TO REAR AXLE, LEFT AND RIGHT
23
N910106006008
SCREW SENSOR CABLE MOUNTING
26
A0019978390
LOOM TIE LINE MOUNTING 280 MM
29
A0019950444
CLAMP BRAKE LINING WEAR INDICATOR
32
A6385450046
COVERING SPEED SENSOR
35
N000912006004
SCREW , Replaced By: A0009847929
35
N000912006095
SCREW DOOR HANDLE TO DOOR
38
A0004760436
BRACKET LINE MOUNTING 11 MM
41
A0019974190
LOOM TIE , UP TO CHASSIS: 108.012 UNTIL PRODUCTION STOP 108.016 042417 108.018,019 043374 109.016 002452
41
A0019978390
LOOM TIE LINE MOUNTING 280 MM
44
A0059976290
CABLE STRAP LINE MOUNTING 260X3.3MM
