83 HEATING AND VENTILATION
›

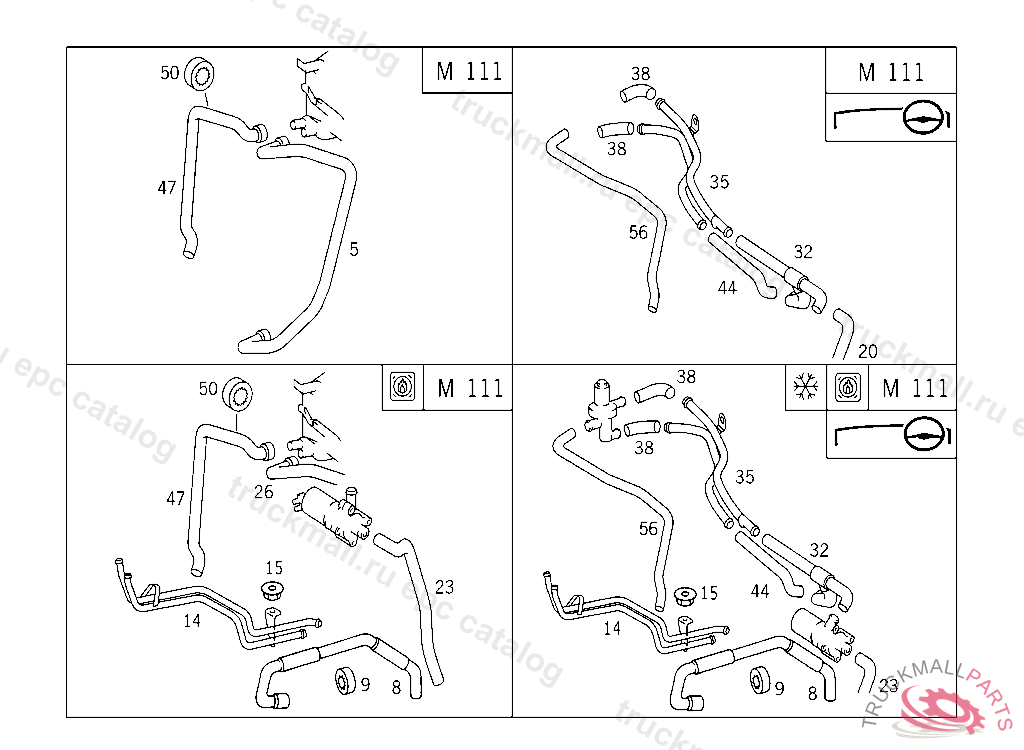

430 HEATING WATER LINE GASOLINE VEHICLES IL. 1
Mercedes A6388300596 - Шланг
VITO 108 CDI, 110 CDI 112 CDI, 113, 114 638.194 TO IDENT-NR. 246705
83 HEATING AND VENTILATION - 430 HEATING WATER LINE GASOLINE VEHICLES IL. 1
Поз.
Артикул
Описание
5
A6388321423
HOSE HEATING FEED
8
A6388300596
HOSE HEATING FEED
8
A6388327823
9
A1164661482
RUBBER RING
14
A6388300815
PIPE LINE FOR ADDITIONAL HEATER
15
N913023006001
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
20
A6388321723
HOSE HEATING FEED
23
A6388322423
HOSE FROM AUXILIARY HEATER TO HEAT EXCHANGER
26
A6388326323
HOSE FROM WATER PUMP TO HEAT EXCHANGER,094188
32
A6388322623
HOSE BETWEEN WATER VALVE AND RECIRCULATING PUMP
35
A6388303415
PIPE LINE ,188120, Replaced By: A6388304115, +001A6388327923
35
A6388304115
PIPE LINE HOSE LINE TO HEATER PIPE LINE,142111188121
38
A6388323523
HOSE HOSE LINE TO HEATER PIPE LINE
44
A6388327923
HOSE FROM VALVE TO HEAT EXCHANGER,188121
44
A6388322723
HOSE , Replaced By: A6388327923
47
A6388300696
HOSE RETURN LINE TO WATER PUMP
50
A1164661482
RUBBER RING
56
A6388322923
HOSE FROM RETURN LINE TO WATER PUMP
