VITO 108 CDI, 110 CDI 112 CDI, 113, 114
638.194 TO IDENT-NR. 246705

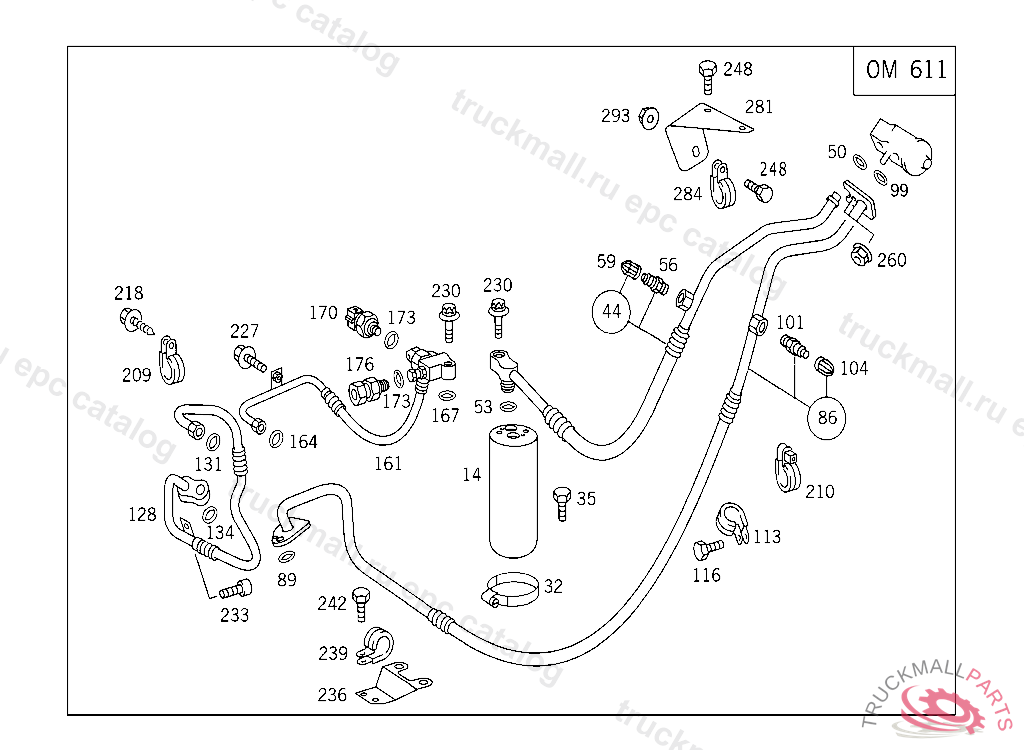

83 HEATING AND VENTILATION
090 AIR CONDITIONER IL. 3

Mercedes A6388302015 - ТРУБОПРОВОД

VITO 108 CDI, 110 CDI 112 CDI, 113, 114 638.194 TO IDENT-NR. 246705

83 HEATING AND VENTILATION - 090 AIR CONDITIONER IL. 3

Поз.
Артикул
Описание
14
A2208300083
DASHPOT
32
A6319974890
LOOM TIE
32
N000000000673
CLAMP HOSE TO RETARDER 60-80X13 MM
35
N304017006000
SCREW FROM THERMOSTAT TO RADIATOR
44
A6388302115
50
A1409970645
SEAL RING HOSE TO EXPANSION VALVE 7.5 MM
53
A2209970245
O-RING. SEAL RING9.5 X 2.5
56
A0018306384
VALVE
59
A1409880035
CAP
86
A6388302215
89
A2109970345
SEAL RING
99
A6389970845
SEAL RING
101
A0018302884
VALVE , NOT USED
104
A1409880135
CAP , NOT USED
113
N916016025201
CLAMP HOSE TO FLANGE AND TO VALVE
116
N304017006000
SCREW FROM THERMOSTAT TO RADIATOR
128
A6388321915
131
A1409970845
SEAL RING HOSE TO CONDENSER 14 MM
134
A1409970745
SEAL RING FROM LIQUID TANK TO T-FITTING
161
A6388302015
164
A1409970645
SEAL RING HOSE TO EXPANSION VALVE 7.5 MM
167
A2209970245
O-RING. SEAL RING9.5 X 2.5
170
A1408300072
SENSOR AT LIQUID TANK
173
A1409971145
SEAL RING FROM EXPANSION VALVE TO COMPRESSOR
176
A0018302684
VALVE
209
N916016015202
CLAMP LINE MOUNTING
210
A6388320191
218
N914128004306
SHEET METAL SCREW
227
N910105006012
SCREW. HEXAGON HEAD BOLT BATTERY AND ENGINE CABLE HARNESSES TO BRACKET M6X40
230
N910142008001
SCREW BRACKET TO BRACKET
233
A0019907212
SCREW SHIM TO LEAF SPRING
236
A6388321313
BRACKET PIPE LINE TO ENGINE,016686
239
N916016018201
CLAMP BRAKE HOSE BRACKET
242
N304017006016
SCREW PUMP TO BRACKET
248
N304017006016
SCREW PUMP TO BRACKET
260
N913023006001
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
281
A6388302014
284
N916016010211
CLAMP , Replaced By: N000000001045
293
N913023006001
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
