Поз.
Артикул
Описание
5

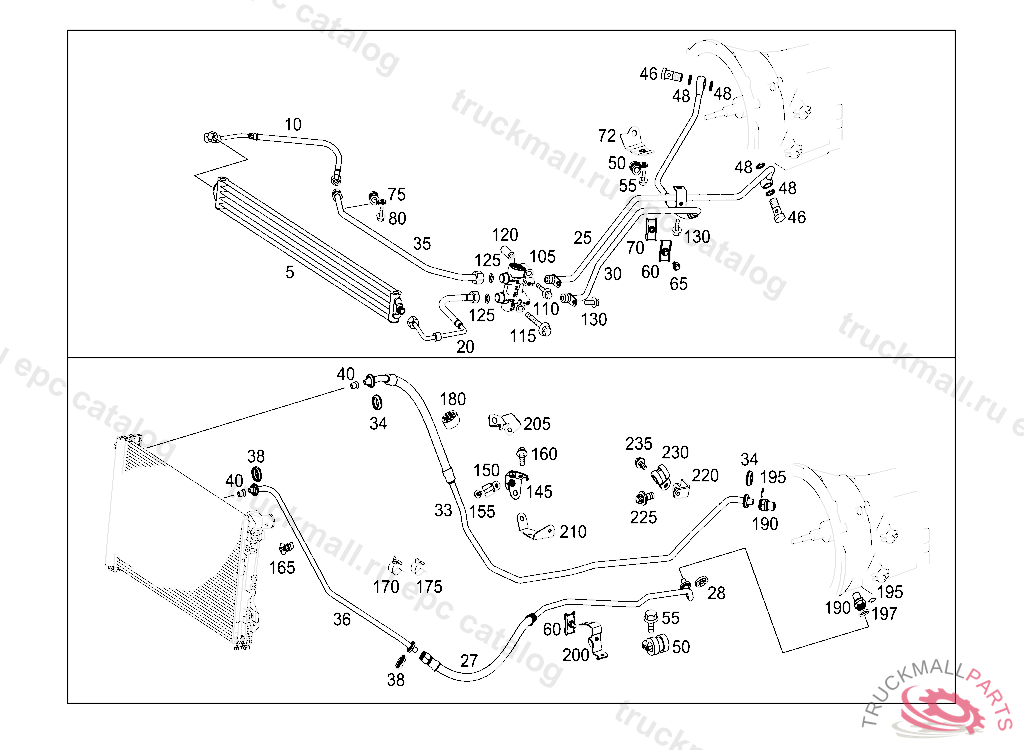

OIL COOLER ,328520820061031M 3261115
10
OIL COOLER LINE FROM OIL COOLER TO SEPARATION POINT,328520820061031M 3261115
10
OIL COOLER LINE FROM OIL COOLER TO SEPARATION POINT
20
OIL COOLER LINE OIL COOLER TO THERMOSTAT,328520820061031M 3261115
20
OIL COOLER LINE OIL COOLER TO THERMOSTAT
25
PIPE TORQUE CONV. HOUS. TO THERMOSTAT
25
PIPE TORQUE CONV. HOUS. TO THERMOSTAT,328520820061031M 3261115
27
OIL LINE TORQUE CONVERTER HOUSING TO CONNECTING POINT, 31388220070201
27
OIL LINE TORQUE CONVERTER HOUSING TO CONNECTING POINT
27
OIL LINE TORQUE CONVERTER HOUSING TO CONNECTING POINT
27
OIL LINE TORQUE CONVERTER HOUSING TO CONNECTING POINT, 31388320070201
27
OIL LINE TORQUE CONVERTER HOUSING TO CONNECTING POINT
27
OIL LINE TORQUE CONVERTER HOUSING TO CONNECTING POINT,328520920061031 P3261115
28
DUST PROTECTION CAP ON FEED LINE
28
PROTECTIVE CAP OIL LINE
30
PIPE THERMOSTAT TO TORQ. CONV. HOUSING,328520820061031M 3261115
30
PIPE THERMOSTAT TO TORQ. CONV. HOUSING
33
OIL LINE FROM OIL COOLER TO CONVERTER HOUSING
33
OIL LINE RETURN
33
OIL LINE FROM OIL COOLER TO CONVERTER HOUSING
33
OIL LINE FROM OIL COOLER TO CONVERTER HOUSING,328520920061031 P3261115
34
PROTECTIVE CAP OIL LINE
34
DUST PROTECTION CAP ON FEED LINE
35
PIPE THERMOSTAT TO CONNECTING POINT
35
PIPE THERMOSTAT TO CONNECTING POINT,328520820061031M 3261115
36
OIL LINE FROM OIL COOLER TO SEPARATION POINT
36
OIL LINE FROM OIL COOLER TO SEPARATION POINT,328520920061031 P3261115
36
OIL LINE FROM OIL COOLER TO SEPARATION POINT
36
OIL LINE FROM OIL COOLER TO SEPARATION POINT
38
PROTECTIVE CAP OIL LINE
40
COUPLING PLUG
46
BANJO BOLT OIL LINE TO TRANSMISSION CASE, Replaced By: N000000004748
46
BANJO BOLT OIL LINE TO TRANSMISSION CASE
48
SEAL RING OIL LINE TO TRANSMISSION 14X18
48
SEAL RING OIL LINE TO TRANSMISSION 14X18, Replaced By: A0002711160
50
CLAMP CABLE HARNESS MOUNTING
55
HEXALOBULAR BOLT. SCREW BRACKET TO TRANSMISSION M 6X15
60
CLAMP FASTENING, TRANSMISSION FLUID LINES
65
HEXALOBULAR BOLT. SCREW BRACKET TO TRANSMISSION M 6X15
70
CLAMP FASTENING, TRANSMISSION FLUID LINES
72
BRACKET OIL LINE TO OIL PAN
75
CLAMP CABLE HARNESS MOUNTING
80
HEXALOBULAR BOLT. SCREW BRACKET TO TRANSMISSION M 6X15
105
VALVE OIL TEMPERATURE REGULATOR,328520820061031M 3261115
110
HEXALOBULAR BOLT. SCREW CLAMP ON BRACKET M 6X35
115
SCREW. HEXALOBULAR BOLT CLAMP MOUNTING M6X63
120
SPACER TUBE MUFFLER TO BRACKET
125
SEAL RING OIL LINE TO OIL COOLER
130
HEXALOBULAR BOLT. SCREW BRACKET TO TRANSMISSION M 6X15
145
BRACKET OIL LINE TO ENGINE
145
BRACKET OIL LINE TO ENGINE
150
CLAMP CABLE HARNESS MOUNTING
155
SCREW CONDENSER TO CHARGE AIR INTERCOOLER M6 X 12
155
HEXALOBULAR BOLT. SCREW BRACKET TO TRANSMISSION M 6X15
160
HEXALOBULAR BOLT. SCREW BRACKET TO TRANSMISSION M 6X15
160
HEXALOBULAR BOLT MOUNTING PARTS M8X16
165
MOUNTING CLIP FEED LINE TO FAN SHROUD
165
LINE HOLDER ON RADIATOR CONSOLE
170
CLAMP BRAKE HOSE
175
CLAMP , Replaced By: A0005465143
180
RUBBER RING
190
SCREW-IN FITTING FEED LINE AND RETURN LINE
190
SCREW-IN FITTING OIL LINES, Replaced By: A0039972571
195
DETENT SPRING OIL LINE
197
O-RING RIGHT 9.25X1.78
197
O-RING TRANSMISSION OIL LINE TO OIL COOLER 9.25X1.78
200
BRACKET OIL LINE TO OIL PAN
205
BRACKET TRANSMISSION FLUID LINE
210
BRACKET RETURN LINE
220
BRACKET OIL LINE TO CONVERTER HOUSING
225
HEXALOBULAR BOLT FASTENING OF WIRING HARNESS AT TRANSMISSION M8X16
230
CLAMP CABLE HARNESS MOUNTING
235
SCREW CONDENSER TO CHARGE AIR INTERCOOLER M6 X 12
235
HEXALOBULAR BOLT. SCREW BRACKET TO TRANSMISSION M 6X15
