Поз.
Артикул
Описание

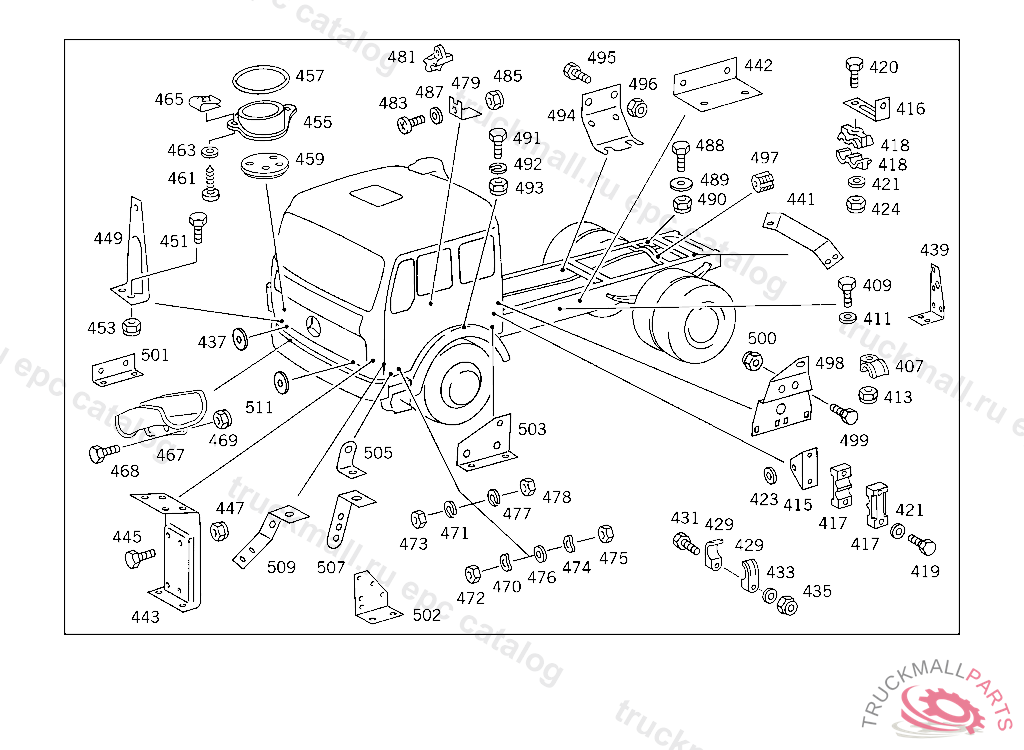

407
CLAMP BATTERY CABLE TO FRAME SIDE MEMBER NEAR TRANSMISSION
409
SCREW , Replaced By: N304017006026
409
SCREW SUPPORT TO FENDER
409
SCREW , Replaced By: N304017008018
411
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
413
NUT PUMP TO BRACKET
413
NUT , Replaced By: N913004006001
413
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
413
NUT , Replaced By: N913004008001
415
BRACKET FRAME MOUNTED CABLE HARNESS AND BATTERY CABLE TO BELL HOUSING
417
CLAMPING PIECE BATTERY CABLE TO FRAME SIDE MEMBER NEAR TRANSMISSION
419
SCREW , Replaced By: N304017006026
420
SCREW DISTRIBUTOR TO CAB
421
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
423
WASHER RADIATOR TO RUBBER MOUNTING
423
WASHER , Replaced By: N000125010532
429
CLAMP BATTERY CABLE TO FRAME SIDE MEMBER NEAR TRANSMISSION
429
CLAMP BATTERY CABLE TO FRAME SIDE MEMBER NEAR TRANSMISSION
429
CLAMP BATTERY CABLE TO FRAME SIDE MEMBER NEAR TRANSMISSION
431
SCREW , Replaced By: N304017006026
433
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
435
NUT PUMP TO BRACKET
435
NUT , Replaced By: N913004006001
437
WASHER BRACKET TO LEFT SIDE MEMBER
437
WASHER , Replaced By: N009021008213
439
BRACKET FRAME MOUNTED CABLE HARNESS
441
BRACKET FRAME MOUNTED CABLE HARNESS
445
SCREW PIPE CLAMP
445
SCREW , Replaced By: N304017008021
447
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
447
NUT , Replaced By: N913004008001
455
BRACKET CABLE HARNESS MOUNTING
455
BRACKET CABLE HARNESS MOUNTING
457
SEAL RING TO SEAL CABLE HARNESS OPENING IN CAB
459
GASKET BRACKET
461
SHEET METAL SCREW ELECTRIC CABLE THRU CAB FLOOR
463
WASHER CABLE CONNECTOR TO BRACKET AND TO FRAME,RESP.
463
WASHER , Replaced By: N009021005205
465
LOCK ELECTRIC CABLE THRU CAB FLOOR
467
BRACKET LEFT
467
BRACKET RIGHT
468
SCREW PIPE CLAMP
468
SCREW , Replaced By: N304017008021
469
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
469
NUT , Replaced By: N913004008001
470
SPRING WASHER ELECTRIC CABLE TO ALTERNATOR
471
SPRING WASHER ALTERNATOR CONNECTION D+
471
SPRING WASHER HEATER PLUG CABLE HARNESS
472
NUT BOOT TO AIR DUCT AND TO AIR CLEANER
473
NUT IN CASE OF SUBSEQUENT INSTALLATION
473
NUT , Replaced By: N304032005005
474
SPRING WASHER ALTERNATOR CONNECTION W
475
NUT BALL PIVOT TO LEVER
476
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
477
LOCK WASHER BRACKET TO STEERING COLUMN END
478
NUT IN CASE OF SUBSEQUENT INSTALLATION
478
NUT , Replaced By: N304032005005
479
BRACKET CABLE HARNESS MOUNTING
479
BRACKET , Replaced By: A6205463543
481
BRACKET CABLE HARNESS MOUNTING
483
SCREW CONTROL UNIT TO CAB
483
SCREW BRACKET TO CROSS CONNECTION STRUT
483
SCREW , Replaced By: N304017008034
485
NUT TWO-WAY VALVE TO BRACKET
485
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
485
NUT , Replaced By: N913004008001
487
WASHER EXHAUST MUFFLER TO STRAP
487
WASHER , Replaced By: N000125008443
488
SCREW REAR EXHAUST PIPE TO MUFFLER
488
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
488
SCREW , Replaced By: N304017008027
489
WASHER BRACKET TO COVERING
489
WASHER , Replaced By: N009021010209
490
NUT STRAP TO BRACKET
490
NUT , Replaced By: N910113010000
490
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
490
NUT , Replaced By: N913004008001
491
SCREW CAB FLOOR COVERING M 6X25
492
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
493
NUT BALL PIVOT TO LEVER
497
BRACKET LINE MOUNTING
498
BRACKET FINAL CONTROL ELEMENT,5 090350
499
SCREW PUMP TO BRACKET
499
SCREW , Replaced By: N304017006016
500
NUT PUMP TO BRACKET
500
NUT , Replaced By: N913004006001
501
BRACKET AT BRACKET
507
BRACKET ENGINE CABLE HARNESS PLUG-CONNECTION,5 452356
511
WASHER BRACKET TO LEFT SIDE MEMBER
511
WASHER , Replaced By: N009021008213
999
DIAGRAM PAPER SET100 PIECES
999
PLUG HOUSING 4-POLE, MODULE "V"
999
SWITCH , Replaced By: A0005455913
999
SOCKETTO 003 542 46 16,99 16
999
BOOT , Replaced By: A0005455945, +001A0035452226
999
PLUG 37-POLE PLUG SOCKET
999
SWITCH , Replaced By: A0025456907
999
SWITCH , Replaced By: A0025457607
999
INSTRUMENT CLUSTER , Replaced By: A0035409647
999
ROUND PIN BUSHING
999
PLUG SOCKET. PIN BUSHING HOUSING , Replaced By: A0035452226, +001A0005455945
999
LENS , Replaced By: A0065451990
999
CONTROL UNIT , Replaced By: A0065456732
999
PLUG HOUSING 3-POLE
999
LENS , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0065454090
999
LENS LIMITATION OF ENGINE SPEED
999
PLUG
999
PLUG 15-POLE TRAILER PLUG SOCKET
999
RUBBER BUFFER , Replaced By: A1119871340
999
CABLE HARNESS , Replaced By: A6175401507
999
MARKING STRIP FUSE BOX
999
BRACKET , Replaced By: A6525222240
999
BRACKET , Replaced By: A6525222240
999
BRACKET ELECTRIC CABLE TO FRAME SIDE MEMBER,5 259747
999
GROMMET LINE MOUNTING 50/45 MM
999
GROMMET FUEL LINE THRU FRAME SIDE MEMBER,5 406237
999
BRACKET BATTERY CABLE TO CROSS MEMBER
999
BRACKET BATTERY CABLE TO CROSS MEMBER
999
BRACKET FRAME MOUNTED CABLE HARNESS AND BATTERY CABLE TO BELL HOUSING
999
SHEET METAL SCREW , Replaced By: A0009909236
