Поз.
Артикул
Описание

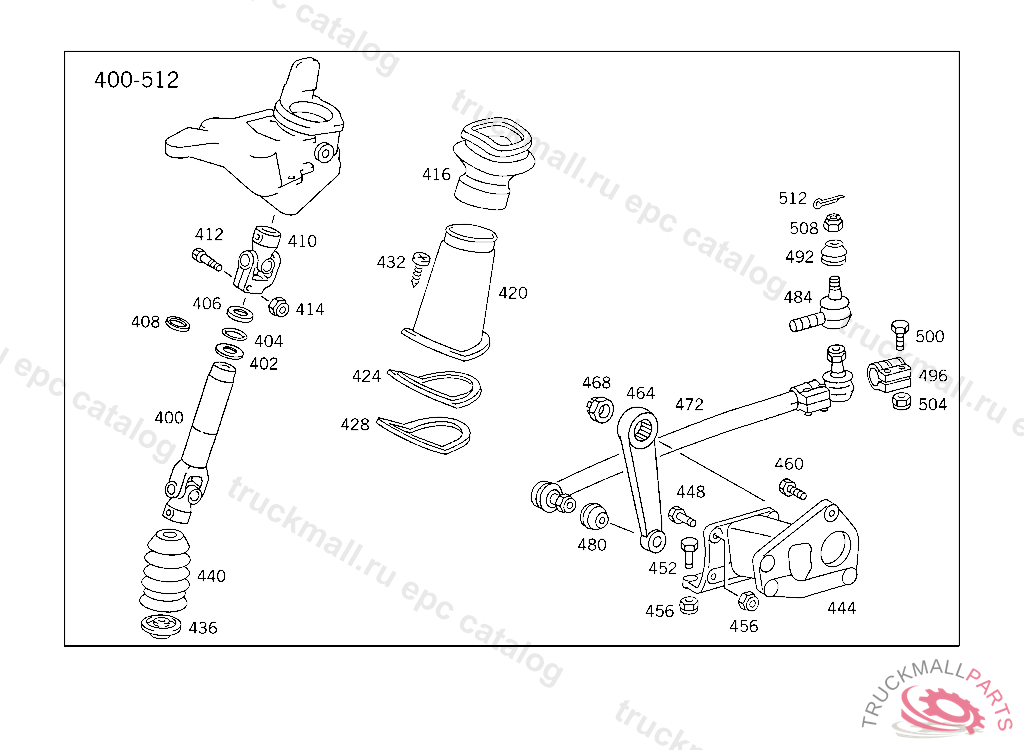

400
STEERING SHAFT
400
STEERING SHAFT
400
STEERING SHAFT , Replaced By: A6554600809
410
UNIVERSAL JOINT ,5 463985
410
UNIVERSAL JOINT ,5 463985
412
SCREW UNIVERSAL JOINT TO STEERING COLUMN M 8X38,5 463984
412
SCREW STEERING SHAFT TO STEERING M 8X42
412
SCREW STEERING SHAFT TO STEERING M 8X42
414
NUT STRAP TO BRACKET
414
NUT STRAP TO BRACKET
416
BOOT STEERING COLUMN COVERING,TOP, NO.8316INO.7C52INO.7B90INO.9051I II I
420
PROTECTIVE SLEEVE PROTECTIVE SLEEVE TO CAB FLOOR
424
REINFORCEMENT PROTECTIVE SLEEVE TO CAB FLOOR
428
GASKET PROTECTIVE SLEEVE TO CAB FLOOR
432
SHEET METAL SCREW BOOT TO CAB FLOOR
432
SHEET METAL SCREW , Replaced By: N007981005321
436
WASHER UNIVERSAL JOINT COVERING
440
BOOT UNIVERSAL JOINT COVERING, NO.8316INO.7C52INO.7B90INO.9051I II I
444
STEERING SUPPORT AT FRAME
444
STEERING SUPPORT AT FRAME
448
SCREW STEERING SUPPORT TO FRAME M 14X55
452
SCREW STEERING SUPPORT TO FRAME M 14X50
456
NUT STEERING SUPPORT TO FRAME
456
NUT , Replaced By: N910113014000
460
SCREW STEERING BOX ASSEMBLY TO STEERING SUPPORT
460
SCREW , Replaced By: N308676016006
464
PITMAN ARM
468
NUT PITMAN ARM TO STEERING BOX ASSEMBLY
468
NUT PITMAN ARM TO STEERING BOX ASSEMBLY,5 386585
472
DRAG LINKEHRENREICH
472
DRAG LINKLEMFOERDER
472
DRAG LINKEHRENREICH
472
DRAG LINKLEMFOERDER
480
BOOT DRAG LINK
484
DRAG LINK END , Replaced By: A0014607748
484
DRAG LINK END , Replaced By: A0014602248
484
DRAG LINK END , Replaced By: A0014601248, +001A0019905451
484
DRAG LINK END , Replaced By: A0014607748
484
DRAG LINK END , Replaced By: A0014602248
484
DRAG LINK END , Replaced By: A0014600848
492
BOOT DRAG LINK
496
CLAMP DRAG LINK END TO DRAG LINK EHRENREICH
496
CLAMP DRAG LINK END TO DRAG LINK LEMFOERDER
500
SCREW TORSION BAR TO SHACKLE,5 903514
500
SCREW ,5 903514, Replaced By: N000960012353
504
NUT SUPPORT TO SIDE MEMBER
508
NUT DRAG LINK TO LEVER
512
COTTER PIN DRAG LINK TO STEERING ARM AND PITMAN ARM
999
DRAG LINK END , Replaced By: A0004602848
999
DRAG LINK END , Replaced By: A0004602948
999
NUT DRAG LINK END M 24X1.5
999
PROTECTIVE CAP
999
UNIVERSAL JOINT ,5 463985, Replaced By: A0004600057, +002A3819900114
999
UNIVERSAL JOINT , Replaced By: A0004600157, +002A3819900114
999
BOOT , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0004621796
999
HOSE , Replaced By: A6999974082
999
HOSE , Replaced By: A3859971582
999
GUIDE , FIRST EXHAUST STOCK OF OLD PARTS FROM IDENT NO. 4 430730 - 5 468371, Replaced By: A3834600136
999
STEERING COLUMN END , FIRST EXHAUST STOCK OF OLD PARTS FROM IDENT NO. 4 727154 - 5 468371, Replaced By: A3054600452
999
HANDLE , Replaced By: A6754600369
999
HANDLE , Replaced By: A6554600469
999
BRACKET , Replaced By: A6564660040
999
DRAG LINK , Replaced By: A6204602805
999
DRAG LINK , Replaced By: A6204603805
999
DRAG LINK , Replaced By: A6204603705
999
DRAG LINK , Replaced By: A6204603905
999
BRACKET DELIVERY AND SUCTION LINES TO FRAME
999
BRACKET FUEL LINES TO TRANSMISSION
999
HANDLE , Replaced By: A6554600369
999
HOSE , Replaced By: A3859971682
999
CLAMPING SLEEVE , Replaced By: A6559910061
999
THREADED INSERT , Replaced By: A6559970015
999
NUT STRAP TO BRACKET
999
NUT , Replaced By: N910113010000
