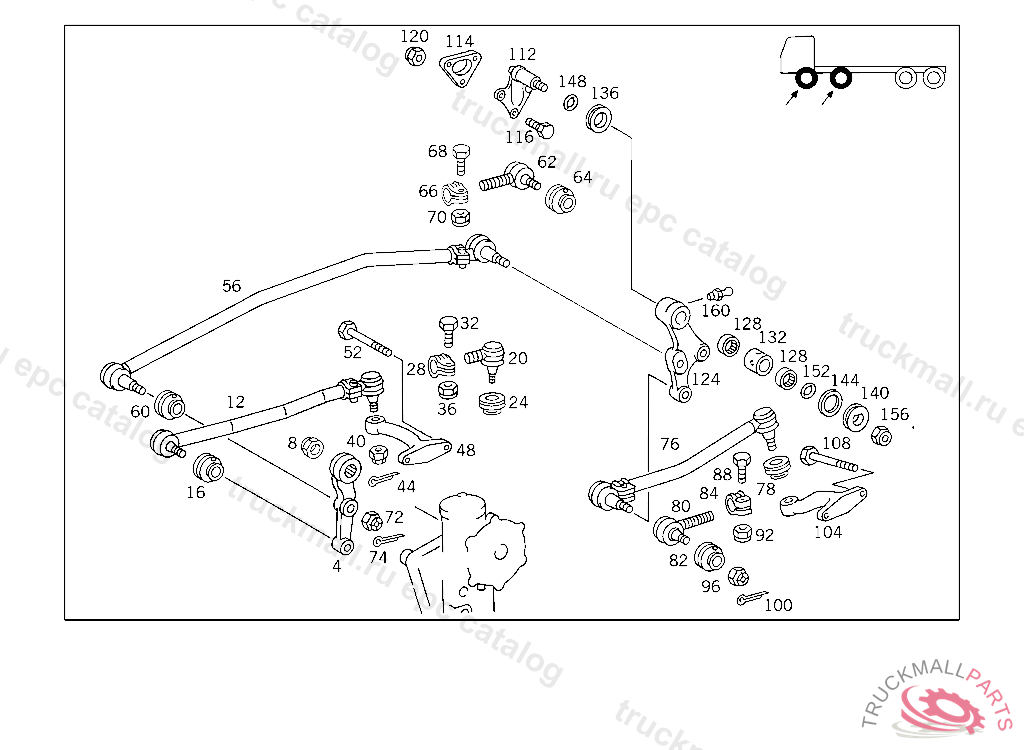

Поз.
Артикул
Описание
4
PITMAN ARM
4
PITMAN ARM
4
PITMAN ARM RIGHT
4
PITMAN ARM LEFT
8
NUT PITMAN ARM TO STEERING BOX ASSEMBLY,5 386585
12
DRAG LINK LEFT
12
DRAG LINK , Replaced By: A6204602805
12
DRAG LINKLEMFOERDER
12
DRAG LINKEHRENREICH
12
DRAG LINKLEMFOERDER
12
DRAG LINKEHRENREICH
16
BOOT DRAG LINK
20
DRAG LINK END , Replaced By: A0014600848
20
DRAG LINK END , Replaced By: A0014602248
20
DRAG LINK END , Replaced By: A0014607748
20
DRAG LINK END R.H. THREAD EHRENREICH
20
DRAG LINK END , Replaced By: A0014601248, +001A0019905451
20
DRAG LINK END , Replaced By: A0014602248
20
DRAG LINK END R.H. THREAD EHRENREICH
20
DRAG LINK END , Replaced By: A0004602848
24
BOOT DRAG LINK
28
CLAMP DRAG LINK END TO DRAG LINK LEMFOERDER
28
CLAMP DRAG LINK END TO DRAG LINK LEMFOERDER
28
CLAMP DRAG LINK END TO DRAG LINK EHRENREICH
28
CLAMP DRAG LINK END TO DRAG LINK EHRENREICH
32
SCREW , Replaced By: N308676012017
32
HEXAGON HEAD BOLT. SCREW CLAMP TO DRAG LINK
36
NUT SUPPORT TO SIDE MEMBER
40
NUT DRAG LINK TO LEVER
40
NUT DRAG LINK END M 24X1.5
44
COTTER PIN DRAG LINK TO LEVER
48
STEERING ARM LEFT
48
STEERING ARM LEFT
48
STEERING ARM , Replaced By: A3463382901
48
STEERING ARM FRONT AXLE I
48
STEERING ARM FRONT AXLE I
52
SCREW ENGINE SUPPORT TO BELL HOUSING M 22X75
56
DRAG LINK FROM PITMAN ARM TO INTERMEDIATE LEVER
56
DRAG LINK FROM PITMAN ARM TO INTERMEDIATE LEVER
56
DRAG LINK , Replaced By: A6994602805
56
DRAG LINK , Replaced By: A0804603505, +002A6993231984, +004N000961014130
56
DRAG LINK FROM PITMAN ARM TO INTERMEDIATE LEVER
56
DRAG LINK FROM PITMAN ARM TO INTERMEDIATE LEVER
56
DRAG LINK , Replaced By: A6244603105
56
DRAG LINK FROM PITMAN ARM TO INTERMEDIATE LEVER "LEMFOERDER"
56
DRAG LINK FROM PITMAN ARM TO INTERMEDIATE LEVER "EHRENREICH"
56
DRAG LINK FROM PITMAN ARM TO INTERMEDIATE LEVER
56
DRAG LINK FROM PITMAN ARM TO INTERMEDIATE LEVER
60
BOOT DRAG LINK
62
DRAG LINK END , Replaced By: A0014600848
62
DRAG LINK END , Replaced By: A0014602248
62
DRAG LINK END , Replaced By: A0014607748
62
DRAG LINK END R.H. THREAD EHRENREICH
64
BOOT DRAG LINK
66
CLAMP DRAG LINK END TO DRAG LINK LEMFOERDER
68
SCREW , Replaced By: N308676012017
68
HEXAGON HEAD BOLT. SCREW CLAMP TO DRAG LINK
70
NUT SUPPORT TO SIDE MEMBER
72
NUT DRAG LINK TO LEVER
72
NUT , Replaced By: N000937024002
74
COTTER PIN DRAG LINK TO LEVER
76
DRAG LINK FROM INTERMEDIATE LEVER TO FRONT AXLE II
76
DRAG LINK FROM INTERMEDIATE LEVER TO FRONT AXLE II
76
DRAG LINK FROM INTERMEDIATE LEVER TO FRONT AXLE II
76
DRAG LINK , Replaced By: A6994604105
76
DRAG LINK , Replaced By: A6244601905
76
DRAG LINK FROM STEERING SUPPORT II TO STEERING SUPPORT III EHRENREICH
76
DRAG LINK FROM STEERING SUPPORT II TO STEERING SUPPORT III LEMFOERDER
76
DRAG LINK TUBE FROM STEERING INTERMEDIATE BRACKET III TO STEERED AXLE LEMFOERDER
76
DRAG LINK FROM INTERMEDIATE LEVER TO FRONT AXLE II EHRENREICH
76
DRAG LINK FROM INTERMEDIATE LEVER TO FRONT AXLE II LEMFOERDER
76
DRAG LINK FROM INTERMEDIATE LEVER TO FRONT AXLE II
78
BOOT DRAG LINK END
78
BOOT DRAG LINK
80
DRAG LINK END , Replaced By: A0004602848
80
DRAG LINK END R.H. THREAD EHRENREICH
80
DRAG LINK END , Replaced By: A0014602248
80
DRAG LINK END , Replaced By: A0014601248, +001A0019905451
80
DRAG LINK END R.H. THREAD
80
DRAG LINK END R.H. THREAD EHRENREICH
80
DRAG LINK END , Replaced By: A0014607748
80
DRAG LINK END , Replaced By: A0014602248
80
DRAG LINK END , Replaced By: A0014600848
80
DRAG LINK END , Replaced By: A0014602348
80
DRAG LINK END , Replaced By: A0014601448, +001A0019905451
80
BALL JOINT L.H. THREAD TRW
80
DRAG LINK END L.H. THREAD TRW, Replaced By: A0024600348
80
DRAG LINK END , Replaced By: A0014607848
80
DRAG LINK END , Replaced By: A0014602348, +001A0019905451
82
BOOT DRAG LINK
84
CLAMP DRAG LINK END TO DRAG LINK EHRENREICH
84
CLAMP DRAG LINK END TO DRAG LINK LEMFOERDER
84
CLAMP DRAG LINK END TO DRAG LINK LEMFOERDER
88
HEXAGON HEAD BOLT. SCREW CLAMP TO DRAG LINK
88
SCREW , Replaced By: N308676012017
92
NUT SUPPORT TO SIDE MEMBER
96
NUT DRAG LINK END M 24X1.5
96
NUT DRAG LINK TO LEVER
100
COTTER PIN DRAG LINK TO STEERING ARM AND PITMAN ARM
104
STEERING ARM
104
STEERING ARM FRONT AXLE II
104
STEERING ARM LEFT
104
STEERING ARM FRONT AXLE II
104
STEERING ARM
104
STEERING ARM FRONT AXLE I
108
SCREW ENGINE SUPPORT TO BELL HOUSING M 22X75
112
STEERING SUPPORTI
112
STEERING BRACKET (STEERING INTERMEDIATE BRACKET)
112
STEERING SUPPORT (STEERING INTERMEDIATE BRACKET)
112
STEERING SUPPORT (STEERING INTERMEDIATE BRACKET)
112
STEERING SUPPORT (STEERING INTERMEDIATE BRACKET)
114
SHIM STEERING INTERMEDIATE BRACKET TO LEFT FRAME SIDE MEMBER,OUTSIDE
116
SCREW SHOCK ABSORBER TO BOTTOM BRACKET M 16X85
116
SCREW , Replaced By: N308676016006
116
SCREW STEERING BOX ASSEMBLY TO STEERING SUPPORT
116
SCREW , Replaced By: N308676014012
116
SCREW SUPPORT TO SIDE MEMBER M 14X45
116
SCREW BRACKET TO SIDE MEMBER M 14X1.5X50,5 543914
116
SCREW , Replaced By: N308676016005
116
SCREW SUPPORT TO TRANSMISSION M 16X1.5X60
116
SCREW TRAILER COUPLING TO REAR CROSS MEMBER
120
NUT , Replaced By: N910113016001
120
NUT CONSOLE TO SUPPORT
120
NUT , Replaced By: N910113014000
120
NUT STEERING SUPPORT TO FRAME
124
STEERING INTERMEDIATE ARM AT STEERING INTERMEDIATE BRACKET
124
INTERMEDIATE LEVER AT STEERING INTERMEDIATE BRACKET
124
STEERING INTERMEDIATE ARM
124
STEERING INTERMEDIATE ARM
128
NEEDLE BEARING INSIDE AND OUTSIDE
132
SPACER TUBE STEERING INTERMEDIATE ARM BEARING TO 622 461 00 40
136
THRUST WASHER , Replaced By: A6574630162
140
THRUST WASHER , Replaced By: A6574630062
144
SEAL RING INSIDE AND OUTSIDE TO 622 463 01 10
148
SEAL RING INSIDE TO 622 463 01 10
152
SEAL RING , Replaced By: A0169973648
152
SEAL RING OUTSIDE TO 622 463 01 10
156
NUT TORSION BAR TO BEARING BRACKET,5 904661
160
GREASE NIPPLE , Replaced By: N071412008102
160
GREASE NIPPLE
999
BRACKET LEFT FENDER
