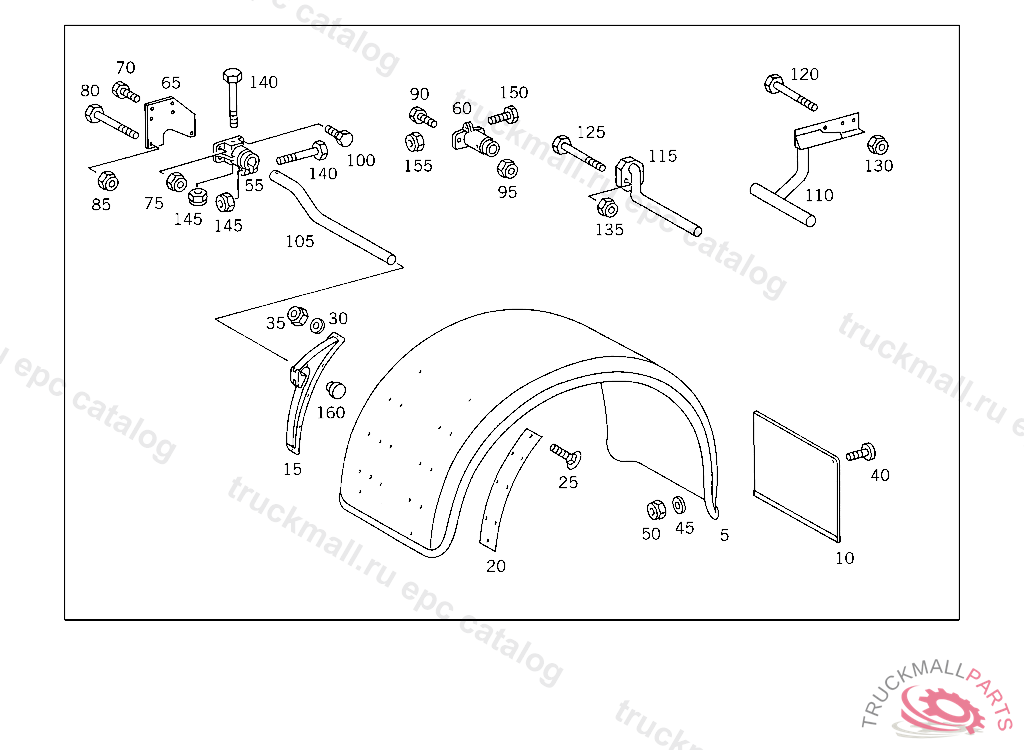

Поз.
Артикул
Описание
5
FENDER , TO BE ADAPTED DURING ASSEMBLY
5
FENDER STEERED AXLE,5 952572
5
FENDER REAR WHEEL 660X660,5 952572
10
SPLASH GUARD FENDER
10
SPLASH GUARD , TO BE ADAPTED DURING ASSEMBLY
10
SPLASH GUARD
15
BRACKET FENDER
15
BRACKET FENDER
15
BRACKET ,K 104588
20
REINFORCEMENT FENDER
20
REINFORCEMENT FENDER
25
SCREW BRACKET TO FENDER,K 104588
25
SCREW BRACKET TO REAR FENDER
25
SCREW BRACKET TO REAR FENDER
30
WASHER BRACKET TO FENDER,K 104588
30
WASHER COMPRESSED AIR LINE TO BRACKET
30
WASHER , Replaced By: N009021006208
35
NUT BRACKET TO BRACKET
35
NUT PUMP TO BRACKET
35
NUT , Replaced By: N913004006001
40
SCREW CLAMP TO BRACKET
40
SCREW , Replaced By: N007985006581
40
HEXALOBULAR BOLT WIRE CABLE TO BRACKET
40
SCREW , Replaced By: N000000001149
40
SCREW , Replaced By: A0029903712
45
NUT AT FILTER BRACKET
45
WASHER COMPRESSED AIR LINE TO BRACKET
45
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
50
NUT PUMP TO BRACKET
50
NUT , Replaced By: N913004006001
55
BEARING BRACKET , 393.311 UP TO CHASSIS 4 450302,393.321 UP TO CHASSIS 4 453 074,395.312,322,412,422 UP TO CHASSIS 4 426005
60
BEARING BRACKET MOUNTING PLATE TO FENDER
65
MOUNTING PLATE FENDER
65
MOUNTING PLATE FRONT FENDER
65
MOUNTING PLATE FRONT LEFT
65
MOUNTING PLATE FRONT LEFT
65
MOUNTING PLATE FRONT FENDER
65
MOUNTING PLATE FRONT FENDER
70
SCREW BRACKET TO SIDE MEMBER
70
SCREW , Replaced By: N304017010002
70
SCREW CROSS MEMBER TO REINFORCEMENTS AND TO SIDE MEMBERS,5 129709
70
SCREW CROSS MEMBER TO REINFORCEMENTS AND TO SIDE MEMBERS,5 129709
75
NUT STRAP TO BRACKET
75
NUT , Replaced By: N910113010000
75
NUT GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
80
SCREW CENTRAL BEARING M 12X45
80
SCREW MOUNTING PLATE TO SIDE MEMBER M 12X40
80
SCREW SUPPORT TO SIDE MEMBER M 14X45
80
SCREW SUPPORT TO SIDE MEMBER M 14X45
80
SCREW , Replaced By: N308676014012
85
NUT END PIECE TO EXHAUST PIPE
85
NUT STEERING SUPPORT TO FRAME
85
NUT , Replaced By: N910113014000
90
SCREW LEFT AND RIGHT CONSOLES TO CAB
90
SCREW REAR EXHAUST PIPE TO MUFFLER
90
HEXAGON HEAD BOLT , Replaced By: A0029902704
90
SCREW , Replaced By: N308676012013
90
SCREW BRACKET TO FRAME SIDE MEMBER
90
SCREW , Replaced By: N304017010036
90
SCREW CONNECTOR TO REAR SHIFTING ROD
90
SCREW , Replaced By: N304017010047
95
NUT STRAP TO BRACKET
95
NUT , Replaced By: N910113010000
95
HEXAGON NUT EXHAUST PIPE TO BRACKET ON SIDE MEMBER
95
NUT , Replaced By: N910113012003
95
NUT GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
100
SCREW SHIFTING ROD TO JOINT
105
BRACKET FRONT LEFT
105
BRACKET FRONT LEFT
105
BRACKET FRONT LEFT
105
BRACKET , Replaced By: A6525223240
105
BRACKET FENDER TO BEARING BRACKET, FRONT
105
BRACKET FRONT LEFT
105
BRACKET TAIL LAMP
105
BRACKET RIGHT TAIL LAMP, UP TO IDENT NO. K 279038, FROM IDENT NO. SEE STANDARD VERSION
105
BRACKET FRONT RIGHT
105
BRACKET LEFT AND RIGHT FRONT
105
BRACKET , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A6525222340
105
BRACKET , Replaced By: A6525223240
105
BRACKET FENDER TO BEARING BRACKET, FRONT
105
BRACKET FENDER TO BEARING BRACKET, FRONT
105
BRACKET RIGHT
105
BRACKET FRONT RIGHT
105
BRACKET RIGHT
105
BRACKET , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A6525222140
105
BRACKET , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A6525222140
105
BRACKET FENDER TO BEARING BRACKET, REAR
105
BRACKET , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A3935220140
105
BRACKET FENDER TO BEARING BRACKET, REAR
105
BRACKET LEFT AND RIGHT,5 453765
105
BRACKET REAR LEFT
105
BRACKET , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A6525221640
105
BRACKET FENDER TO BEARING BRACKET, FRONT
105
BRACKET TAIL LAMP
105
BRACKET , Replaced By: A6205222640
105
BRACKET REAR LEFT
105
BRACKET , Replaced By: A6205222640
105
BRACKET REAR LEFT
105
BRACKET REAR RIGHT
105
BRACKET , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A6525222640
105
BRACKET REAR LEFT
105
BRACKET TAIL LAMP
105
BRACKET REAR RIGHT
105
BRACKET FRONT
105
BRACKET REAR RIGHT
105
BRACKET , Replaced By: A6525222340
105
BRACKET REAR RIGHT
105
BRACKET RIGHT
105
BRACKET , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A6525222640
105
BRACKET , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A6525221640
105
BRACKET TAIL LAMP
105
BRACKET TAIL LAMP
105
BRACKET TAIL LAMP
105
BRACKET LEFT AND RIGHT FRONT
105
BRACKET LEFT AND RIGHT,5 453765
105
BRACKET TAIL LAMP
105
BRACKET , Replaced By: A6525223040
105
BRACKET RIGHT TAIL LAMP, UP TO IDENT NO. K 279038, FROM IDENT NO. SEE STANDARD VERSION
105
BRACKET , Replaced By: A6235220840
105
BRACKET , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A6525223040
105
BRACKET RIGHT TAIL LAMP, UP TO IDENT NO. K 279038, FROM IDENT NO. SEE STANDARD VERSION
110
BRACKET FRONT LEFT
110
BRACKET FRONT RIGHT
115
SUPPORT FRONT RIGHT
115
SUPPORT FRONT RIGHT
120
HEXAGON HEAD BOLT. SCREW BRACKET TO CROSS MEMBER
125
SCREW APPARATUS SUPPORT M 14X1.5X165
130
NUT , Replaced By: N910113012003
130
HEXAGON NUT EXHAUST PIPE TO BRACKET ON SIDE MEMBER
135
NUT , Replaced By: N910113014001
135
NUT BRACKET TO SIDE MEMBER
140
SCREW REAR AXLE REGULATING SOLENOID VALVE
145
NUT , Replaced By: N913004008001
145
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
150
SCREW HOLLOW RUBBER SPRING TO CAB,5 956657
150
SCREW BRACKET TO BEARING BRACKET
155
NUT GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
160
EXPANSION PLUG BRACKET
999
RAIL FENDER TO BODY
