Поз.
Артикул
Описание

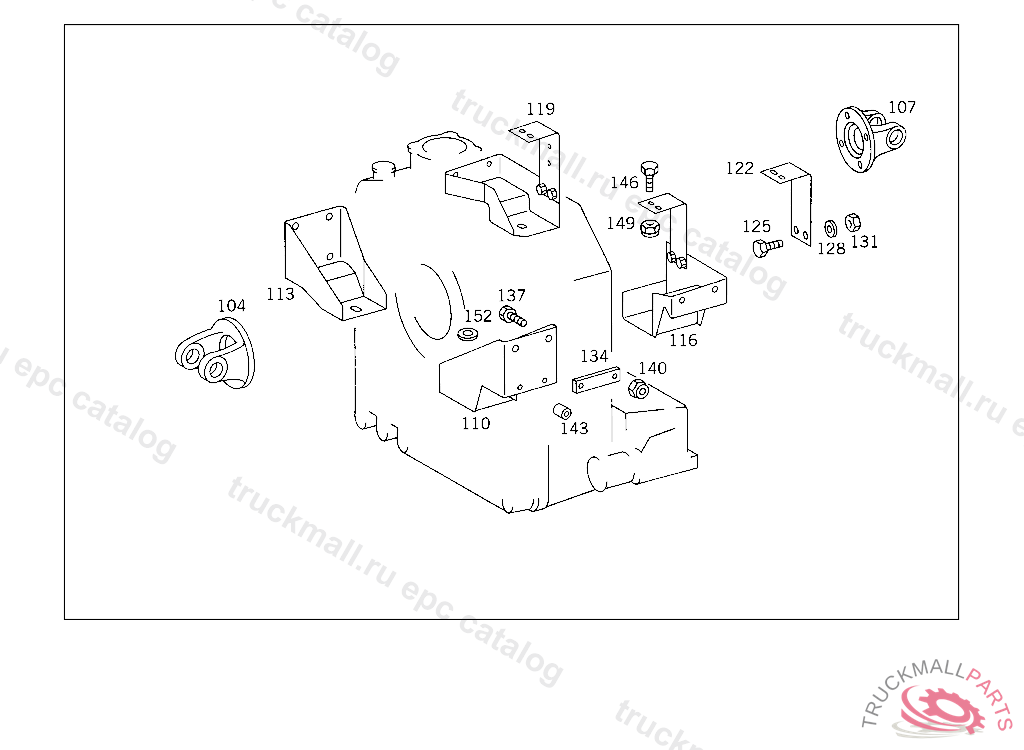

104
FLANGE FRONT
107
FLANGE REAR
110
BRACKET , Replaced By: A6994302010
110
BRACKET FRONT LEFT
110
BRACKET FRONT LEFT
110
BRACKET FRONT LEFT
110
BRACKET FRONT LEFT
110
BRACKET FRONT LEFT
110
BRACKET FRONT LEFT
110
BRACKET FRONT LEFT
113
BRACKET , Replaced By: A6994301910
113
BRACKET FRONT RIGHT
113
BRACKET FRONT RIGHT
113
BRACKET FRONT RIGHT
113
BRACKET FRONT RIGHT
113
BRACKET FRONT RIGHT
113
BRACKET FRONT RIGHT
113
BRACKET FRONT RIGHT
116
BRACKET , Replaced By: A6994302110
116
BRACKET , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A6994302110, +001A6994383295
116
BRACKET REAR LEFT
116
BRACKET REAR LEFT
116
BRACKET REAR LEFT
116
BRACKET REAR LEFT
116
BRACKET REAR LEFT
116
BRACKET REAR LEFT
116
BRACKET REAR LEFT
116
BRACKET REAR LEFT
119
BRACKET REAR RIGHT
119
BRACKET REAR RIGHT
119
BRACKET REAR RIGHT
119
BRACKET REAR RIGHT
119
BRACKET REAR RIGHT
119
BRACKET REAR RIGHT
119
BRACKET REAR RIGHT
119
BRACKET , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A6994301810, +001A6994383295
119
BRACKET , Replaced By: A6994301810
119
BRACKET REAR RIGHT
122
WEB (BRACING)
122
WEB (BRACING)
122
WEB (BRACING)
122
BRACKET (BRACING)
122
WEB (BRACING)
125
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
125
SCREW , Replaced By: N308676012012
125
HEXAGON HEAD BOLT , Replaced By: A0029902704
125
SCREW , Replaced By: N308676012013
125
HEXAGON HEAD BOLT. SCREW BRACKET TO CROSS MEMBER
128
WASHER
131
NUT. HEXAGON NUT SHOCK ABSORBER MOUNTING
131
NUT , Replaced By: N308673012002
131
HEXAGON NUT EXHAUST PIPE TO BRACKET ON SIDE MEMBER
131
NUT , Replaced By: N910113012003
134
SHIM REAR BRACKET TO SIDE MEMBER
134
SHIM REAR BRACKET TO SIDE MEMBER
134
SHIM BRACKET TO FRAME
137
SCREW FOLLOWER FLANGE TO PROPELLER SHAFT
137
SCREW , Replaced By: N308676016004
137
SCREW BRACKET TO SIDE MEMBER M 14X1.5X50,5 543914
137
SCREW TRAILER COUPLING TO REAR CROSS MEMBER
137
SCREW STEERING BOX ASSEMBLY TO STEERING SUPPORT
137
SCREW RUBBER MOUNTING TO SUPPORTING ARM M 16X1.5X80
137
SCREW APPARATUS SUPPORT TO FRAME
137
SCREW , Replaced By: N308676016007
137
SCREW TRAILER COUPLING TO REAR CROSS MEMBER
137
SCREW , Replaced By: N308676016014
137
SCREW STEERING BOX ASSEMBLY TO STEERING SUPPORT
137
SCREW , Replaced By: N308676016006
137
SCREW SUPPORT TO SIDE MEMBER M 14X45
137
SCREW , Replaced By: N308676014012
137
SCREW BEARING BRACKET TO REAR AXLE M 16X1.5X40
137
SCREW BEARING BRACKET TO REAR AXLE M 16X1.5X40
137
SCREW , Replaced By: N308676016013
137
SCREW , Replaced By: N308676016007
137
SCREW CONSOLE TO FRAME
137
SCREW CONSOLE TO FRAME
137
SCREW , Replaced By: N308676016020
137
SCREW APPARATUS SUPPORT TO FRAME
137
SCREW APPARATUS SUPPORT TO FRAME
137
SCREW , Replaced By: A9429901304
140
NUT CONSOLE TO SUPPORT
140
NUT CONSOLE TO SUPPORT
140
NUT , Replaced By: N910113016001
140
NUT STEERING SUPPORT TO FRAME
140
NUT STEERING SUPPORT TO FRAME
140
NUT , Replaced By: N910113014000
143
WASHER TRAILER COUPLING TO REAR CROSS MEMBER
143
BUSHING , Replaced By: A3379900540
146
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X40
146
HEXAGON HEAD BOLT. SCREW BRACKET TO CROSS MEMBER
149
HEXAGON NUT EXHAUST PIPE TO BRACKET ON SIDE MEMBER
149
NUT , Replaced By: N910113012003
152
WASHER BRACKET TO FRAME
152
WASHER , Replaced By: N000125017016
999
REPAIR KIT LOCKING VALVE
999
GASKET KIT RETARDER
999
COVER (HINGED COVER)
999
MOLDED PIECE
