Mercedes N007981005306 - ШУРУП

1224 AF,1226 AF,1227 AF,1234 AF,1429 AF,1627 AF 650.288

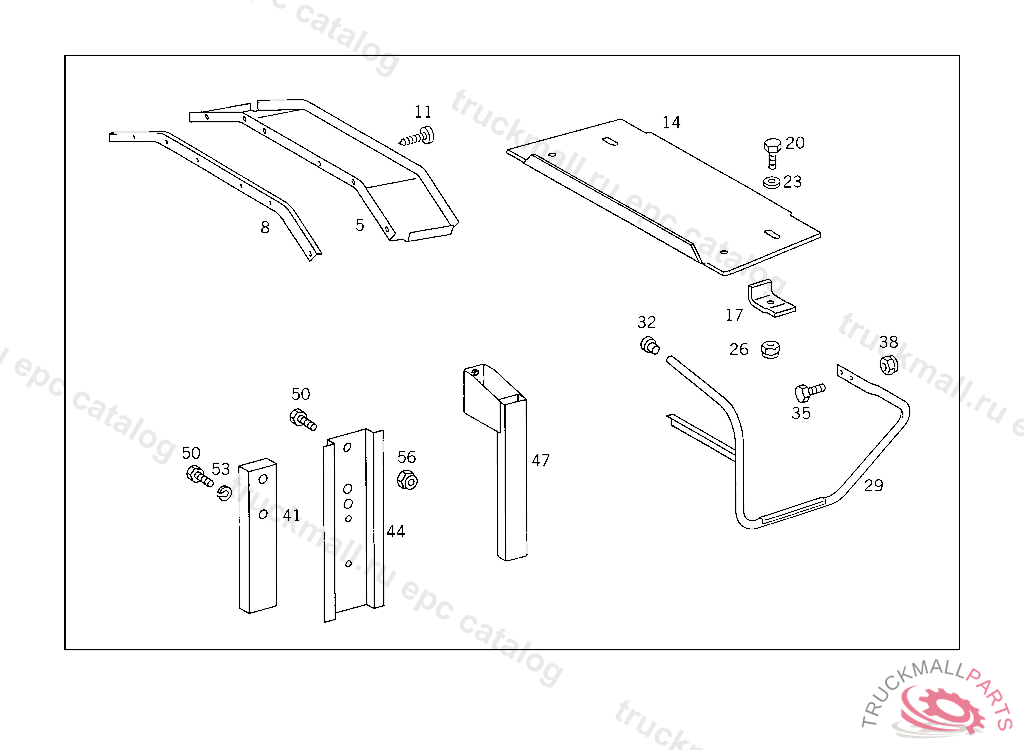

52 SHEET METAL,AIR INTAKE - 300 ENGINE COVERING AND ROCKER PANEL

Поз.
Артикул
Описание
5
A3835240529
COVER ENGINE COVERING, FOR USE WITH SHORT MERCEDES-BENZ CAB
8
A3875240084
SHIM COVER PLATE TO CAB REAR PANEL, FOR USE WITH SHORT MERCEDES-BENZ CAB
11
N007981005306
SHEET METAL SCREW COVER PLATE TO CAB REAR PANEL
41
A6155200033
SUPPORT ROCKER PANEL
44
A6505230015
SUPPORT , TO BE ADAPTED DURING ASSEMBLY
47
A6505200133
SUPPORT ROCKER PANEL
50
N000961014050
SCREW , Replaced By: N308676014020
50
N308676014020
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
50
N000961014118
SCREW SUPPORT TO FRAME M 14X32,5 129244
50
N000961014113
SCREW BEARING BRACKET TO SIDE MEMBER M 14X1.5X28
53
N912004014100
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
56
N910113014001
NUT BRACKET TO SIDE MEMBER
56
N913004014002
NUT , Replaced By: N910113014001
