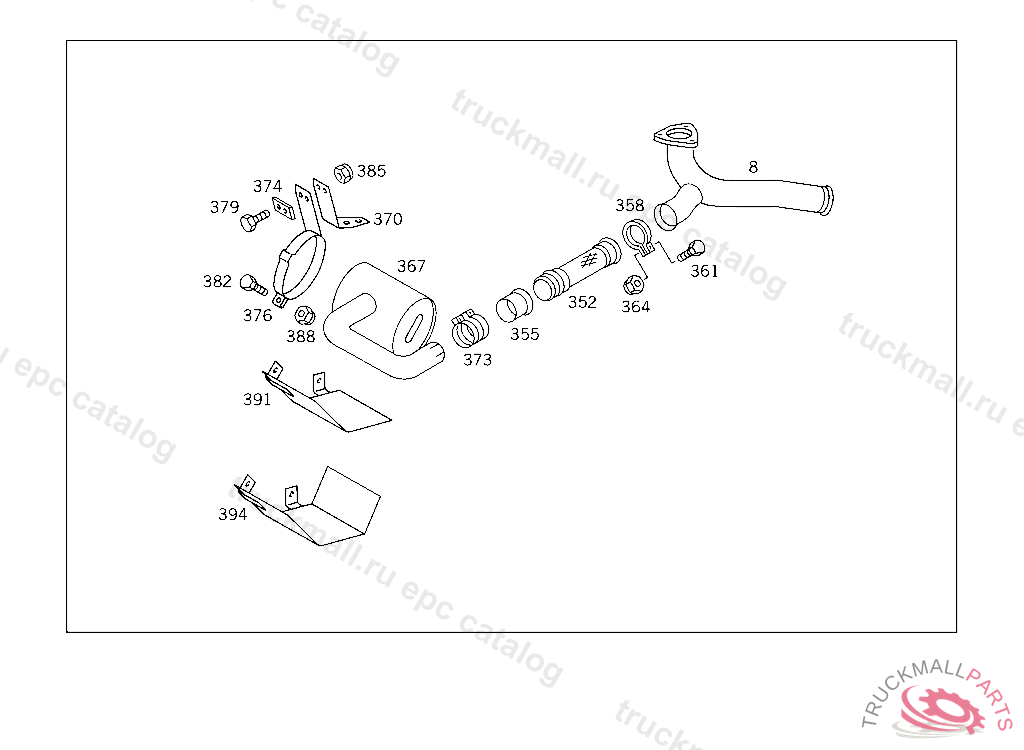

Поз.
Артикул
Описание
8
CONNECTOR. END PIECE FRONT EXHAUST PIPE,K 118398
8
CONNECTOR FRONT EXHAUST PIPE,5 909443K 118397
352
FLEXIBLE METAL TUBE CONNECTOR
355
COLLAR EXHAUST LINE FLEXIBLE METAL TUBE
358
CLAMP FLEXIBLE METAL TUBE TO CONNECTOR AND TO COLLAR
361
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
367
RESONATOR , NOT USED
370
BRACKET RESONATOR, NOT USED
373
CLAMP FLEXIBLE METAL TUBE TO EXHAUST PIPE
374
BASE PLATE BRACKET TO RESONATOR & FLEXIBLE METAL TUBE,5 909443
376
BRACKET RESONATOR, NOT USED
379
SCREW BRACKET TO SIDE MEMBER
382
SCREW END PIECE TO EXHAUST PIPE M 12X30
382
SCREW , Replaced By: N304017012020
385
NUT STRAP TO BRACKET
388
NUT END PIECE TO EXHAUST PIPE
391
PROTECTIVE PLATE ,5 909443K 118397
394
PROTECTIVE PLATE ,K 118398
