Поз.
Артикул
Описание

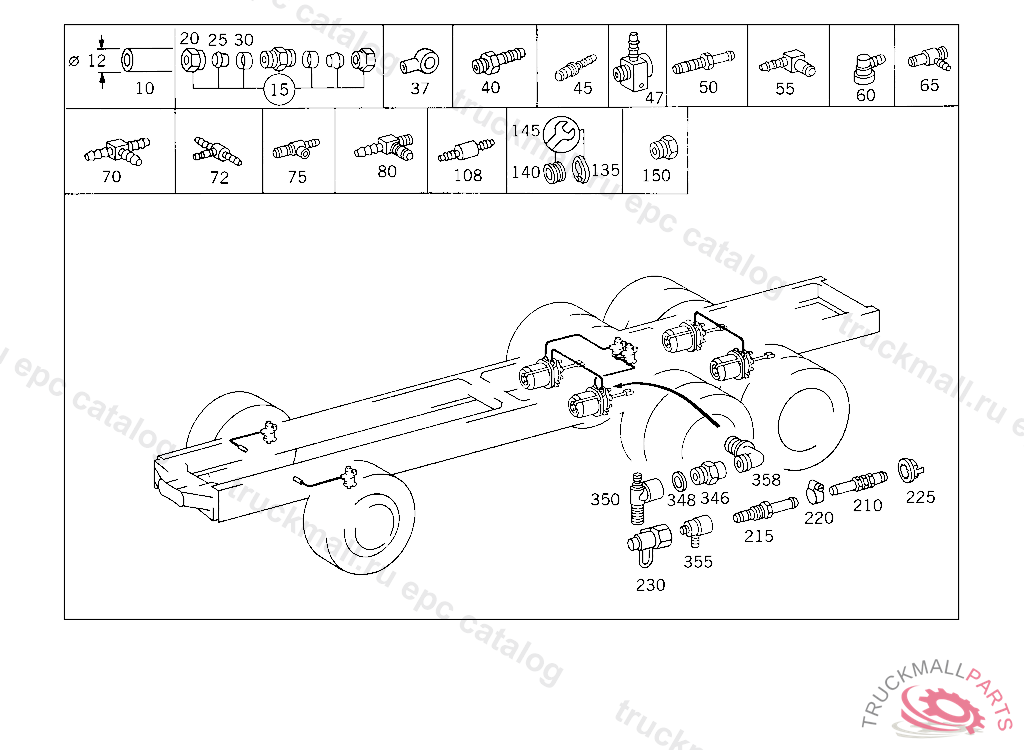

10
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
10
HOSE , Replaced By: A0009872827
15
FITTING (PARTS KIT),LINE RUPTURE
20
UNION NUT LINE CONNECTION, Replaced By: N000000006239
20
UNION NUT LINE CONNECTION
20
UNION NUT LINE CONNECTION
25
SEAL CONE LINE CONNECTION
25
GLAND LINE CONNECTION
25
GLAND , Replaced By: A0019901967
30
SLEEVE LINE CONNECTION
30
SLEEVE LINE CONNECTION
37
BANJO UNION HOSE WIDTH, / I.D., 9/16 MM
40
FITTING BULKHEAD FITTING,CONNECTION: "10"
40
FITTING , Replaced By: N915059010001
45
CONNECTOR HOSE WIDTH, 9 MM,TO M 22
47
CONNECTOR HOSE WIDTH, 9 MM,TO M22
50
CONNECTOR HOSE WIDTH, 9 MM, TO M 22
55
ELBOW FITTING HOSE WIDTH, 9 MM,TO M22
55
ELBOW FITTING HOSE WIDTH, 9 MM,TO M 22
55
ELBOW FITTING HOSE WIDTH, 9 MM,TO M 22
55
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
60
ELBOW FITTING HOSE WIDTH, 9 MM,TO M 22
65
ELBOW FITTING HOSE WIDTH, 8 MM, TO M 16
65
ELBOW FITTING HOSE WIDTH, 9 MM,TO M 22
65
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16
70
T-FITTING HOSE WIDTH, 9 MM,TO M 22
70
T-FITTING , Replaced By: A0029909070
72
T-FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22
75
T-FITTING HOSE WIDTH, 9 MM,TO M 22
80
T-FITTING
108
CONNECTOR COMPRESSED-AIR-LINE PLUG-CONNECTION 6 MM
135
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
135
LOCK , Replaced By: A0009945448
135
LOCK LINE CONNECTION
140
SEAL RING , Replaced By: A0009940747
140
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
140
LOCK RING LINE CONNECTION
145
REPAIR KIT COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16
145
REPAIR KIT. TS SEALING RING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22
145
REPAIR KIT , Replaced By: A0309971748
150
SCREW. UNION SCREW , Replaced By: A0009973734
150
SCREW. UNION SCREW LINE CONNECTION
150
SCREW. UNION SCREW LINE CONNECTION
210
CONNECTOR FROM REAR BRAKE HOSE TO TRISTOP CYLINDER TO M 22
215
CONNECTOR HOSE WIDTH, 9 MM, TO M 22
220
CLAMP HOSE TO FITTING AND TO OIL TANK
220
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
225
LOCK REAR AXLE BRAKE HOSE,K 181360
230
TEST CONNECTION
230
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
230
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
230
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
346
FITTING LOAD/NO-LOAD VALVE,CONNECTIONS: "10,21"
348
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
350
T-FITTING TRISTOP CYLINDER,CONNECTION: "11"
350
T-FITTING TRISTOP CYLINDER,CONNECTION: "11"
355
T-FITTING TRISTOP CYLINDER,CONNECTION: "11"
355
T-FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "21,22"
358
FITTING FROM PUMP TO CYLINDER
358
ELBOW FITTING FROM PUMP TO CYLINDER, Replaced By: N000000006197
999
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
999
ADAPTER FITTING LINE CONNECTION TO ENGINE
999
O-RING CHECK VALVE TO AIR RESERVOIR
999
JOINT
999
THRUST RING CHECK VALVE TO AIR RESERVOIR
999
CONNECTOR COMPRESSED AIR PIPING,YB227219
999
T-FITTING LEFT AND RIGHT BRAKE HOSES
999
T-FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22
999
FITTING SHUTTLE VALVE
999
VALVE (3/2-WAY SOLENOID VALVE)
999
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22, 9 MM
999
T-FITTING HOSE WIDTH, 9 MM, TO M 22, M 12X1.5
999
T-FITTING HOSE WIDTH, 9 MM, TO M 22, M 12X1.5
999
VALVE (REDUCTION VALVE)
999
FITTING RELAY VALVE,CONNECTION: "40"
999
CLAMP BRAKE HOSE
999
GUIDE BUSHING TWO-WAY VALVE TO FRAME
999
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
999
WASHER BRACKET TO LEFT SIDE MEMBER
999
WASHER PROTECTIVE PLATE TO EXHAUST PIPE
999
GROMMET FOR PASSAGE OF LINE
999
BRACKET COMPRESSED AIR LINE TO CONTROL ARM,5 927466
999
LOCK FRONT AXLE,LEFT,K 009080
999
BRACKET DIAPHRAGM CYLINDER
999
CLAMP BRAKE HOSE
999
BRAKE HOSE FROM TWO-WAY VALVE TO TRISTOP CYLINDER 500 MM,K 181361
999
BRAKE HOSE FROM TWO-WAY VALVE TO TRISTOP CYLINDER 600 MM,K 181361
999
BRAKE HOSE FROM TWO-WAY VALVE TO TRISTOP CYLINDER 700 MM,K 181361
999
BRAKE HOSE REAR AXLE BRAKE CYLINDER 700 MM,K 180897
999
BRACKET , Replaced By: A6544310740
999
BRACKET
999
BRACKET TRAILING AXLE
999
BRACKET LOAD/NO-LOAD VALVE
999
BRACKET COMPRESSED AIR LINES
999
STRAP DIAPHRAGM CYLINDER
999
BRACKET REGULATING SOLENOID VALVE,5 953054
999
BRACKET FRONT AXLE,LEFT
999
BRACKET FRONT AXLE,RIGHT
999
TANK RECESS. T-FITTING LINE CONNECTION
999
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
999
ANGLE
999
BRACKET REDUCTION VALVE
999
WASHER , Replaced By: N000125008443
999
WASHER EXHAUST MUFFLER TO STRAP
999
SCREW PLUG , Replaced By: N000908022011
999
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "21"
999
SCREW , Replaced By: N304017008034
999
SCREW HOLLOW RUBBER SPRING TO CAB,5 956657
999
SCREW BRACKET TO SIDE MEMBER M 12X38
999
SCREW , Replaced By: N308676016006
999
SEAL RING LINE CONNECTION
999
INSULATING HOSE PROTECTION AGAINST SCORING, ORDER BY THE METER
999
NUT CHECK VALVE TO AIR RESERVOIR
999
FITTING , Replaced By: A0029971372
999
NUT SHIFTING ROD UNLOCKING HIGH-PRESSURE HOSE
999
SCREW BRACKET TO CROSS CONNECTION STRUT
999
SCREW STEERING BOX ASSEMBLY TO STEERING SUPPORT
999
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
999
NUT , Replaced By: N913004008001
999
HOLLOW SCREW LINE CONNECTION
