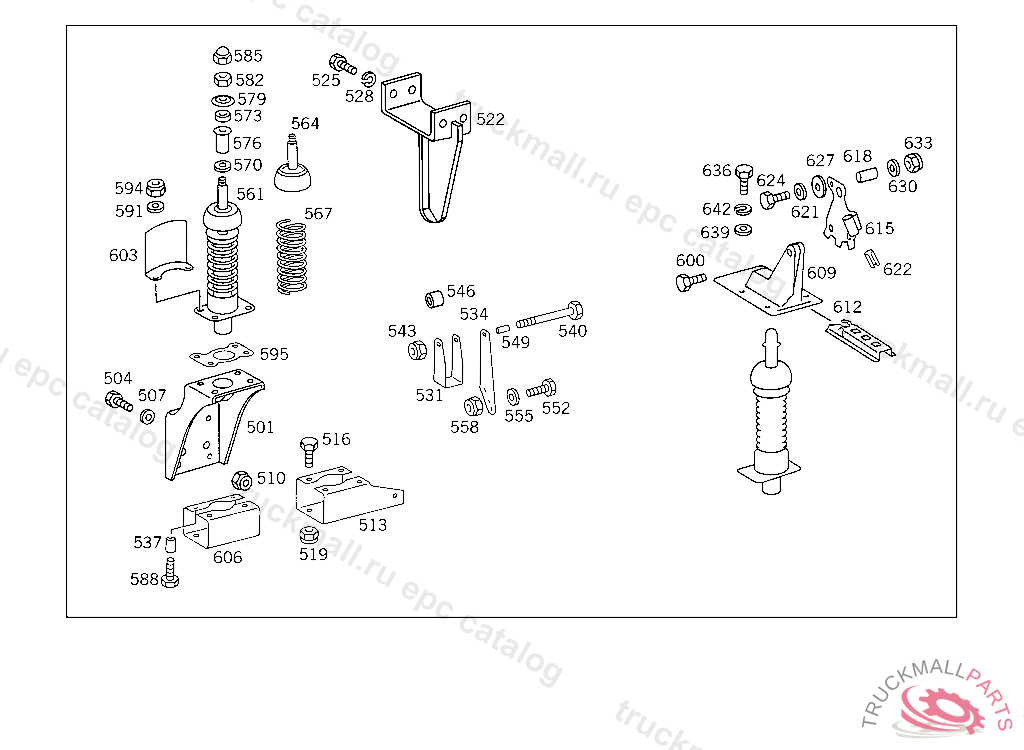

Поз.
Артикул
Описание
501
CONSOLE , Replaced By: A6523170001
501
CONSOLE
501
CONSOLE CAB SUSPENSION,REAR RIGHT
504
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
504
SCREW , Replaced By: N308676012012
504
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
504
SCREW , Replaced By: N308676014020
504
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X40
504
SCREW CONSOLE TO SIDE MEMBER
507
RIVET BRACKET TO CONSOLE
507
WASHER
510
NUT BRACKET TO SIDE MEMBER
510
NUT SUPPORT TO SIDE MEMBER
510
NUT , Replaced By: N910113014001
513
INTERMEDIATE PIECE LEFT
513
INTERMEDIATE PIECE RIGHT
516
SCREW , Replaced By: N304017008034
516
SCREW BRACKET TO CROSS CONNECTION STRUT
519
NUT , Replaced By: N913004008001
519
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
519
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
522
GUIDE LATERAL GUIDE OF CAB
525
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
525
SCREW , Replaced By: N308676012012
528
LOCK WASHER FITTING TO BRACKET
531
BRACKET RIGHT
531
BRACKET LEFT
531
BRACKET RIGHT
531
BRACKET LEFT
534
BRACKET GUIDE TO CAB
537
SPACER TUBE BRACKET TO CONSOLE
540
SCREW , Replaced By: N304017008021
540
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
540
SCREW PIPE CLAMP
540
SCREW , Replaced By: N308676012012
540
SCREW BRACKET TO CONSOLE
540
SCREW CONSOLE TO SIDE MEMBER
543
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
543
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
543
NUT , Replaced By: N913004008001
543
NUT SUPPORT TO SIDE MEMBER
546
BUSHING LATERAL GUIDE OF CAB
549
SPACER TUBE BRACKET TO CONSOLE
552
SCREW BRACKET TO CONSOLE
555
WASHER
558
NUT SUPPORT TO SIDE MEMBER
561
SHOCK ABSORBER CAB SUSPENSION
561
SHOCK ABSORBER CAB SUSPENSION
561
SHOCK ABSORBER , Replaced By: A3878904019
561
SHOCK ABSORBER , Replaced By: A3878903619
564
RUBBER MOUNTINGTO 387 890 36 19
567
SPRINGTO 387 890 36 19
567
SPRINGTO 387 890 39 19, 40 19
570
WASHER SHOCK ABSORBER MOUNTING
573
RUBBER RING SHOCK ABSORBER MOUNTING
576
SPACER TUBE SHOCK ABSORBER MOUNTING
579
WASHER COMBINATION CYLINDER TO SLACK ADJUSTER
582
NUT STRAP TO SUPPORT
585
NUT. HEXAGON NUT SHOCK ABSORBER MOUNTING
588
SCREW , Replaced By: N304017008024
588
SCREW , Replaced By: N304017008034
588
SCREW , Replaced By: N304017008042
588
SCREW BRACKET TO EXHAUST PIPE BRACKET
588
SCREW SHOCK ABSORBER TO CONSOLE
588
SCREW BRACKET TO CROSS CONNECTION STRUT
591
WASHER BRACKET TO LEFT SIDE MEMBER
591
WASHER , Replaced By: N009021008213
594
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
594
NUT , Replaced By: N913004008001
594
NUT STRAP TO BRACKET
595
COVER SHOCK ABSORBER TO CONSOLE
600
SCREW SHOCK ABSORBER TO CONSOLE,TOP
603
COVER PLATE SHOCK ABSORBER
606
CLAMP VIBRATION ABSORBER
609
GUIDE CAB,REAR LEFT AND RIGHT
612
LATCH CAB LOCKING MECHANISM
615
TOOTHED SEGMENT CAB LOCKING MECHANISM,RIGHT
615
TOOTHED SEGMENT CAB LOCKING MECHANISM,LEFT
618
PIPE BRACKET TO TRANSMISSION
618
SPACER TUBE , Replaced By: A6017910036
621
DISC SPRING CAB LOCKING MECHANISM
622
CLAMPING SLEEVE CAB LOCKING MECHANISM
624
SCREW EXHAUST PIPE TO BRACKET
624
SCREW END PIECE TO EXHAUST PIPE M 10X25
627
WASHER BRACKET TO COVERING
627
WASHER , Replaced By: N009021010209
630
WASHER , Replaced By: N000125010532
630
WASHER RADIATOR TO RUBBER MOUNTING
633
NUT , Replaced By: N910113010000
633
NUT STRAP TO BRACKET
636
SCREW END PIECE TO EXHAUST PIPE M 10X25
639
WASHER , Replaced By: N000125010532
639
WASHER RADIATOR TO RUBBER MOUNTING
642
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
