Поз.
Артикул
Описание

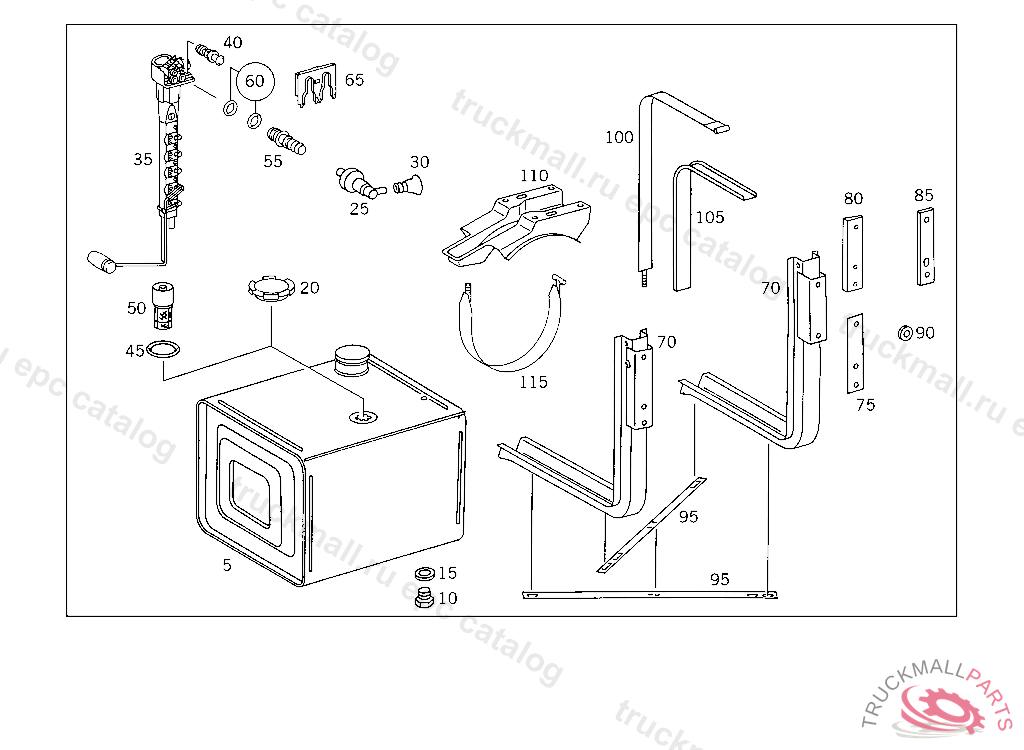

5
FUEL TANK200 L
10
SCREW PLUG AT TANK
15
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
20
FILLER CAP IN PLACE OF FUEL GAUGE SENDER UNIT
25
VALVE ,K 169122
25
VALVE ,K 169122
30
BOOT CHECK VALVE,K 169122
35
SENDER UNIT FUEL GAUGE
40
PLUG TO SEAL AUXILIARY HEATER CONNECTION 8 MM,K 169123
45
SEAL RING FUEL GAUGE SENDER UNIT TO FUEL TANK
50
FUEL STRAINER FUEL TANK,K 169123
55
CONNECTOR FEED LINE AND RETURN LINE 12,5X1,25 MM
55
CONNECTOR FEED LINE AND RETURN LINE 11X1,5 MM
55
CONNECTOR FEED LINE AND RETURN LINE 8X1 MM
60
GASKET KIT CONNECTION ON FUEL GAUGE SENSOR
65
LOCK FUEL GAUGE SENDER UNIT CONNECTION
70
SUPPORT FUEL TANK TO FRAME
70
SUPPORT FUEL TANK
70
SUPPORT FUEL TANK TO FRAME
70
SUPPORT FUEL TANK TO FRAME
75
SHIM SUPPORT TO SIDE MEMBER
80
SHIM FUEL TANK TO FRAME
85
BASE SUPPORT TO SIDE MEMBER
90
WASHER BRACKET TO SIDE MEMBER,5 703114
95
REINFORCEMENT REINFORCEMENT RAIL TO CONSOLE
100
STRAP FUEL TANK TO SUPPORT
105
PAD FUEL TANK TO SUPPORT, ORDER BY THE METER
110
BRACKET AIR RESERVOIR TO APPARATUS SUPPORT
115
STRAP PARTICLE FILTER
999
BRACKET MOUNTING PARTS
