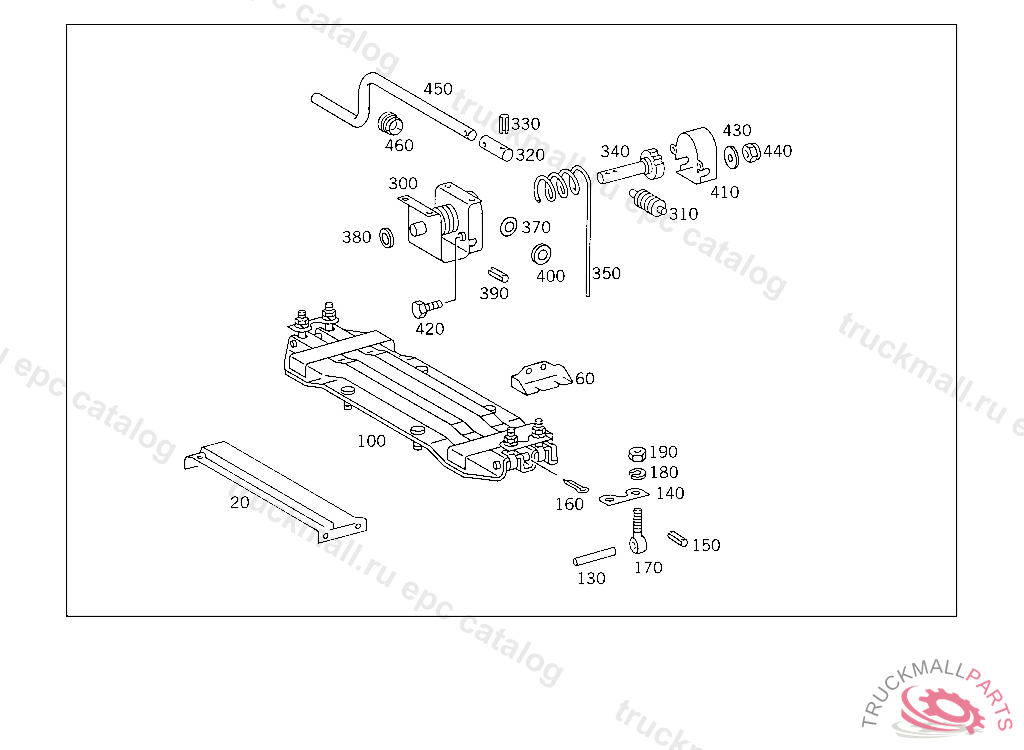

Поз.
Артикул
Описание
20
SUPPORT SPARE WHEEL HOIST,4 179002
60
SUPPORT SPARE WHEEL HOIST
100
BRACKET SPARE WHEEL CARRIER,4 613857
100
BRACKET SPARE WHEEL MOUNTING,K 058473
100
BRACKET SPARE WHEEL
130
PIN AT BRACKET
140
BASE BLOCK SPARE WHEEL CARRIER TO SIDE MEMBER
150
CLAMPING SLEEVE BRACKET TO PEDAL BEARING BRACKET
160
COTTER PINROCKINGER TYP 260 G140
170
SCREW SPARE WHEEL CARRIER TO SIDE MEMBER
180
LOCK WASHERROCKINGER TYP 59 G140,59 G150
190
NUT SPARE WHEEL CARRIER TO SIDE MEMBER
190
NUT , Replaced By: N308673016001
300
SPARE WHEEL HOIST
310
WORM
320
BUSHING
330
CLAMPING SLEEVE CRANK TO BUSHING
340
STOP GEAR ,5 127460
350
WIRE CABLE
370
WASHER WORM AND SHAFT TO BRACKET
370
WASHER WORM AND RATCHET WHEEL TO BRACKET
380
WASHER WORM AND SHAFT TO BRACKET
390
CLAMPING SLEEVE , Replaced By: N308752008000
390
CLAMPING PIN BRACKET TO SUPPORT
400
DISC SPRING WORM AND SHAFT TO BRACKET
410
COVERING PROTECTION PLATE TO BRACKET
420
SCREW COVER PLATE TO BRACKET
430
WASHER COMPRESSED AIR LINE TO BRACKET
440
NUT PUMP TO BRACKET
450
CRANK SPARE WHEEL HOIST
460
BUSHING SPARE WHEEL HOIST,4 179002
460
BUSHING CRANK
