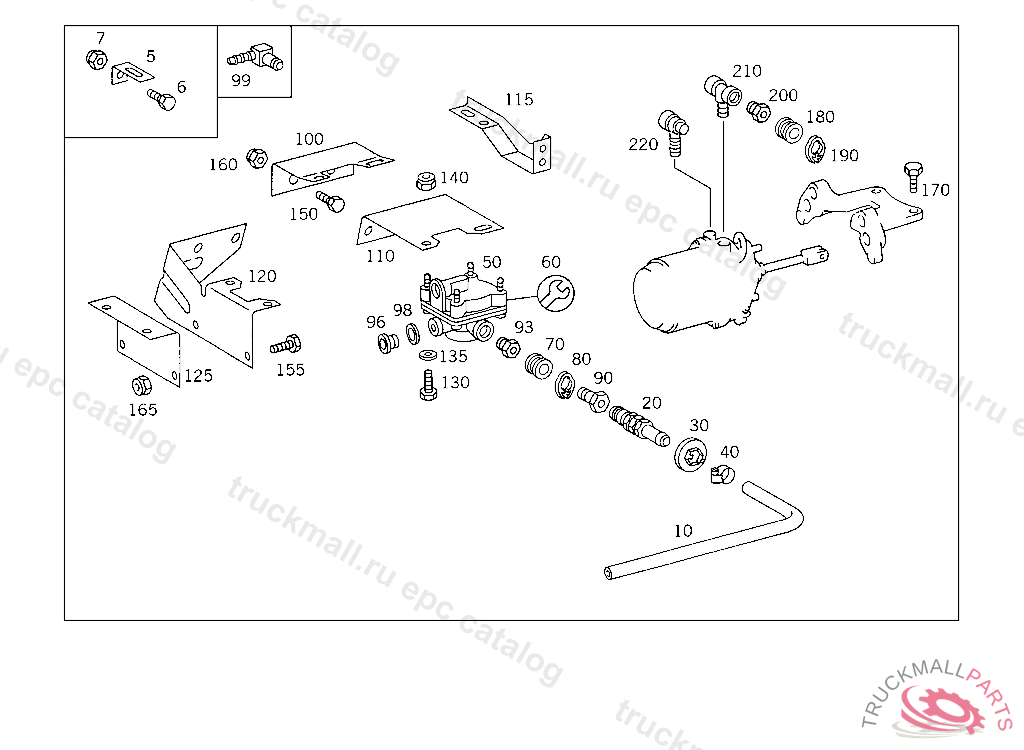

Поз.
Артикул
Описание
5
BRACKET LINE MOUNTING
6
SCREW , Replaced By: N304017008021
6
SCREW PIPE CLAMP
7
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
7
NUT , Replaced By: N913004008001
10
HOSE FRONT AND REAR AXLE BRAKE CYLINDERS 11 MM
20
CONNECTOR FROM REAR BRAKE HOSE TO TRISTOP CYLINDER TO M 22
30
LOCK REAR AXLE BRAKE HOSE,K 181360
40
CLAMP HOSE TO FITTING AND TO OIL TANK
40
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
50
VALVE FRONT AXLE II RELAY VALVE "GRAU", NOT USED
50
VALVE , Replaced By: A0044293844
50
VALVE FRONT AXLE II RELAY VALVE "WABCO"
50
VALVE FRONT AXLE II RELAY VALVE "BOSCH"
60
REPAIR KIT RELAY VALVE "GRAU"
60
REPAIR KIT RELAY VALVE BOSCH
60
REPAIR KIT RELAY VALVE TO 003 429 93 44,WABCO
60
REPAIR KIT RELAY VALVE TO 004 429 38 44,WABCO
70
SEAL RING , Replaced By: A0009940747
70
LOCK RING LINE CONNECTION
70
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
80
LOCK , Replaced By: A0009945448
80
LOCK LINE CONNECTION
80
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
90
SCREW. UNION SCREW , Replaced By: A0009973734
90
SCREW. UNION SCREW LINE CONNECTION
90
SCREW. UNION SCREW LINE CONNECTION
93
SCREW. UNION SCREW , Replaced By: A0009973734
93
SCREW. UNION SCREW LINE CONNECTION
96
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "21"
96
SCREW PLUG , Replaced By: N000908022011
98
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
99
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
100
BRACKET RELAY VALVE
110
BRACKET RELAY VALVE
115
BRACKET RELAY VALVE
120
BRACKET RELAY VALVE,5 559704
125
BRACKET RELAY VALVE,5 559705
130
SCREW , Replaced By: N304017008018
130
SCREW SUPPORT TO FENDER
135
WASHER EXHAUST MUFFLER TO STRAP
135
WASHER , Replaced By: N000125008443
140
NUT , Replaced By: N913004008001
140
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
150
SCREW , Replaced By: N304017010002
150
SCREW BRACKET TO SIDE MEMBER
150
SCREW END PIECE TO EXHAUST PIPE M 10X25
150
SCREW BRACKET TO SIDE MEMBER
155
SCREW , Replaced By: N304017008016
155
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
160
NUT , Replaced By: N910113010000
160
HEXAGON NUT
160
NUT STRAP TO BRACKET
160
NUT , Replaced By: N910113010002
165
NUT , Replaced By: N913004008001
165
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
170
SCREW BEARING BRACKET TO REAR AXLE M 16X1.5X50
170
SCREW , Replaced By: N308676016007
170
SCREW , Replaced By: N308676016013
170
SCREW BEARING BRACKET TO REAR AXLE M 16X1.5X40
170
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
180
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
190
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
200
SCREW. UNION SCREW LINE CONNECTION
210
T-FITTING COMBINATION CYLINDER,CONNECTION: "12"
220
T-FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "21,22"
999
BRAKE PRESSURE REGULATOR LOAD-DEPENDING BRAKE WABCO, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
999
BRAKE PRESSURE REGULATORWABCO, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
999
BRAKE HOSE , Replaced By: A6524203848
999
BRAKE HOSE FROM RELAY VALVE TO COMBINATION CYLINDER
999
BRAKE HOSE FROM RELAY VALVE TO COMBINATION CYLINDER
999
BRAKE HOSE FROM RELAY VALVE TO COMBINATION CYLINDER,K 180897
999
BRAKE HOSE , Replaced By: A6524204548
999
BRAKE HOSE FROM RELAY VALVE TO COMBINATION CYLINDER,K 180897
