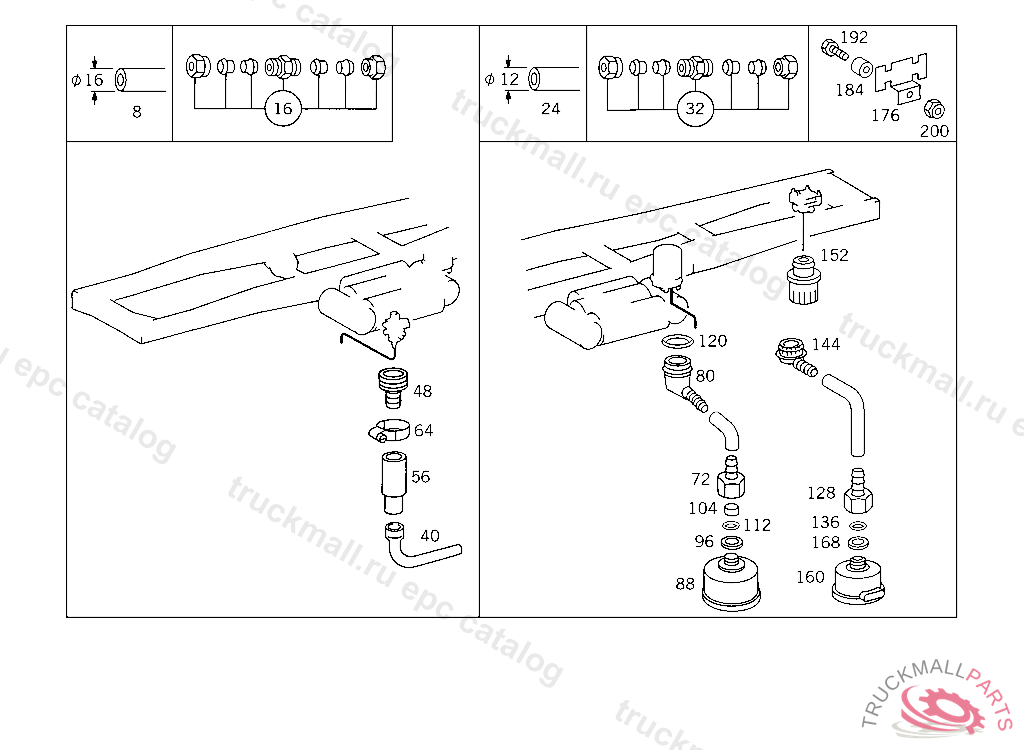

Поз.
Артикул
Описание
8
HOSE , Replaced By: A0009872927
8
PLASTIC PIPE FUEL LINE 16X2 MM, ORDER BY THE METER
16
FITTING (PARTS KIT),LINE RUPTURE
24
HOSE , Replaced By: A0009872827
24
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
32
FITTING (PARTS KIT),LINE RUPTURE
32
FITTING , Replaced By: A0029906171
40
BREATHER PIPE COMPRESSED AIR LINE TO EXHAUST MUFFLER
48
FITTING PRESSURE REGULATOR,CONNECTION: "30"
56
MUFFLER PRESSURE REGULATOR BREATHING
64
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
64
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
64
CLAMP PRESSURE REGULATOR
64
CLAMP25-40X13 MM
64
CLAMP , Replaced By: N000000000667
72
FITTING TRAILER CONTROL VALVE
80
CONNECTOR 90 DEG. OFFSET
80
CONNECTOR BLEEDING
80
CONNECTOR BRAKE POWER REGULATOR,CONNECTION: "30"
80
CONNECTOR 75 DEGREES
88
MUFFLER , Replaced By: A0004302370
88
MUFFLER TRAILER CONTROL VALVE
96
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
104
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
104
THRUST RING CHECK VALVE TO AIR RESERVOIR
112
O-RING CHECK VALVE TO AIR RESERVOIR
120
SEAL RING BLEEDING 19X4 MM
128
FITTING BRAKE POWER REGULATOR,CONNECTION: "30"
136
SEALING CORD SUCTION LINE TO OIL PUMP
144
CONNECTOR BRAKE POWER REGULATOR,CONNECTION: "30"
144
CONNECTOR BRAKE POWER REGULATOR,CONNECTION: "30"
152
MUFFLER , Replaced By: A0004302470
152
MUFFLER VALVE BLEEDING
160
MUFFLER BRAKE PRESSURE REGULATOR BREATHING,5 419692
168
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
176
BRACKET BREATHER LINE TO SIDE MEMBER
184
SPACER TUBE BREATHER LINE TO SIDE MEMBER
192
SCREW FLEXIBLE METAL TUBE TO CONNECTOR AND TO COLLAR
192
SCREW , Replaced By: N304017008028
200
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
200
NUT , Replaced By: N913004008001
