Поз.
Артикул
Описание

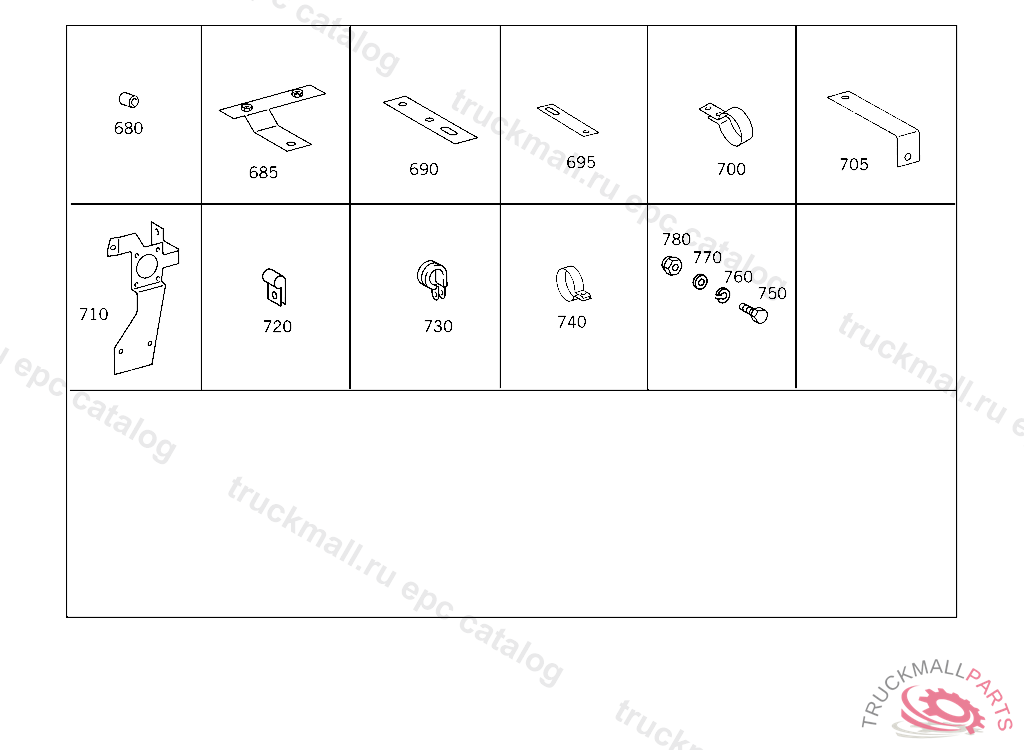

680
BUSHING ATTACHMENT NOISE ENCAPSULATION
680
SPACER TUBE SWITCH TO ENGINE
680
SPACER TUBE LINE MOUNTING
680
SPACER TUBE , Replaced By: A1369913740
685
BRACKET DELIVERY LINE TO POWER CYLINDER
690
BRACKET DELIVERY LINE TO POWER CYLINDER
695
BRACKET AT CROSS MEMBER
700
BRACKET DELIVERY LINE TO POWER CYLINDER
705
BRACKET FEED AND RETURN LINES TO RETARDER 110 MM LANG, TO BE ADAPTED DURING ASSEMBLY
710
BRACKET PRESSURE LIMIT VALVE
720
CLAMP DELIVERY AND SUCTION LINES TO STEERING
720
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
720
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
730
CLAMP STAY TO BRACKET
730
CLAMP
730
CLAMP HOSE TO FLANGE AND TO VALVE
730
CLAMP OIL FILLER PIPE TO BRACKET
730
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
730
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
730
CLAMP ADDITIONAL WORK ON FRAME MOUNTED CABLE HARNESS
730
CLAMP LINE MOUNTING
740
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
740
CLAMP EXHAUST PIPE,4 726045
750
SCREW LINE MOUNTING M 6X45
750
SCREW BATTERY CABLE MOUNTING AND MAIN CABLE HARNESS MOUNTING M 6X40
750
SCREW CLAMP TO BRACKET,5 597426
750
HEXALOBULAR BOLT. SCREW BRACKET TO CROSS MEMBER M 8X50
750
SCREW AT FILTER BRACKET
750
HEXAGON HEAD BOLT CONSOLE TO REAR CROSS MEMBER AND TO FRAME SIDE MEMBERS M 10X40
750
SCREW HOSE TO CAB M 6X25
750
SCREW OIL LINE TO CRANKCASE
750
SCREW PIPE CLAMP
750
SCREW COLD START SYSTEM TO BRACKET
750
SCREW LEVER TO ENGINE CONTROL SHAFT
750
SCREW BRACKET TO FRAME M 8X35
750
SCREW BRACKET TO CROSS MEMBER M 6X35
750
SCREW LINE MOUNTING M 10X20
750
HEXALOBULAR BOLT. SCREW LINE MOUNTING M 6X30
750
SCREW , Replaced By: N910105006023
750
SCREW , Replaced By: N000000001479
750
SCREW , Replaced By: N910105006005
750
SCREW , Replaced By: N304017008021
750
SCREW , Replaced By: N910142008009
750
SCREW , Replaced By: N000000001990
750
SCREW , Replaced By: N910105010011
750
SCREW REAR EXHAUST PIPE TO MUFFLER
750
SCREW COVER PLATE TO BRACKET
760
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
760
LOCK WASHER RAIL TO BATTERY SUPPORT
770
WASHER COMPRESSED AIR LINE TO BRACKET
770
WASHER EXHAUST MUFFLER TO STRAP
770
WASHER , Replaced By: N009021006208
770
WASHER , Replaced By: N000125008443
780
NUT EXHAUST PIPE TO SIDE MEMBER
780
NUT AT FILTER BRACKET
780
NUT BRACKET TO BRACKET
