Поз.
Артикул
Описание

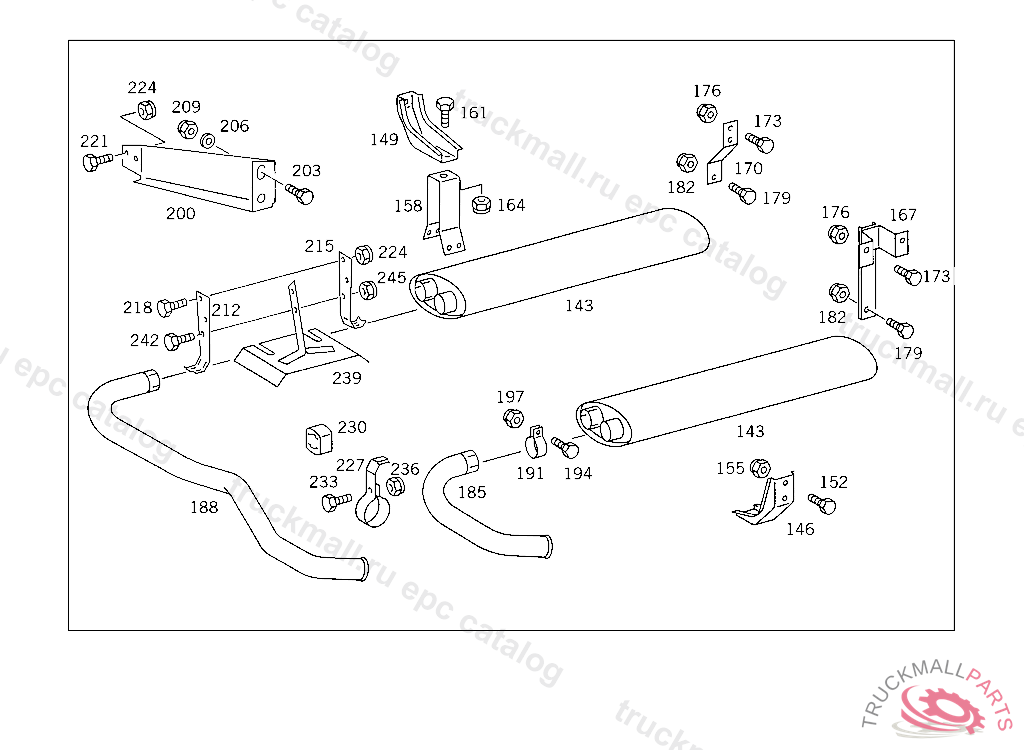

143
EXHAUST MUFFLER
146
CONSOLE EXHAUST MUFFLER,FRONT
146
CONSOLE REAR EXHAUST MUFFLER 132 MM
149
CONSOLE FRONT EXHAUST MUFFLER 162 MM
152
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
152
SCREW , Replaced By: N308676012026
155
NUT SUPPORT TO SIDE MEMBER
158
BRACKET EXHAUST MUFFLER
161
SCREW END PIECE TO EXHAUST PIPE M 10X25
164
NUT STRAP TO BRACKET
164
NUT , Replaced By: N910113010000
167
BRACKET REAR EXHAUST MUFFLER
167
BRACKET , Replaced By: A6554902640, +001A6214910541, +004N000933010105
170
BRACKET HEATING PIPE TO ENGINE,5 3853425 932305
173
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
173
SCREW , Replaced By: N304017008027
173
SCREW BRACKET TO SIDE MEMBER
173
SCREW , Replaced By: N304017010002
176
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
176
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
176
NUT , Replaced By: N913004008001
176
NUT STRAP TO BRACKET
176
NUT , Replaced By: N910113010000
179
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
179
SCREW END PIECE TO EXHAUST PIPE M 10X25
182
NUT , Replaced By: N910113010000
182
NUT STRAP TO BRACKET
185
END PIECE , Replaced By: A6554921904
185
REAR EXHAUST PIPE LEFT
185
REAR EXHAUST PIPE SHORT,EXHAUST MUFFLER,RIGHT
188
REAR EXHAUST PIPE , Replaced By: A6554922004
188
REAR EXHAUST PIPE RIGHT
188
REAR EXHAUST PIPE LONG,EXHAUST MUFFLER,LEFT
191
CLAMP PROTECTIVE PLATE TO EXHAUST PIPE
194
SCREW , Replaced By: N304017008018
194
SCREW SUPPORT TO FENDER
197
NUT , Replaced By: N913004008001
197
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
197
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
200
SUPPORT TAIL PIPE ON THE RIGHT
203
SCREW BRACKET TO SIDE MEMBER
206
WASHER , Replaced By: N000125015019
206
WASHER STRUT TO EXHAUST PIPE AND TO SIDE MEMBER
209
NUT , Replaced By: N910113014001
209
NUT BRACKET TO SIDE MEMBER
209
NUT , Replaced By: N910113014001
212
BRACKET TAIL PIPE ON THE RIGHT
215
BRACKET TAIL PIPE ON THE RIGHT
215
BRACKET TAIL PIPE TO SIDE MEMBER
218
SCREW SUPPORT TO FENDER
221
SCREW , Replaced By: N304017008021
221
SCREW PIPE CLAMP
224
NUT , Replaced By: N913004008001
224
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
224
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
227
BRACKET RUBBER BUFFER,5 129244
230
DAMPING PAD PARTICLE FILTER
233
SCREW , Replaced By: N304017010002
233
SCREW BRACKET TO SIDE MEMBER
236
NUT , Replaced By: N910113010000
236
NUT STRAP TO BRACKET
239
PROTECTIVE PLATE REAR EXHAUST PIPE
242
SCREW , Replaced By: N304017008021
242
SCREW PIPE CLAMP
245
NUT , Replaced By: N913004008001
245
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
245
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
