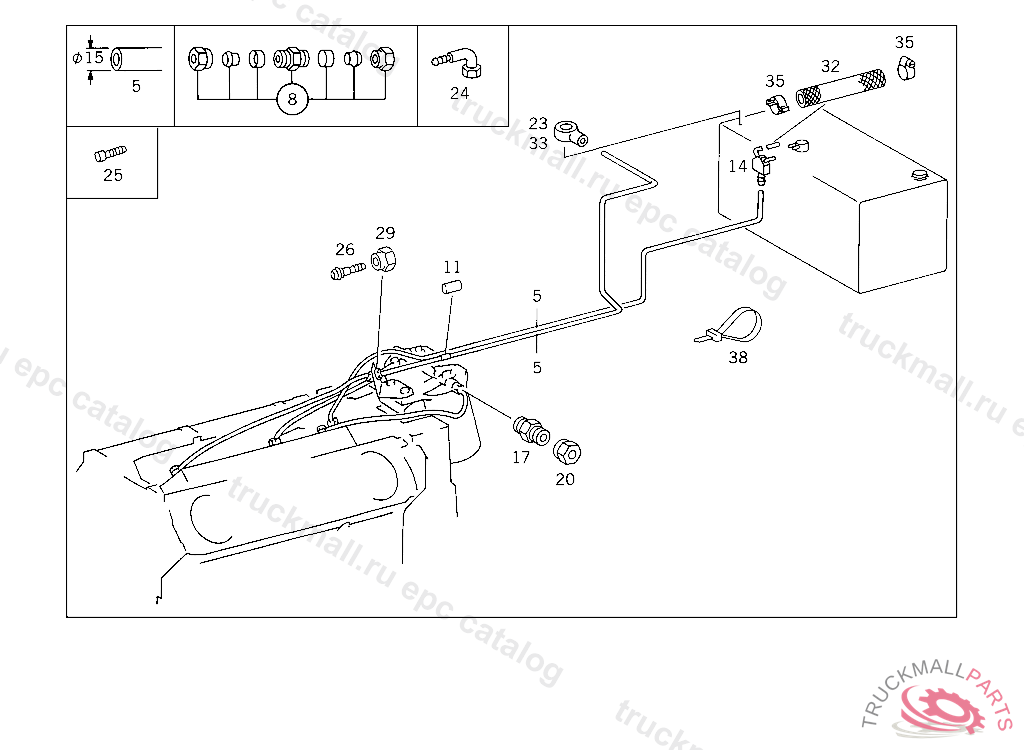

Поз.
Артикул
Описание
5
HOSE FEED LINE 12X15 MM, ORDER BY THE METER
8
FITTING (PARTS KIT),LINE RUPTURE
11
INSULATING HOSE FEED 11X0.7 MM, ORDER BY THE METER
11
INSULATING HOSE FEED 11X0.7 MM, ORDER BY THE METER
11
INSULATING HOSE16X1 MM, ORDER BY THE METER
11
INSULATING HOSE FEED 11X0.7 MM, ORDER BY THE METER
11
INSULATING HOSE16X1 MM, ORDER BY THE METER
14
INTERMEDIATE PIECE FEED LINE
17
CONNECTOR FEED LINE
20
UNION NUT FEED LINE
23
BANJO UNION HOSE WIDTH, / I.D., 8/22 MM
23
BANJO UNION , Replaced By: N000000000363
23
BANJO UNION , Replaced By: N000000000363
24
ELBOW FITTING RETURN
24
ELBOW FITTING RETURN
25
CONNECTOR FEED LINE AND RETURN LINE 11X1,5 MM
25
CONNECTOR FEED LINE AND RETURN LINE 11X1,5 MM
25
CONNECTOR FEED LINE AND RETURN LINE 11X1,5 MM
26
FITTING RETURN
29
NUT. UNION NUT RETURN
32
LINE FEED LINE AND RETURN LINE
32
LINE FEED LINE AND RETURN LINE
32
HOSE LEAK LINE
32
LINE FEED LINE AND RETURN LINE
32
HOSE LEAK LINE
33
BANJO UNION
35
CLIP LEAK LINE
35
CLIP LEAK LINE
38
LOOM TIE LINE MOUNTING 280 MM
38
LOOM TIE LINE MOUNTING 280 MM
