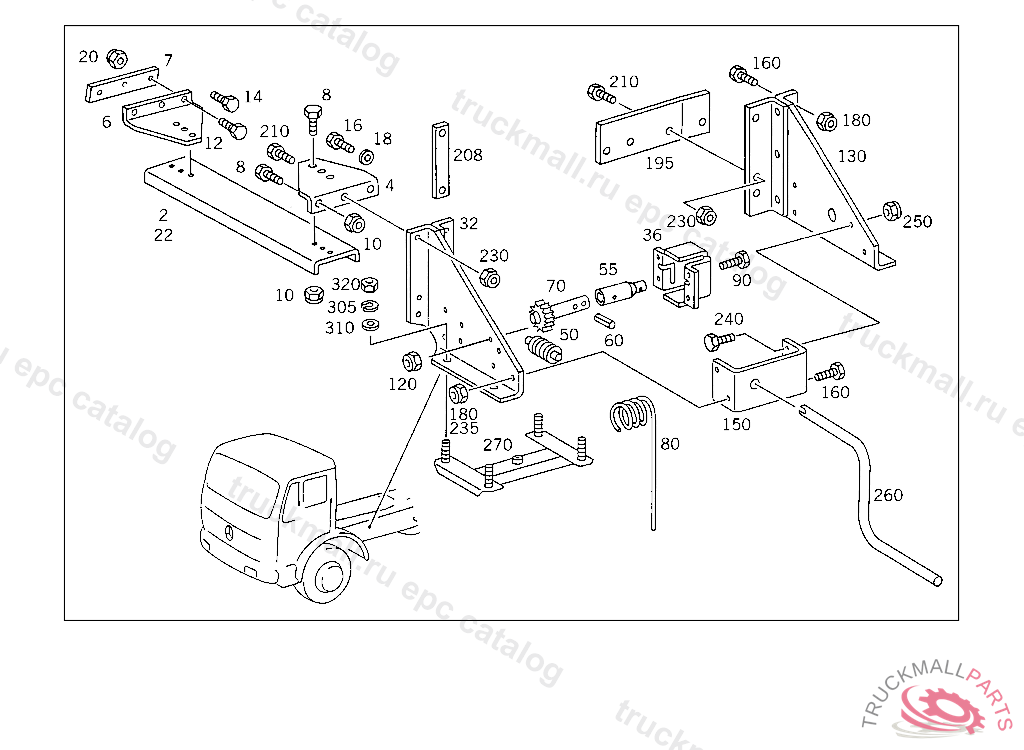

Поз.
Артикул
Описание
2
CROSS MEMBER GUSSET PLATE TO CROSS MEMBER
2
CROSS MEMBER CROSS MEMBER TO GUSSET PLATE
4
GUSSET PLATE LEFT AND RIGHT CONSOLES TO FRAME
6
GUSSET PLATE GUSSET PLATE TO FRAME,RIGHT
6
GUSSET PLATE GUSSET PLATE TO FRAME,RIGHT
7
PLATE BRACKET TO FRAME
7
PLATE BRACKET TO FRAME
7
PLATE BRACKET TO FRAME
7
PLATE RIGHT,AT FRAME
8
SCREW FRONT SPRING REAR BRACKET TO CROSS MEMBER
10
NUT BRACKET TO SIDE MEMBER
10
NUT , Replaced By: N910113014001
12
SCREW BRACKET TO SIDE MEMBER
12
SCREW , Replaced By: N000961014064
14
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
14
SCREW BRACKET TO CAB CONSOLE,K 035197
14
SCREW BRACKET TO CAB CONSOLE,K 035197
16
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
16
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
16
SCREW , Replaced By: N308676014020
18
WASHER SPARE WHEEL CARRIER
20
NUT BRACKET TO SIDE MEMBER
20
NUT , Replaced By: N910113014001
22
CROSS MEMBER LEFT AND RIGHT CONSOLES TO FRAME
32
BRACKET LEFT
32
BRACKET SPARE WHEEL MOUNTING,5 962476
32
BRACKET LEFT
32
BRACKET LEFT
32
BRACKET SPARE WHEEL MOUNTING,5 962476
32
BRACKET LEFT
32
BRACKET LEFT
32
CONSOLE SPARE WHEEL MOUNTING,LEFT,K 038556
32
BRACKET LEFT
32
CONSOLE SPARE WHEEL MOUNTING,LEFT,K 038556
32
CONSOLE SPARE WHEEL MOUNTING,LEFT
32
BRACKET LEFT
36
BEARING BRACKET AT BRACKET
50
WORM
55
SPACER CRANK TO WORM
60
CLAMPING SLEEVE CRANK TO BUSHING
70
STOP GEAR SPARE WHEEL CARRIER,5 127460
70
STOP GEAR SPARE WHEEL CARRIER,5 127460
80
WIRE CABLE. ROPE , ORDER BY THE METER, Replaced By: N083334008000
80
WIRE CABLE
90
SCREW CONSOLE TO SIDE MEMBER
90
SCREW END PIECE TO EXHAUST PIPE M 10X25
90
SCREW END PIECE TO EXHAUST PIPE M 10X25
90
SCREW REAR EXHAUST PIPE TO MUFFLER
90
SCREW REAR EXHAUST PIPE TO MUFFLER
120
NUT SUPPORT TO SIDE MEMBER
120
NUT STRAP TO BRACKET
120
NUT , Replaced By: N910113010000
130
BRACKET SPARE WHEEL MOUNTING,LEFT,5 962476
130
BRACKET RIGHT
130
CONSOLE SPARE WHEEL MOUNTING,RIGHT
130
CONSOLE SPARE WHEEL MOUNTING,RIGHT
130
BRACKET RIGHT
130
BRACKET RIGHT
130
BRACKET SPARE WHEEL MOUNTING,5 962476
130
BRACKET RIGHT
130
CONSOLE SPARE WHEEL MOUNTING,RIGHT,K 038556
130
BRACKET RIGHT
130
BRACKET RIGHT
150
BRACKET SPARE WHEEL CARRIER
150
BRACKET AT BRACKET
160
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
160
SCREW AIR CLEANER SUPPORT TO SIDE MEMBER, REAR
160
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
160
SCREW , Replaced By: N308676012026
160
SCREW CONSOLE TO SIDE MEMBER
180
NUT SUPPORT TO SIDE MEMBER
180
NUT SUPPORT TO SIDE MEMBER
195
PLATE LEFT AND RIGHT CONSOLES TO FRAME
195
PLATE BRACKET TO FRAME
208
SHIM BRACKET TO FRAME
208
BASE BRACKET TO FRAME
210
SCREW BRACKET TO REAR SPRING SADDLE COUNTER PLATE
210
SCREW BRACKET TO REAR SPRING SADDLE COUNTER PLATE
210
SCREW BRACKET TO SIDE MEMBER
210
SCREW , Replaced By: N000961014064
210
SCREW LEFT AND RIGHT CONSOLES TO FRAME M 14X60
210
SCREW LEFT AND RIGHT CONSOLES TO FRAME M 14X60
210
SCREW BRACKET TO SIDE MEMBER
210
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
210
SCREW AT CROSS MEMBER
210
SCREW BRACKET TO CAB CONSOLE,K 035197
210
SCREW BRACKET TO CAB CONSOLE,K 035197
230
NUT BRACKET TO SIDE MEMBER
230
NUT , Replaced By: N910113014001
235
NUT SUPPORT TO SIDE MEMBER
240
SCREW CONSOLE TO SIDE MEMBER
240
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
240
SCREW , Replaced By: N308676012026
250
NUT SUPPORT TO SIDE MEMBER
260
CRANK SPARE WHEEL HOIST 340MM
260
CRANK SPARE WHEEL HOIST 340MM
260
CRANK , Replaced By: A6504030045
270
BRACKET SPARE WHEEL
305
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
310
WASHER STRUT TO EXHAUST PIPE AND TO SIDE MEMBER
310
WASHER , Replaced By: N000125015019
320
NUT BRACKET TO SIDE MEMBER,K 035196
320
NUT , Replaced By: N308673014001
999
ANGLE AIR RESERVOIR
