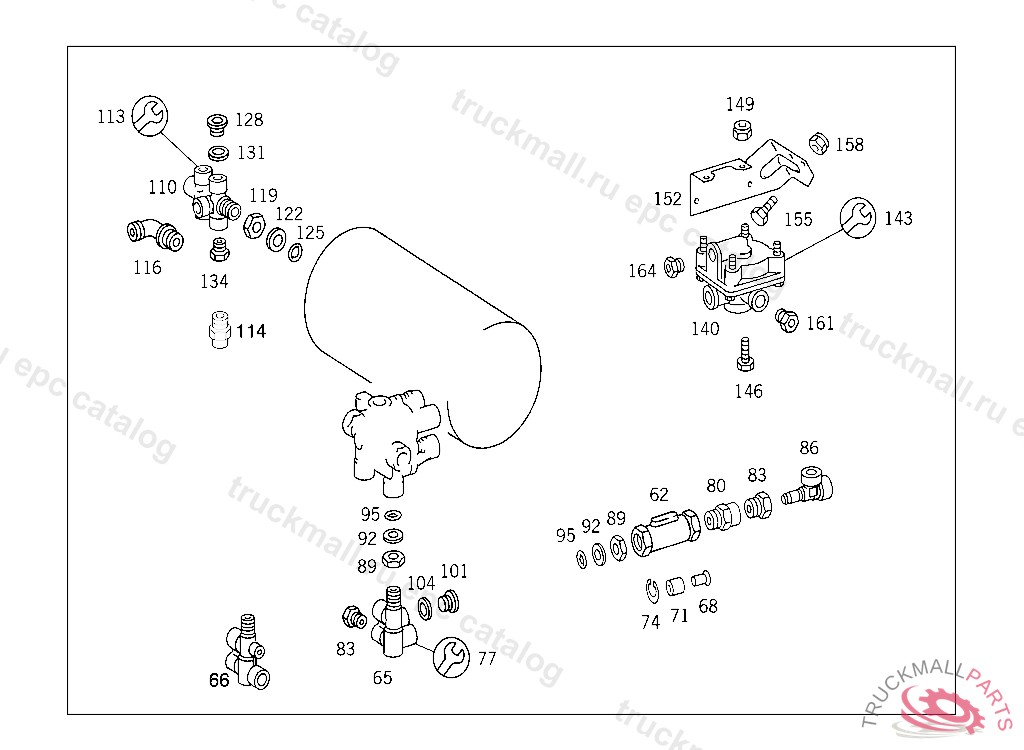

Поз.
Артикул
Описание
62
NON-RETURN VALVE. VALVE WITH CHECK VALVE WABCO,5 433388
65
VALVE (CHECK VALVE),EPS & CLUTCH BOOSTER
66
T-FITTING WITH CHECK VALVE,K 169316
68
VALVE SEAT RINGWABCO,5 433388
71
BUSHINGWABCO,5 433388
74
LOCK RINGWABCO,5 433388
77
REPAIR KIT CHECK VALVE VOSS
80
FITTING LINE CONNECTION
83
SCREW. UNION SCREW LINE CONNECTION
86
T-FITTING BRAKE POWER REGULATOR,CONNECTION: "10",TO M 22, VOSS 232
86
T-FITTING BRAKE POWER REGULATOR,CONNECTION: "10", Replaced By: A0049971689, +001A0009974834
89
NUT CHECK VALVE TO AIR RESERVOIR
92
THRUST RING CHECK VALVE TO AIR RESERVOIR
92
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
95
O-RING CHECK VALVE TO AIR RESERVOIR
101
SCREW PLUG , Replaced By: N000908012009
101
SCREW PLUG, FILLING. SCREW PLUG 3/2-WAY VALVE,CONNECTION: "10"
104
SEAL RING LINE CONNECTION
110
DISTRIBUTOR WITH CHECK VALVE
113
REPAIR KIT CHECK VALVE VOSS
114
FITTING LINE CONNECTION
119
NUT CHECK VALVE TO AIR RESERVOIR
122
THRUST RING CHECK VALVE TO AIR RESERVOIR
122
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
125
O-RING CHECK VALVE TO AIR RESERVOIR
128
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "21"
128
SCREW PLUG , Replaced By: N000908022011
131
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
134
SCREW. UNION SCREW LINE CONNECTION
140
VALVE FRONT AXLE II RELAY VALVE "WABCO"
140
VALVE FRONT AXLE II RELAY VALVE "GRAU", NOT USED
140
VALVE (RELAY VALVE) WABCO, REPAIR IMPOSSIBLE
140
VALVE FRONT AXLE II RELAY VALVE "BOSCH"
140
VALVE , Replaced By: A0044293844
140
VALVE (RELAY VALVE) BOSCH, REPAIR IMPOSSIBLE
143
REPAIR KIT RELAY VALVE "GRAU"
143
REPAIR KIT RELAY VALVE TO 004 429 38 44,WABCO
143
REPAIR KIT RELAY VALVE TO 003 429 93 44,WABCO
143
REPAIR KIT RELAY VALVE BOSCH
146
SCREW SUPPORT TO FENDER
146
SCREW , Replaced By: N304017008018
149
NUT , Replaced By: N913004008001
149
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
149
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
152
BRACKET RELAY VALVE,5 559704
155
SCREW EXHAUST PIPE TO BRACKET
158
NUT , Replaced By: N910113010000
158
NUT STRAP TO BRACKET
161
SCREW. UNION SCREW LINE CONNECTION
164
SCREW. UNION SCREW , Replaced By: A0009973734
164
SCREW. UNION SCREW LINE CONNECTION
