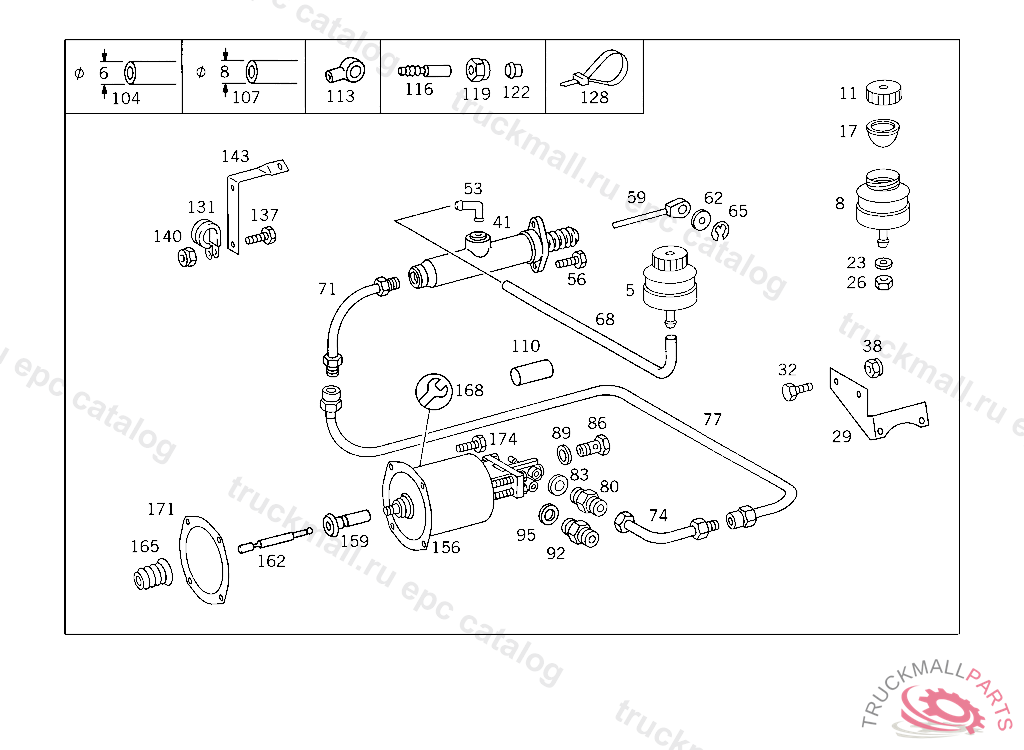

Поз.
Артикул
Описание
5
RESERVOIR (RESERVOIR)
8
RESERVOIR WITH LOCKING CAP
11
FILLER CAP
17
STRAINER
23
WASHER
26
NUT CONTROL ARM TO REAR AXLE
29
BRACKET (RESERVOIR)
32
SCREWM 6X12
38
NUT PUMP TO BRACKET
41
MASTER CYLINDERM12X1
41
MASTER CYLINDER , Replaced By: A3882957106
53
INTERMEDIATE PIECE , Replaced By: A0002950036
56
SCREW
59
ROD , Replaced By: A6882907039
59
ROD (PISTON ROD)
62
WASHER BRACKET TO FENDER BRACKET
65
LOCK PLATE
68
HOSE MASTER CYLINDER,OIL TANK,HYDRAULIC LINES
71
LINE FROM CLUTCH MASTER CYLINDER TO CLUTCH HOSE "2.045X 6 MM"
74
LINE HYDRAULIC HOSE TOWARDS CLUTCH BOOSTER "0.625X0.6 MM",B 988951
77
HOSE FROM HYDRAULIC HOSE TO CLUTCH SLAVE CYLINDER
80
FITTING DOUBLE FITTING,012797
83
SEAL RING INJECTION PUMP
86
HOLLOW SCREW COMPRESSED AIR LINE TO OPERATING CYLINDER
89
SEAL RING PRESSURE REGULATOR,CONNECTION: "23",5 161701
92
FITTING RELAY VALVE,CONNECTION: "40",5 359430
95
SEAL RINGTO 006 997 00 72
104
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
107
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
110
INSULATING HOSE
110
INSULATING HOSE COLOR CODE BLUE 2X0,01 MM
110
INSULATING HOSE RED, ORDER BY THE METER
113
BANJO UNION HOSE WIDTH, / I.D., 6/16 MM
113
BANJO UNION HOSE WIDTH, / I.D., 4/12 MM
113
BANJO UNION HOSE WIDTH, / I.D., 6/12 MM
116
FITTING , Replaced By: N915062006000
116
SLEEVE LINE CONNECTION
119
UNION NUT LINE CONNECTION
122
GLAND LINE CONNECTION
128
LOOM TIE ELECTRIC CABLE MOUNTING
128
LOOM TIE , Replaced By: A3459977390
131
CLAMP SENSOR CABLE TO FRONT AXLE
137
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
137
SCREW BATTERY POS. CABLE TO BRACKET,PB004444
140
NUT PUMP TO BRACKET
143
BRACKET AT TRANSMISSION CASE
156
SLAVE CYLINDER CLUTCH ACTUATION
159
PISTONTO A 000 295 21 18
162
RODTO A 000 295 21 18
165
BOOT ,5 962906
168
REPAIR KIT PARTS KIT
168
REPAIR KIT MINOR
171
GASKET CLUTCH BOOSTER TO BELL HOUSING,RB012797
174
SCREW SWITCH TO BRACKET 8X16
999
999
REPAIR KIT MASTER CYLINDER TO 001 295 59 06
