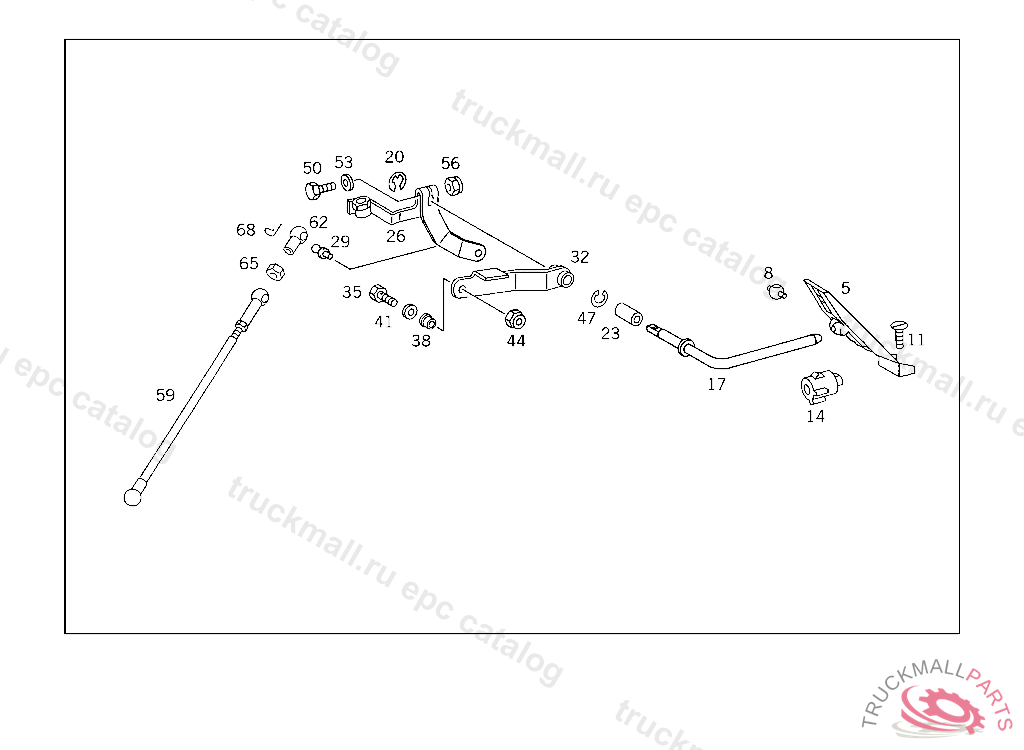

Mercedes A3093010022 - ШАРНИР
LS 1935 660.064
30 CONTROL - 060 ACCELERATOR PEDAL CONTROL
Поз.
Артикул
Описание
5
A3843007004
ACCELERATOR PEDAL
5
A6733000004
ACCELERATOR PEDAL
8
A3093010022
JOINT
11
N000963006010
SCREW ACCELERATOR PEDAL TO FLOOR PLATE
14
A1263010141
STOP FULL THROTTLE
17
A3763007325
LEVER (PEDAL LEVER)
20
N006799009002
LOCK PLATE
23
A3863017050
BUSHING ,B 892893
26
A3763007625
LEVER (CONTROL LEVER)
29
N071803010205
BALL PIVOT INTERMEDIATE LEVER
32
A3763007117
LEVER (CONTROL LEVER)
35
A3453020171
SCREW WIRE CABLE TO LEVER
38
A3453020050
BUSHING WIRE CABLE TO LEVER
41
A3449907440
WASHER WIRE CABLE TO LEVER
44
N913004006001
NUT PUMP TO BRACKET
47
N900055010403
LOCK RING. RETAINING RING ACCELERATOR PEDAL TO LEVER
50
N000931006197
SCREW BRACKET TO FRAME
53
N000125006420
WASHER PLUG SOCKET TO BRACKET
56
N913004006001
NUT PUMP TO BRACKET
59
A3863008215
62
A0009912422
BALL SOCKET PULL ROD TO LEVER
65
N000934006006
NUT
68
N071805010402
SECURING CLIP. CIRCLIP ACCELERATOR CONTROL
