Mercedes N000934006013 - ГАЙКА-MUTTER

LI (LONG W/B) 661.273

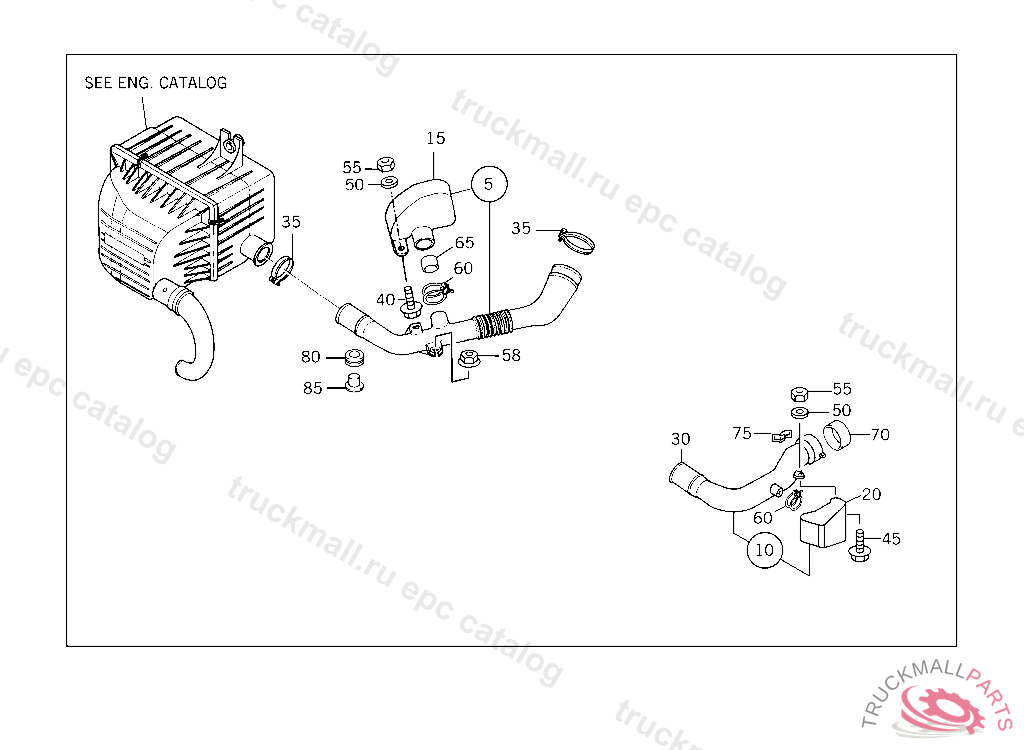

52 CHASSIS SHEET METAL - 120 AIR INTAKE

Поз.
Артикул
Описание
10
A6615203401
AIR INTAKE PIPE
10
A6615203501
AIR INTAKE PIPE
20
A6615283614
MUFFLER
20
A6615283514
MUFFLER
30
A6615284608
AIR INTAKE PIPE
30
A6615284708
AIR INTAKE PIPE
35
N916018060000
CLAMP FROM ENGINE TO TRANSMISSION
40
N914001006006
COMBINATION BOLTM 98274-0616D
45
N914001006025
COMBINATION BOLTM 98264-06401 M 6X40
50
N000125006421
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
55
N000934006013
NUT CYLINDER TO BRACKET TO0002902112
58
N913017006001
NUT CONTROL UNIT TO BRACKET M 92884-0600D
60
N916018040000
CLAMPM 94610-54001 40 - 60MM
65
A6615283385
RUBBER MOUNTING
70
A6615283585
RUBBER MOUNTING
75
A6615283164
FASTENER , Replaced By: A6615283264
75
A6615283264
FASTENER
80
A6615283285
RUBBER MOUNTING
85
A6615283350
BUSHING
