Mercedes N304017008021 - АВТОЗАПЧАСТЬ

300 SD USA 126.120 TO 09/85

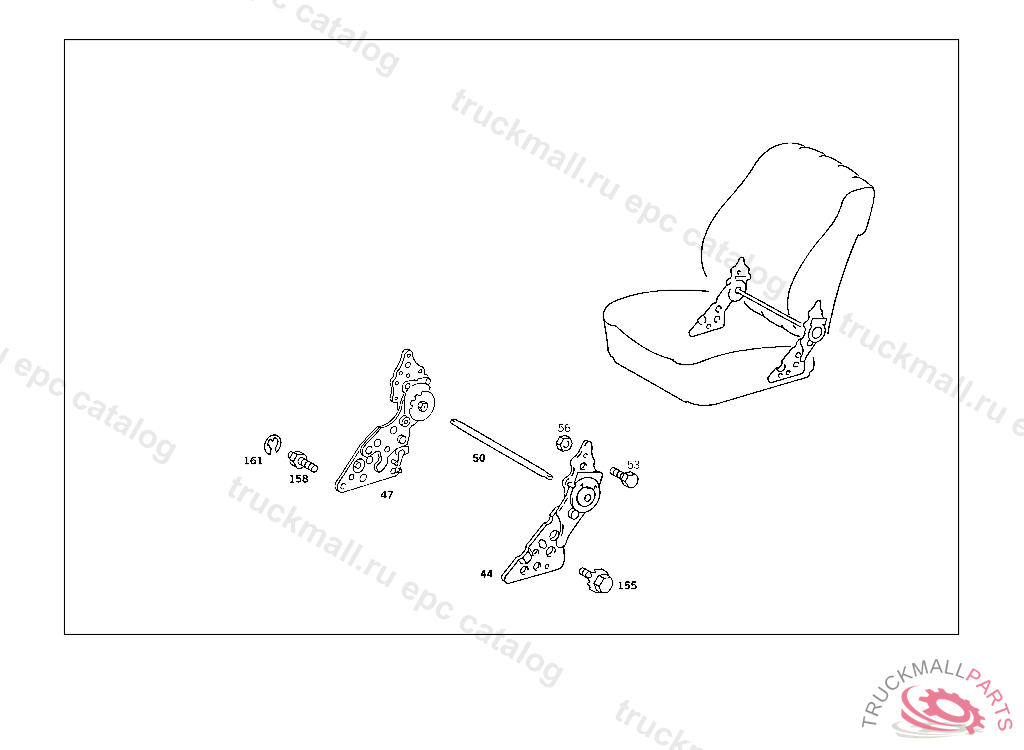

91 FRONT SEATS - 030 FRONT SEAT,LUGGAGE NET,AND HEADREST IL. 2

Поз.
Артикул
Описание
44
A0019100586
BACKREST ADJUSTER RIGHT SEAT, LEFT
47
A1269100985
BACKREST ADJUSTER RIGHT,A 311858
47
A0019100085
BACKREST ADJUSTER , ORDER ADDITIONALLY UP TO CHASSIS,SEE FOOTN. 5 ,1 BRACKET ADJUSTER 001 910 05 86A 311857, Replaced By: A1269100985, +001A1269180125, +001N910001004107
50
A1269180227
LINK BACKREST ADJUSTER
53
N000933008147
SCREW , Replaced By: N304017008021
53
N304017008021
SCREW PIPE CLAMP
56
N000934008010
NUT , Replaced By: N304032008006
56
N304032008006
NUT
155
A2019900422
SCREW HORN TO BRACKET
158
A1269900122
SCREW BACKREST TO SEAT FRAME
161
A1268680190
CATCH BACKREST TO SEAT FRAME
999
A1269100934
BACKREST FRAME WITH SPRING CORE AND ELECTRIC MOTOR
