Mercedes N071805013203 - Втулка

O 400 RSD BUGGY 664.239

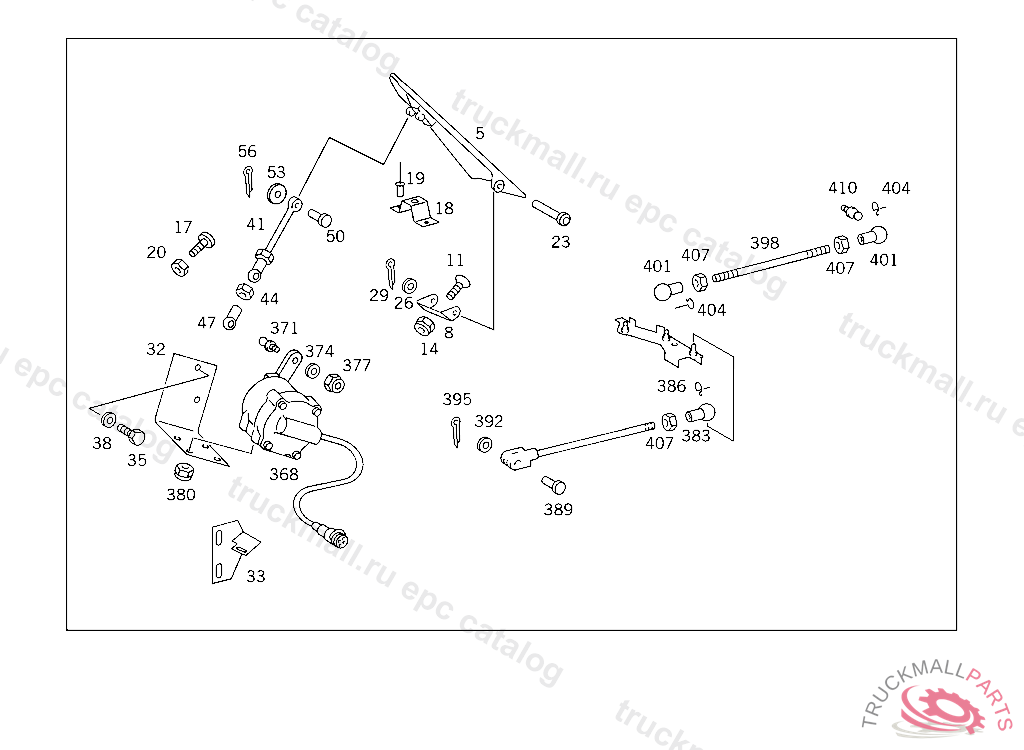

30 CONTROL - 060 ACCELERATOR PEDAL CONTROL IL. 1

Поз.
Артикул
Описание
5
A3073010002
PEDAL PLATE ACCELERATOR PEDAL
8
A3013010305
ARTICULATION PIECE ACCELERATOR PEDAL
11
N000963008000
SCREW ARTICULATION ELEMENT TO FLOOR M8X20,D 209703
14
N913004008001
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
23
N001434010120
PIN ACCELERATOR PEDAL TO JOINT
26
N000125010517
WASHER GROUND CABLE
29
N000094003202
COTTER PIN STRAP TO BRACKET
41
A3073000215
ROD ACCELERATOR PEDAL
44
N000934008008
NUT BATTERY CASE
47
N071805013203
BALL SOCKET ROD TO BALL PIVOT
50
N001434006099
PIN ROD TO PEDAL PLATE
53
N009021006104
WASHER6,4
56
N000094001610
COTTER PIN ROLLER TO LEVER
999
A6642900010
